- Description
Details

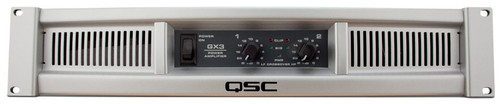

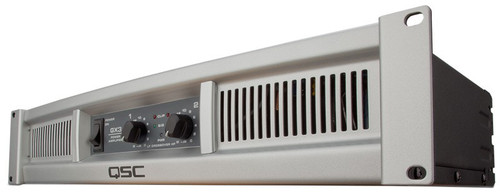

QSC GX3 2-Channel 300W Per Channel 8 Ohm Stereo Power Amplifier
The GX3 power amplifier is ideal for professional entertainers who require maximum performance and portability on a limited budget. The hallmarks of the QSC brand - professional audio quality, meticulous engineering, precision manufacturing and long-term reliability - are all intrinsic to GX. Add contemporary styling, multiple input/output options, light weight, and advanced protection circuitry, and the GX Series clearly represents real value - something everyone can use.
GX amplifiers deliver just the right amount of power to the most popular speakers used by entertainers. Typically, loudspeaker manufacturers recommend an amplifier with power output equal to the speaker's Program (Music) Power rating or two times (2 x) the Continuous (RMS) Power rating.
The QSC GX3 Power Amplifier uses the latest evolution of the QSC Grounded Collector output system, for optimum cooling of the critical power transistors. A true Class B biasing system combines maximum thermal efficiency with excellent audio performance. It is ideal for speakers in the 300W range.
- Features
Features
- Power levels matched to the most popular speakers used by entertainers
- Optimized for maximum real-world headroom into 4 ohm and 8 ohm speaker systems
- Inputs: XLR, 1/4" TRS and phono input connectors for compatibility with any source
- Outputs: Speakon® combo accepts, 1/4" (TS) plugs or Speakon 2-pole and 4-pole plugs (connects 2 poles only)
- Binding posts support all other speaker wiring systems.
- Minimum depth chassis 10.1" (257 mm) fits in compact, inexpensive effects racks
- Detented gain controls for precise setting and matching of sensitivity
- GuardRail™ automatically protects the amplifier and loudspeakers from damage due to temperature rise
- Front panel LEDs monitor Power, Signal and Clipping
- Subwoofer/Satellite crossover built-in
- Specification
8 Ohms / 1 kHz (both channels driven) 300 W 8 Ohms / 1 kHz (single channels driven) 350 W 4 Ohms / 1 kHz (both channels driven) 425 W 4 Ohms / 1 kHz (single channels driven) 500 W Distortion (typical) 20 Hz - 20 kHz, 1 dB below rated power 8 ohms: less than 0.05% 4 ohms: less than 0.1% Signal to Noise (20 Hz - 20 kHz) 100 dB Input Sensitivity 1.2 Vrms Voltage Gain (8 Ohms) 32.2 dB Output Circuitry Class B Power Requirements (1/8 power, pink noise at 4 ohms, 120V) 6.3A Frequency Response 20 Hz - 20 kHz, +0, 1 dB Dynamic Headroom (4 Ohms) 2 dB Input Impedance (Ohms) Greater than 20k (balanced) Maximum Input Level +24 dB (16 Vrms) Input Connectors (each Channel) 3-pin XLR and 1/4" TRS, balanced, parallel Phono, unbalanced Output Connectors (each Channel) Speakon®, 1/4", Binding Posts Amplifier and Load Protection Short circuit, open circuit, thermal, RF protection Load protected against DC faults Front Panel Controls and Indicators Gain controls, 21 detents
Red Clip LEDs, proportional, 0.1% THD threshold
Green Signal LEDs, threshold -35 dB
Blue Power LED, AC onRear Panel Controls Full Range / Crossover switch 100 Hz, 3rd order LP (sub), 2nd order HP (top) Dimensions (H x W x D) 3.5" (89 mm) x 19" (483 mm) x 10.1" (257 mm) Net Weight 25 lbs (11.5 kg) Shipping Weight 30 lbs (13.5 kg) - Documents
Documents
- Reviews
Customer Reviews 1 item(s)
- Legit piece of audio equip
- Took about ten minutes of talking with the sales engineer to figure out what I needed to fix old audio equipment in one of our business buildings. He was very informative and knowledgeable, didnt misinform me or try to sell me other bs that I didnt need. 5/5 will recommend this product and company for a spot on job at selling quality over quantity.
Write Your Own Review
