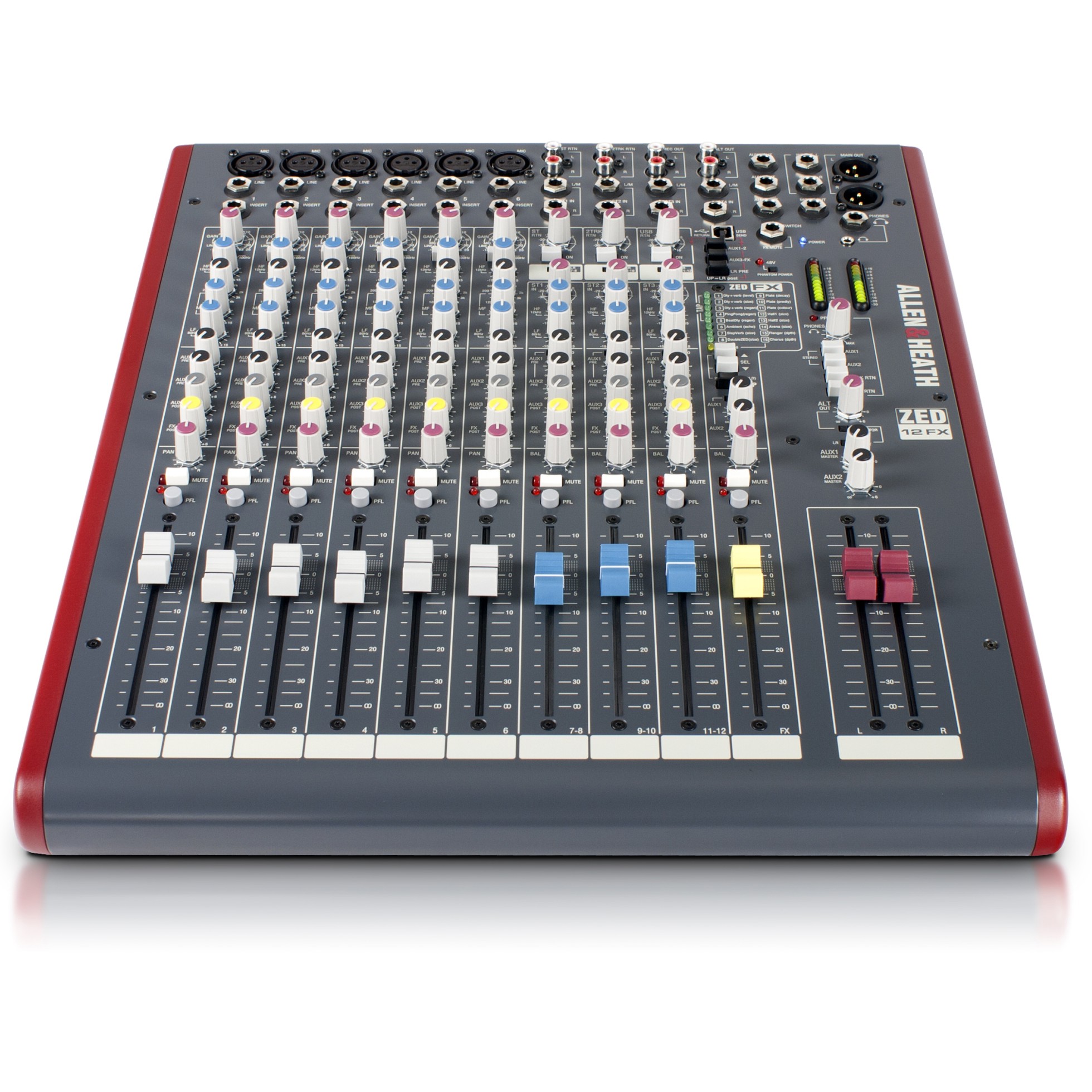

Allen & Heath ZED-12FX 12-Channel Multi-Purpose Mixer with FX
Part # ZED12FX
Model # ZED-12FX

The ZED-12FX is ideal for groups who need to travel light. Even with its small footprint, the 12FX squeezes in 4 auxiliary channels and swept semi-parametric EQ on top of the already impressive feature set including configurable USB audio in/out makes it easy to capture stereo recordings.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Allen & Heath ZED-12FX is ideal for groups who need to travel light. Even with its small footprint, the 12FX squeezes in 4 auxiliary channels and swept semi-parametric EQ on top of the already impressive feature set including configurable USB audio in/out makes it easy to capture stereo recordings.

ZED-12FX features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.

ZED-12FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point – this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. There is one-stop navigation and editing – in fact, it’s just as easy as using effects pedals. To alter effects parameters, the TAP button is held down and the up/down buttons pressed to adjust the specific parameter for that effect, for example, the decay length on PLATE, or the depth on CHORUS.

Features

Features

  • 6 Mic / Line Inputs with separate XLR and TRS jack sockets
  • 2 Stereo Inputs with TRS jack sockets
  • 4 Aux Sends
  • Lo-cut filter for cleaning up unwanted low frequency noise
  • 3 band EQ with Swept Mid for easy creative and corrective tonal shaping
  • 2 in, 2 out USB Audio Interface
  • 100mm Pro Taper Faders
  • 24 bit effects engine with 16 presets
  • Modular construction with nutted Pots
  • Internal Switch Mode PSU
Specification
ModelZED-12FX
Product TypeRecording Mixer
Operating Level InputsSpecifications
Mono channel (XLR) Input+6 to –63dBu for nominal (+17dBu in max)
Mono channel Line Input (Jack socket)+10 to –26dBu (+30dBu maximum)
Insert point (TRS Jack socket)0dBu nominal +21dBu maximum
Stereo Input (Jack sockets)0dBu nominal (control = Off to +10dB)
Stereo input (phono sockets)0dBu nominal (control = Off to +10dB)
Operating Level OutputsSpecifications
L, R & Mono Outputs (L&R XLR, Mono Jack)0dBu nominal. +21dBu maximum
Aux Outputs (Jack sockets)0dBu nominal. +21dBu maximum
Alt Outputs (phono sockets)0dBu nominal. +21dBu maximum.
Rec Outputs (phono sockets)0dBu nominal. +21dBu maximum.
Frequency ResponseSpecifications
Mic in to Mix L/R Out, 30dB gain+0.5/-1dB 20Hz to 20kHz.
Line in to Mix L/R out 0dB gain+0.5/-1dB 10Hz to 30kHz
Stereo in to Mix L/R out+0.5/-1dB 10Hz to 30kHz
THD+nSpecifications
Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out0.004%
Mic in to Mix L/R Out, 30dB gain 1kHz0.014%
Line in to Mix L/R out 0dB gain 0dBu 1kHz0.005%
Stereo in to Mix L/R out 0dB gain +10dBu 1kHz0.003%
HeadroomSpecifications
Analogue Headroom from nominal (0Vu)21dB
USB in & out headroom from nominal (0Vu)14dB
USB Audio CODEC (Coder/Decoder)Specifications
USB Audio In/OutUSB 1.1 compliant 16bit
Sample Rate32, 44.1, or 48kHz
NoiseSpecifications
Mic Pre EIN @ max gain 150R input Z 22-22kHz-127dBu
Mix L/R out, L/R faders = 0, 22-22kHz-88dBu
Weight (Unpacked)14.3 lbs
Weight (Packed)23.0 lbs
