This JBL Professional restaurant sound system is ideal for large coverage areas and can be expanded beyond that for further coverage and control over separate zones and paging.

The JBL 8138 is an 8" ceiling speaker designed for use with a pre-install in-ceiling backcan, resulting in high-fidelity performance at a cost effective price point. The 8138 is ideal for a wide variety of commercial sound applications from restaurant and retail to professional offices and reception areas. The built-in 6W transformer allows use on 70V or 100V distributed speaker lines. High sensitivity of 97dB delivers maximum sound levels using minimal amplifier power, allowing the use of smaller power amplifiers compared to when using lower sensitivity drivers. The driver features a 25 mm (1") voicecoil with Kapton coil former for reliability. The treated cloth surround provides deeper bass response compared with typical paper-roll surrounds, for fuller sound quality. The 8138 fits the MTC-81BB8 backcan and MTC-81TB8 tile bridge, or can be used with most in-ceiling backcan/tile bridge systems designed with four mounting points on a 286 mm (11.25") diameter mounting circle. With its contemporary grill design, the 8138 provides a stylish upscale look that fits into many decórs. The 8138 brings style and performance to basic commercial sound systems.

The JBL CSS-1S/T has a rugged enclosure fitted with an included, easy-to-install ball-type wall-mount bracket that can pivot to aim the speaker in a variety of directions, or can be aimed straight out from the wall. The flat bottom surface of the cabinet allows the speaker to be set on a surface such as a shelf. A multi-tap, multi-voltage transformer provides taps of 10 and 5 Watts when driven from a 100V distributed speaker line and 10, 5 and 2.5 Watts when driven from a 70V distributed speaker line. Tap selection is accomplished via a switch that is accessed from the back panel. The speaker has a power handling of 60 Watts continuous average pink noise (100 hrs continuously) when set in its 8 Ohm Direct setting.

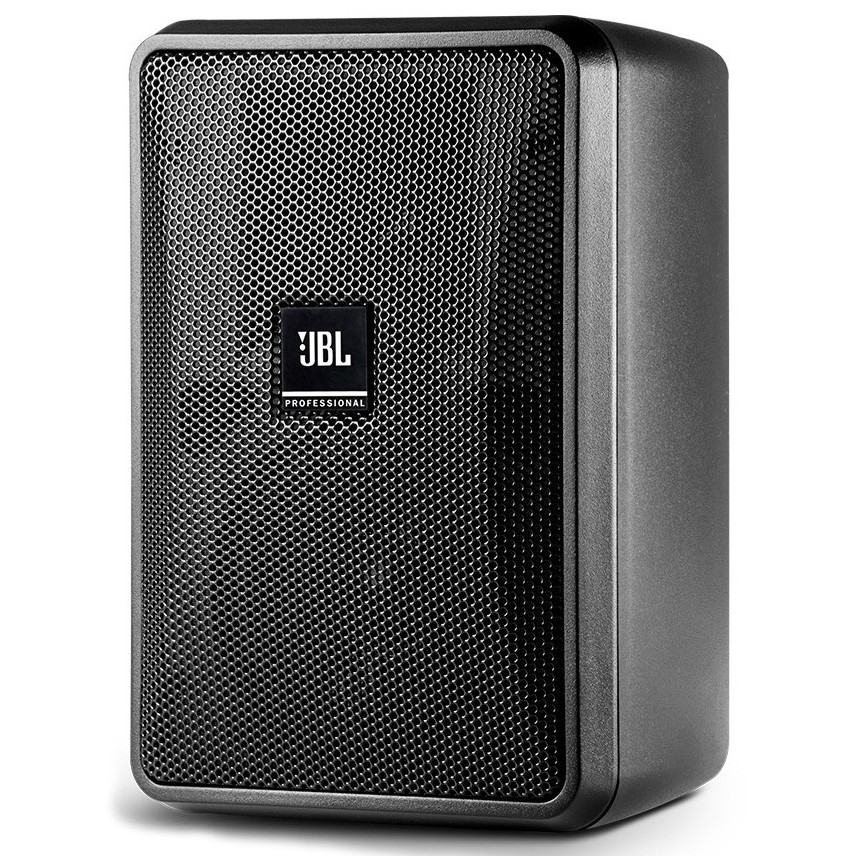

The JBL Control® 23-1 is a two-way 3” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 23-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.

The JBL CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown’s DriveCore technology enables significantly reduced size and weight – all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.

The JBL CSR-V can use analog DC voltage to provide logic control ranging from source selection and volume. Wired with Cat 5 cable with universally accepted RJ-45 connectors up to 1000 feet (305 m) length, the CSR series remote controls allow you to remotely select the source and/or control the volume on the CSM mixer. Using CSR-V remote control with your CSM mixer, you can remotely control the volume of the source selected by the mixer.

JBL 8138 In-Ceiling Speakers:

• Stylish, contemporary appearance enhances any decor
• Clear sound from an 8 inch dualcone full-range driver
• Very high sensitivity of 97 dB for maximum sound levels using minimum amplifier power
• 6W transformer for use on 70V/100V distributed speaker lines
• Installs to in-ceiling backboxes having 4 mounting points on an 11.25" (286 mm) diameter mounting circle
• For use with MTC-81BB8 backcan and MTC-81TB8 tile bridge



JBL CSS-1S/T Wall Mount Speakers:

• 10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines
• 8 Ohm Direct Setting
• Included Wall-Mounting Bracket
• Professional Drivers and Network



JBL Control 23-1 Indoor/Outdoor Speakers:

• 3” woofer with woven fiberglass cone
• 1/2” PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall® mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100° x 100° coverage
• 50 Watt power handling (100 Watt program) in direct 8Ω setting, plus built-in 15 Watt 70V/100V multi-tap transformer
• High fidelity sound character with broad frequency response of 70 Hz – 20 kHz

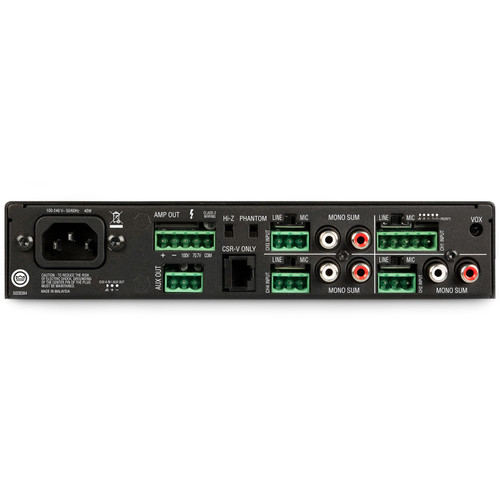

JBL CSMA 180 Mixer Amplifier:

• 4 inputs with 1 output of 80 or 120-watts of power
• Ideal for commercial and industrial use
• Fanless, space-saving 1U design
• Sleek industrial look with illuminated rings, making them easy to see and operate
• Euro-block type mic/line input connectors and output connectors
• Independent Bass and Treble controls for each output channel
• Supports 70V and 100V distributed audio systems without the need for a separate transformer
• Remote volume control capability using JBL CSR-V module and standard Ethernet cable
• Priority muting
• Configurable output routing
• Utilizes Crown’s DriveCoreTM technology providing excellent audio performance with high efficiency
• Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
• Includes rack mounting kit
• Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
• Energy Star® Certified



JBL CSR-V Remote Volume Control:

• Equipped with RJ-45 connectors
• Connects to a CSM mixer via Category 5 cable, over a maximum distance of 1000 feet
• Available in colors Black or White

• (12) JBL 8138 In-Ceiling Speakers
• (2) JBL CSS-1S/T Wall Mount Speakers
• (2) JBL Control 23-1 Indoor/Outdoor Speakers
• (1) JBL CSMA 180 Mixer Amplifier
• (1) JBL CSR-V Remote Volume Control
• (12) JBL MTC-81TB8 Tile Bridges
• (400') West Penn Wire 224 Speaker Wire
