Restaurant Sound System with 4 Atlas Sound SM42T Wall Mount Loudspeakers and Mixer Amplifier
Part # RSSS-4SM42TAA50PHD
Model # RSSS-4SM42TAA50PHD

This Atlas Sound restaurant sound system is ideal for small to medium coverage areas and can be expanded beyond that for further coverage and control over separate zones and paging.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

* Required Fields

Pro Acoustics Price $706.93

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Restaurant Sound System with 4 Atlas Sound SM42T Wall Mount Loudspeakers and Mixer Amplifier

This Atlas Sound restaurant sound system is ideal for small to medium coverage areas and can be expanded beyond that for further coverage and control over separate zones and paging.

Use surface-mount Atlas Sound SM42T Series loudspeaker systems for commercial, professional and residential applications or where high-fidelity sound and weather-resistance is desired. Full-range frequency response makes these systems ideal for indoor and outdoor installation, in monaural and stereo foreground or background music systems, and for applications in boutiques/shops, restaurants/cafes, corporate AV applications and houses of worship. A multi-position, C-shaped mounting bracket and rugged construction provide optimum installation flexibility and assurance of long-term service.

The Atlas Sound AA50PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With one microphone/line input and three stereo line inputs, the AA50PHD will accommodate a variety of input sources including paging microphones, media players, and digital music receivers. The AA50PHD includes a patent pending automatic system test, the Push Here Diagnostic (PHD).

The Atlas Sound WPD-RISRL features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the RIS output on an appropriate AAPHD amplifier, the WPD-RISRL allows for remote selection and volume adjustment of inputs 2, 3, and 4 allowing the rack to remain locked and secured.

Not sure if this is the right Restaurant Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Features

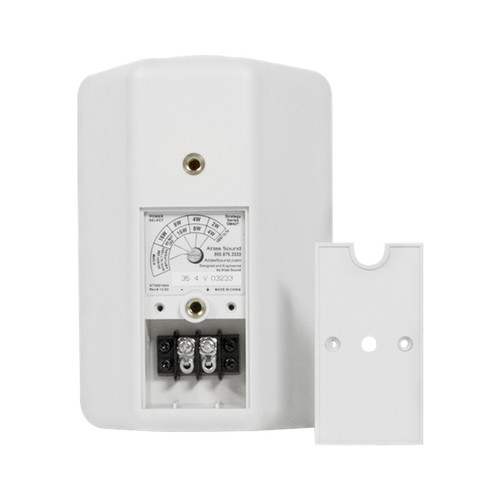

Atlas Sound SM42T Wall Mount Loudspeakers:

  • 1" Ferrofluid Cooled Dome Tweeter & Highly Efficient 4" Polypropylene Woofer
  • All 1/4"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
  • Atlas Sound POLYGUARD High Frequency Protection Circuit
  • Available in Black or White
  • Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
  • Five-Year Warranty
  • Screwdriver Adjustable 16W 70.7V / 100V Transformer (may be bypassed for 8 ohm operation)
  • TRX WAVEGUIDE- Constant Directivity Style High Frequency Wave Guide System
  • Weather-Resistant Construction for Year-round Indoor or Outdoor Use
  • OMNIMOUNT Compatible

Atlas Sound AA50PHD Mixer Amplifier:

  • 50W into 25V / 70.7V and 4Ω Loads
  • Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
  • Contact Closure Mute Terminals
  • Variable Mute Sensitivity Control for Input 1
  • Preamp In for External Processors
  • Line Output
  • Remote Input Select (RIS)
  • Remote Level Control
  • Input Assignable Zone 2 Output
  • Three Unbalanced, Summing Line Level Inputs
  • Balanced Mic/Line/Tel Input w/ Phantom Power
  • Automated Diagnostic System Test (Push Here Diagnostic)

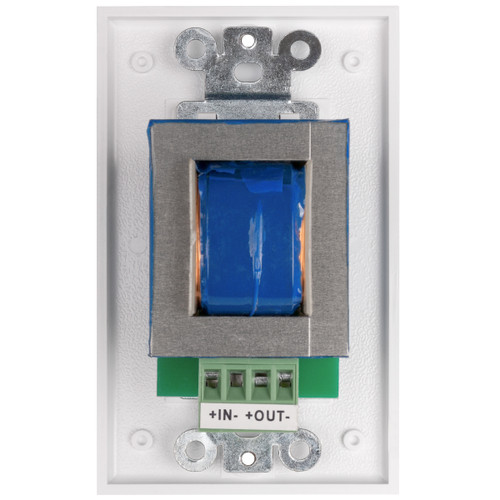

Atlas Sound WPD-RISRL Wall Plate Volume Control:

  • Designed for Remote Input Selection and Volume Adjustment Used with Select AAPHD Amplifiers
  • Input Select Slide Switch
  • Level Control Via On Board 10k Ω Potentiometer
  • System Status Indicator (Red)
  • 8-Conductor Interface Connection
  • Label Guard
System Includes

System Includes

  • (4) Atlas Sound SM42T Wall Mount Loudspeakers
  • (1) Atlas Sound AA50PHD Mixer Amplifier
  • (1) Atlas Sound WPD-RISRL Wall Plate Volume Control
  • (250') West Penn 224 18/2 Non-Plenum Speaker Wire
