Restaurant Sound System with 8 JBL Control 24CT Micro In-Ceiling Loudspeakers and Mixer Amplifier
Part # RSSS-8C24CTMCSMA1120
Model # RSSS-8C24CTMCSMA1120
This JBL Professional restaurant sound system with JBL ceiling mount speakers and an energy-efficient mixer amplifier fills your medium sized restaurant with crisp, clear background music and paging with the ability to control the volume remotely.
Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Inside the Design

This JBL Professional restaurant sound system is ideal for large coverage areas and provides clear background music and paging to your space and enhances the ambiance without restricting customer interaction. The JBL Control 24CT Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems and includes a multitap transformer for use on 70V or 100V line distribution systems. The JBL CSMA 1120 mixer amplifier has 4-channel inputs and one output channel that allows you to connect your personal device, laptop, or cable box/satellite television system to accommodate your audio needs. The unit's front panel volume controls are illuminated so they can be seen and operated in dark environments. Give your staff the ability to control the volume with the included remote volume control without going back and forth to the amplifier.

Sound System Features:

  • Low-profile in-ceiling JBL speakers are quick and easy to install and provides full, high quality sound for background music and music-plus-paging systems
  • Easy to use high-efficiency JBL mixer/amp allows you to make quick adjustments without extensive audio knowledge
  • Inputs available for connecting personal devices (laptop, smartphone, tablet, etc.) or a paging microphone, if desired
  • Connect a paging microphone to activate "ducking" or "priority mic" input, where music is lowered when speaking to ensure customers can hear their name called or announcements made
  • Use the JBL remote wall volume control to adjust the volume of the source selected by the mixer - can be placed up to 1000 ft away
  • Designed as a simple DIY audio solution to install and operate

JBL restaurant sound system

About the System Components

This Pro Acoustics designed restaurant music system includes eight JBL Control 24CT Micro ceiling speakers, a JBL CSMA 1120 mixer amplifier, one JBL CSR-V remote volume control and 500' of 16/2 non-plenum speaker wire.

Not sure if this is the right Restaurant Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Features

JBL Control 24CT Micro Ceiling Speakers:

  • Extremely wide 150° coverage
  • Smooth frequency response
  • 4.5" (115 mm) woofer, injection molded graphite cone with butyl rubber surround
  • 0.5" (12 mm) polycarbonate tweeter for extended response
  • Control 24CT Micro includes 8W multi tap transformer for 70V/100V systems
  • Shallow 4" (100 mm) depth
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

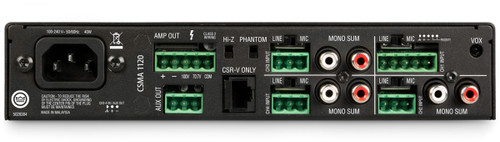

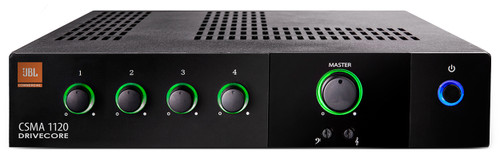

JBL CSMA 1120 4-Channel Mixer Amplifier:

  • 4 inputs with 1 output of 80 or 120-watts of power
  • Ideal for commercial and industrial use
  • Fanless, space-saving 1U design
  • Sleek industrial look with illuminated rings, making them easy to see and operate
  • Euro-block type mic/line input connectors and output connectors
  • Independent Bass and Treble controls for each output channel
  • Supports 70V and 100V distributed audio systems without the need for a separate transformer
  • Remote volume control capability using JBL CSR-V module and standard Ethernet cable
  • Priority muting
  • Configurable output routing
  • Utilizes Crown’s DriveCoreTM technology providing excellent audio performance with high efficiency
  • Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
  • Includes rack mounting kit
  • Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
  • Energy Star® Certified

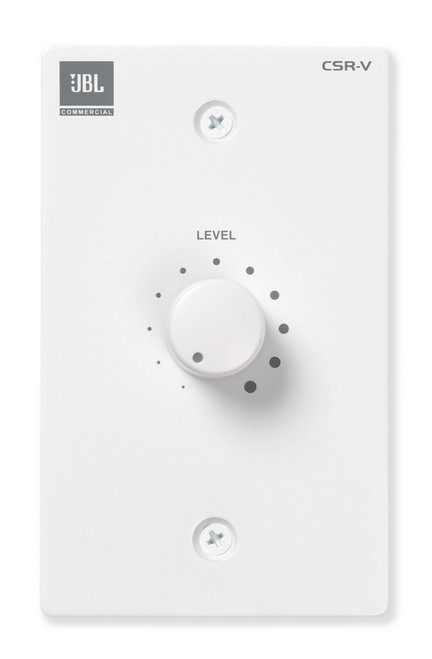

JBL CSR-V Remote Volume Control:

  • Equipped with RJ-45 connectors
  • Connects to a CSM mixer via Category 5 cable, over a maximum distance of 1000 feet
  • Available in Black or White
System Includes

System Includes

  • (8) JBL Control 24CT Micro Ceiling Speakers
  • (1) JBL CSMA 1120 Mixer Amplifier
  • (1) JBL CSR-V Remote Volume Control

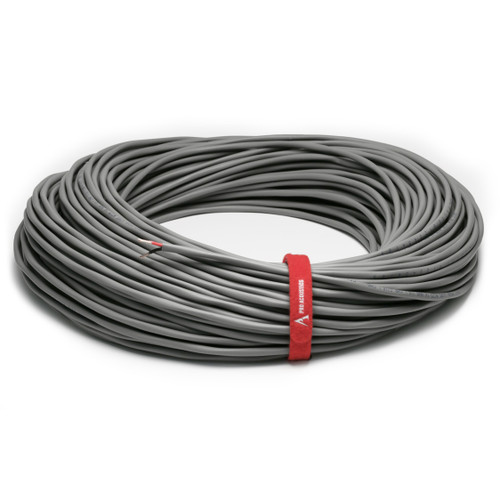

  • (500') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
