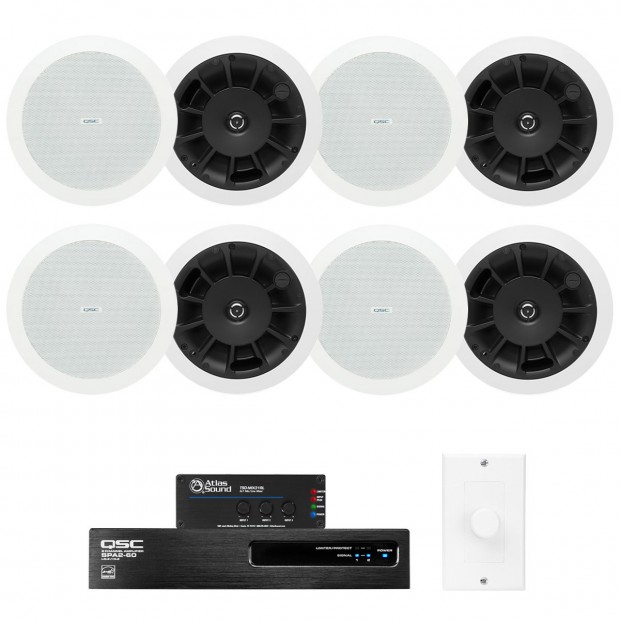

This Medium to Large QSC Restaurant Sound System is perfect when you need background music that will add to your customers’ mealtime enjoyment without interfering with their conversation. This system is ideal for small coverage areas and can be easily expanded for further coverage and control over separate zones and paging.

The QSC AcousticDesign™ AD-C4T is a 4.5" two-way ceiling loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations. The AcousticDesign™ series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in both ceiling or surface applications, the AcousticDesign series allows integrators seamless transitions within blended installations. The AD-C4T features a high quality 4.5" weather treated paper cone woofer with a 1" voice coil and a 1" aluminum dome tweeter which is positioned on a DMT  waveguide in front of the woofer. DMT (Directivity Matched Transition™), is QSC’s design philosophy where the high frequency waveguide is matched to the natural conical behavior of the woofer at the crossover point. The result is a coherent transition between transducers with improved off-axis power response for consistent 150° conical DMT coverage.

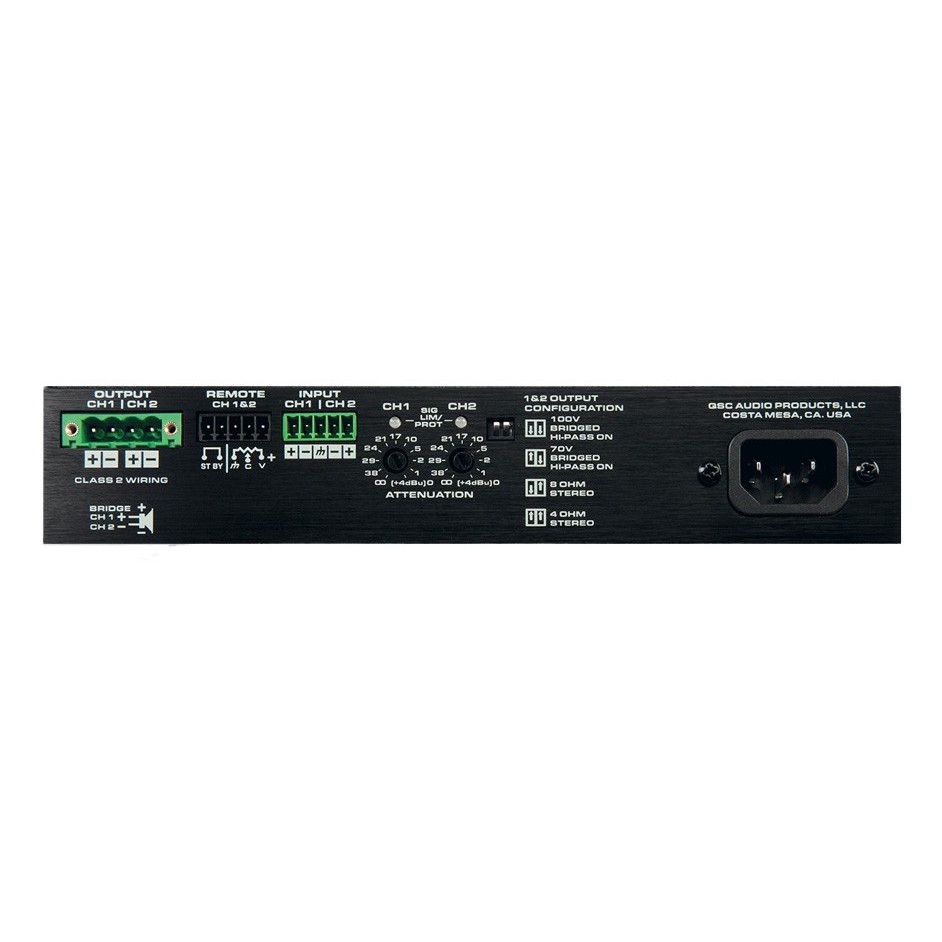

The QSC SPA2-60 Power Amplifier is a two channel amplifier that delivers 60 watts rms per channel into 4 or 8 ohms; the two channels can also be bridged providing up to 200 watts rms into 4 or 8 ohms. When the channels are bridged they can be switched into 70V or 100V direct drive mode providing up to 250 watts rms into a mono 70V or 100V output. There is also an 80Hz highpass filter for bridged operation ensuring that 70V or 100V loudspeakers transformers are not overdriven and saturated by too much low frequency content. The SPA2-60 is ideal for stereo or mono applications of voice or music audio content.

The Atlas Sound TSD-MIX31RL 3x1 mic/line mixer includes two mic/balanced line inputs via removable Phoenix style connectors and a stereo summing dual RCA input. Switchable phantom power is provided for both mic inputs to facilitate condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB / octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback. And the Atlas Sound AAVC-10K Remote Level Control is perfect for use in applications requiring volume control of music or microphone within a room.

QSC AD-C4T AcousticDesign™ Ceiling Mount Speakers:

• Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
• DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
• Snap-fit magnetic grille
• 3x double stepped, long travel dog-ear blind mount system
• Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms, including CXD amplifiers
• Low-saturation and low-loss 70/100V transformers with 16Ω bypass
• Blemish-free removable logo
• Removable conduit cover plate, also available as accessory for pre-install wiring
• UL1480 and UL2043 certified EN54-24 Type A (pending)
• Available in black (RAL 9011) or white (RAL 9010)



QSC SPA2-60 Power Amplifier:

• Up to 60 watts per channel into 4 and 8 ohms
• ENERGY STAR® certified amplifier
• Bridgeable outputs for higher power
• Auto-Ramp provides quiet startup and power-down
• Rack-mountable 1U, half rack width enclosure



Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer:

• Two (2) Balanced Mic/Line Inputs
• High Gain (50dB) Microphone Preamps
• Switchable 24V Phantom Power
• One (1) Unbalanced Summing Dual RCA Line Input
• Vox Sense and Contact Closure Priority Mute of Ch3
• Variable Output Limiter
• Remote Level Control
• 12dB/Octave Low Cut Filter @ 125Hz
• Input Signal & Peak Indicator LED's
• High Gain Output for Driving Long Balanced Lines
• Separate Ground Connections
• Power Supply Sold Separately
• Removable Phoenix Style I/O Connectors
• Security Covers Included for All Front Panel Controls
• Energy Efficient



Atlas Sound AAVC-10K Remote Level Control:

• 10k ohms Linear Taper Insures Smooth Level Control
• Attractive Decora Style Wall Plate
• Convenient Kit Includes Hardware
• Simple 2 Conductor Wiring

• (8) QSC AD-C4T AcousticDesign™ Ceiling Mount Speakers
• (1) QSC SPA2-60 Power Amplifier
• (1) Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer
• (1) Atlas Sound AAVC-10K Remote Level Control
• (1) Atlas Sound TSD-PS24V250MA Power Supply
• (500') West Penn 225 Speaker Wire
