Background Music System with Paging Wireless Bluetooth Streaming and Remote Volume Control

Our business background music and paging sound systems greatly enhance your customer’s experience with any audio and/or video source, wireless Bluetooth device, music streaming service, MP3 device, TV audio and multi-disc CD players.

Create an engaging atmosphere with this Yamaha full-bodied background music sound system designed for commercial background music system. This system includes 8 Yamaha VXS1ML full-range speakers, 2 VXS3S mid-range subwoofers and a VXS10ST 10" Surface Mount Subwoofer along with a Yamaha MA2120 2-channel mixer amplifier with DSP, a Pure Resonance Audio BTR1 Bluetooth wireless audio receiver and a Yamaha DCP1V4S digital control panel. Background music adds to the ambiance of any restaurant, cafe, retail store, or hotel and is an element of high demand in nearly any indoor public space. Available in black or white, these speakers offer a clean and very compact design to easily blend into any interior décor along with top-notch sound quality.

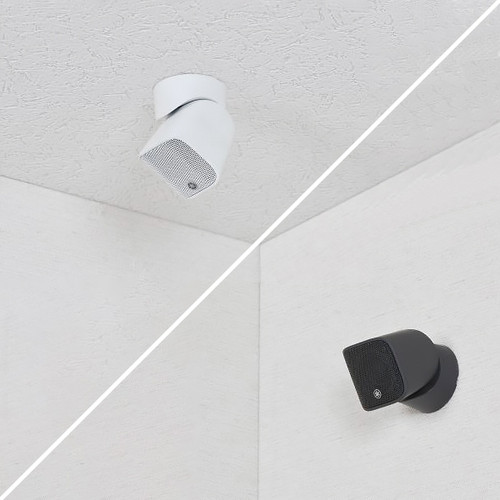

Yamaha VXS1ML Compact Surface-Mount Speakers

An elegant environment depends on more than just décor and lighting. Sound plays a vital role as well. VXS series "M" models combine sophisticated sound and design in compact surface-mount speakers that will make a significant contribution to the most refined, elegant spaces. While the sound of some compact speaker systems is a compromise, the innovative VXS series "M" models are designed in every detail, from driver to enclosure, to deliver the finest possible sound quality in the smallest possible space. Graceful curves define a tasteful form that will blend beautifully in any interior. The key to extraordinary sonic performance is a small 1.5-inch full-range driver unit. Technology and expertise accumulated over 50 years of speaker development and production have been liberally applied in a speaker that delivers exceptional clarity and astonishing musical realism. First, you’ll be surprised by this speaker’s looks, and then by its extraordinary sound.

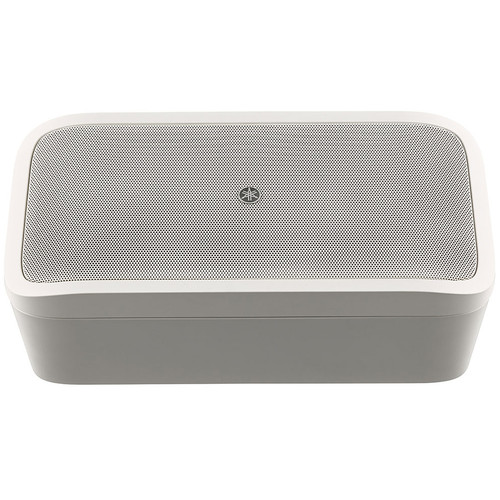

Yamaha VXS3S 3.5" Dual Surface-Mount Mid-Range Subwoofers

The VXS series "S" model subwoofers are ideal matches for VXS and VXC series speakers, smoothly extending the low-frequency range with superb sonic quality for bigger, more true-to-life musical reproduction. Although no larger than a compact surface-mount speaker the VXS3S delivers solid, natural-sounding low-end reinforcement, while the VXS10S and VXS10ST make even more low-frequency power available for situations that require maximum bass authority.

Yamaha VXS10ST 10" Surface Mount Subwoofer

The VXS Series lineup features two full-range models and two subwoofers, allowing you to choose the optimal model for a particular application and, if necessary, combine it with a subwoofer for venues that require a stronger bottom end. VXS Series full-range models are equipped with internal transformers that allow them to operate at both high or low impedance simply by changing the tap on the rear of the speaker. Full-range models also offer IP45-rated protection, ensuring worry-free use in outdoor applications. VXS speakers come with a dedicated bracket for safe, trouble-free speaker installation. Speakers can be mounted temporarily, freeing your hands to adjust mounting angles, which can now be configured consistently with ease thanks to the gear guides in the bracket connectors. Furthermore, the bracket base allows VXS Series speakers to be mounted on both walls and ceilings without the need to prepare a different set of brackets.

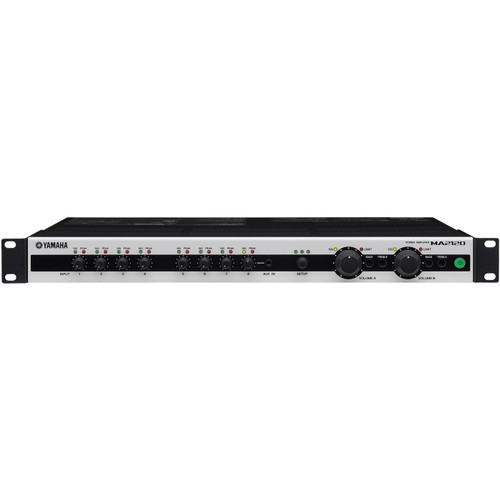

Yamaha MA2120 2-Channel Mixer Amplifier with DSP

The Yamaha MA2120 is perfect for classrooms, auditoriums, or restaurants. With a quick, easy setup and simple intuitive operation, it’s never been easier to bring your commercial space to life. The Yamaha MA2120 is a mixer amplifier with a low impedance output of 2 x 120 watts per channel (4Ω) or 2 x 120 watts / 1 x 200 watts on 100-volt line. The highly efficient Class D amplifier is energy efficient and offers cool running without the need for cooling fans. This is combined with intelligent protection functions in the power supply and amplifier section for excellent reliability. Ideal for small commercial installations, the amp is easy to set up and the well-designed control layout focusses on the large volume control knob whilst the lesser used controls are more discreet. The MA2120 benefits from a rugged metal chassis, 2 stereo inputs and 6 mic/line inputs along with a feedback suppressor, high pass filter and automatic BGM ducking when the microphone is activated. There are also 'compressor', 'reverb' and 'echo' DSP functions. An auto standby function greatly diminishes power consumption in applications where announcements or music playback are delivered intermittently. If an audio signal is not detected for more than 25 minutes, the amplifier automatically goes into standby mode and switches back on when it detects a signal from the systems input devices. Bass and treble source EQ controls are on the front panel and an enhance function adds harmonics to improve the sound. There is also an output EQ on this model along with selectable high pass and low pass filters.

Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver

The Pure Resonance Audio BTR1 is a compact, lightweight Bluetooth stereo receiver that relays consistent, rich, crystal clear sound. Stream high-definition audio wirelessly to your sound system and control playlists directly from your smartphone, tablet, computer, or any Bluetooth-enabled device. At less than one pound and under an inch high, the BTR1 can discreetly sit on a rack shelf or any flat surface, and the included self-adhesive bumper feet will keep it in place. The rugged aluminum enclosure and robust quality build ensure this audio Bluetooth receiver can withstand commercial environments.

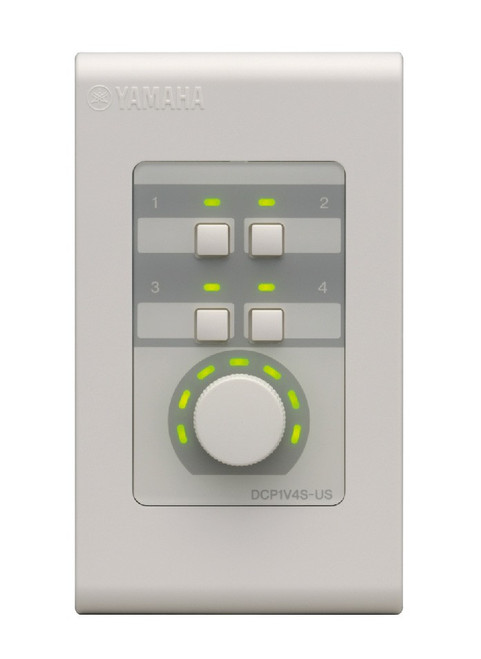

Yamaha DCP1V4S Digital Control Panel

The Yamaha DCP1V4S Digital Control Panel connects to the Yamaha MA2120 Mixer Amplifier for remote volume control, microphone on/off switching or triggering the built-in chime for announcements. DCP controllers provide flexible external control of several functions such as preset recall, levels, and SD card playback. The DCP1V4S is available in either US or EU standardized sizes, built to meet the specifications of most regions around the globe.

Not sure if this is the right Restaurant Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Yamaha VXS1ML Compact Surface-Mount Speakers:

• Optimized for Background Music
• High-performance Full-range Driver
• A Sublime Blend of Function and Elegance
• A Range of Installation Options
• Compact Subwoofer Option for Luxurious Bass
• Newly developed 1.5-inch full-range driver unit
• Wide 170° horizontal and vertical dispersion
• Compact 62mm x 62mm form blends unobtrusively with any décor
• Dedicated wall/ceiling mount hardware supplied
• Black and white models available
• Packaging single
• Paintable enclosures and grilles



Yamaha VXS3S 3.5" Dual Surface-Mount Subwoofers:

• A Choice of Models for All Low-frequency Needs
• Low-frequency Enhancement Methods
• Satellite Connectors Optimize Balance
• Flexible Installation Options



Yamaha VXS10ST 10" Surface Mount Subwoofer:

• 10" dual voice coil subwoofer for high impedance systems
• Highly adaptable surface mount speakers
• Flexible mounting for easier configuration
• Accommodates a growing list of applications in the installation market
• Delivers quintessential Yamaha sound quality
• Carefully designed for safe and easy installation
• Features satellite connectors allowing for the connection of satellite mid-high speakers
• Available in Black or White



Yamaha MA2120 2-Channel Mixer Amplifier with DSP:

• Easy setup, and a user-friendly interface for effortless operation
• Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
• Flexible 6 mic/line inputs and 2 stereo inputs, with all 6 mic inputs featuring a 24V setting
• DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb & Echo)
• Bass and treble stereo source EQ with an enhancer function
• Output EQ for optimizing the sound of each Output channel
• Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
• Capable of controlling sources and volumes separately in two areas (Source/volume zoning)
• Service areas or zoning areas can be expanded by adding a PA2120
• Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
• Intelligent protection function ensures safe, reliable operation
• Certified by ENERGY STAR
• Certified as Yamaha Eco Products
• Space-saving 1U rack size (sufficient space must be provided above and below the unit for airflow and cooling)



Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver:

• Extended-Range - Stay connected and get ultimate wireless freedom and maximum flexibility with extended-range wireless streaming, delivering consistent performance for up to 100 feet (30 meters)
• Quality Performance - Superior high-resolution audio streaming with 112 dB SNR and a frequency response of 10Hz - 20kHz for a clear, rich sound and full dynamic range with low background noise, low distortion, and no audio delay providing the highest-quality listening experience
• High-End Technology - This true high-fidelity audio component applies the latest Bluetooth Version 5.0 technology with high-end Qualcomm® aptX™ HD, aptX™ LL, AAC, and SBC enhanced codecs and audiophile-grade 384kHz/32bit DAC, delivering superior high-resolution digital audio streaming
• Discreet Design - Compact and lightweight at less than 1 lb and under 1" high, this small but tough aluminum enclosure can be placed on any flat surface or rack shelf, and the included self-adhesive bumpers will keep it in place
• Flexible Streaming - With support for both RCA and optical digital inputs, easily add high-quality wireless capabilities to your sound system and stream any audio format directly from your smartphone, tablet, computer, or other Bluetooth-enabled devices
• Easy Setup and Pairing - Simple, no hassle set up, pairs in seconds, and plays instantly without configuration, custom software, apps, or passwords. Remembers up to 8 devices and automatically reconnects to the last paired device when in range



Yamaha DCP1V4S Digital Control Panel:

• 1 volume & 4 switches equipped wall mount control panel
• 1 DCP can be connected to 1 MA2120
• Simple connection via Cat5
• Available in US or EU standardized sizes

• (8) Yamaha VXS1ML 1.5" Compact Surface-Mount Speakers
• (2) Yamaha VXS3S 3.5" Dual Surface Mount Subwoofers
• (1) Yamaha VXS10ST 10" Surface Mount Subwoofer
• (1) Yamaha MA2120 2-Channel Mixer Amplifier with DSP
• (1) Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver with 100ft Range
• (1) Yamaha DCP1V4S Digital Control Panel
• (500') West Penn 224 18/2 Non-Plenum Audio Speaker Wire
