Sound System for Retail Business Background Music

Build the right atmosphere with this JBL retail sound system. Perfect for medium to large coverage areas with the capability to be expanded for more coverage and control over separate zones and features paging capabilities. Background music is key to enhancing your retail business, your customers will enjoy quality sounding music and appreciate the speech clarity and intelligibility of announcements. This retail system includes 8 JBL CSS-1S/T compact surface-mount speakers, a JBL CSMA 180 commercial mixer amplifier, a white wall-mount volume control and speaker wire. For Bluetooth capabilities, you can add the optional DN-200BR Bluetooth audio receiver.

JBL CSS-1S/T Compact 2-Way Surface-Mount Loudspeakers

The versatile and compact JBL CSS-1S/T has a rugged enclosure fitted with an included, easy-to-install ball-type wall-mount bracket that can pivot to aim the speaker in a variety of directions, or can be aimed straight out from the wall. The flat bottom surface of the cabinet allows the speaker to be set on a surface such as a shelf. The 135 mm (5.25 inch) low-frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility. A multi-tap, multi-voltage transformer provides taps of 10 and 5 Watts when driven from a 100V distributed speaker line and 10, 5 and 2.5 Watts when driven from a 70V distributed speaker line. Tap selection is accomplished via a switch that is accessed from the back panel. The speaker has a power handling of 60 Watts continuous average pink noise (100 hrs continuously) when set in its 8 Ohm Direct setting.

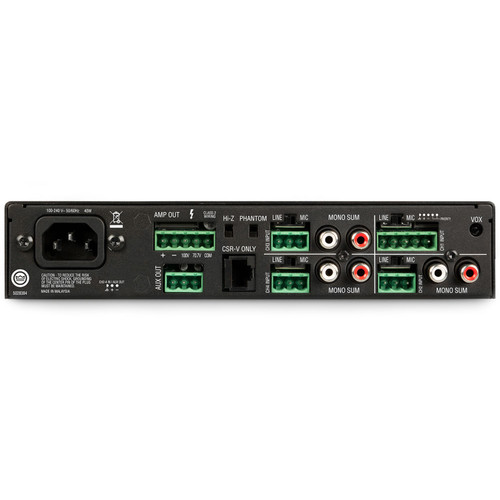

JBL CSMA 180 Mixer-Amplifier

This is ideal for commercial and industrial use and features Crown’s high-efficiency DriveCore Technology and HARMAN’s GreenEdge environmentally-conscious manufacturing so they quickly pay for themselves in energy savings. With a sleek industrial look and a clean front panel featuring only volume controls for each channel, they offer you an easy-to-use professional tool with uncompromised performance. All volume controls on the CSMA 180 are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. This model features a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

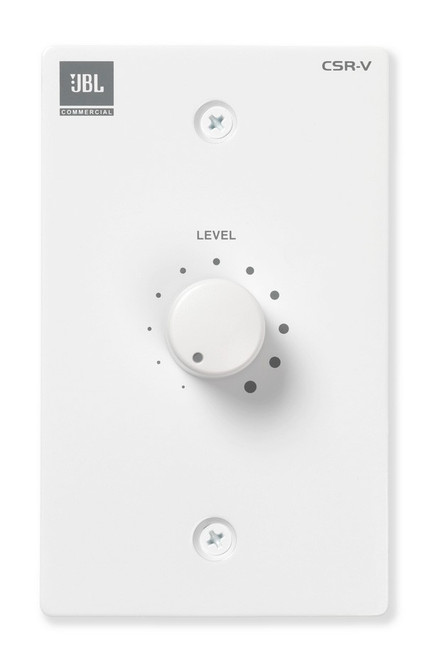

JBL CSR-V Volume Control

The JBL CSR-V can use analog DC voltage to provide logic control ranging from source selection and volume. Wired with Cat 5 cable with universally accepted RJ-45 connectors up to 1000 feet (305 m) length, the CSR series remote controls allow you to remotely select the source and/or control the volume on the CSM mixer. Using CSR-V remote control with your CSM mixer, you can remotely control the volume of the source selected by the mixer.

Optional Add-On:

Denon DN-200BR Stereo Bluetooth Audio Receiver

With countless Bluetooth-enabled audio sources roaming the planet, the DN-200BR interfaces them all with a professional audio system for sound reinforcement, special event or retail applications. It receives Bluetooth signals wirelessly, then routes the audio to balanced XLR or 1/4” outputs for integration with mixers and amplification systems. Its Bluetooth Pairing mode ensures a secure connection.

JBL CSS-1S/T Wall Mount Speakers:

• 10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines
• 8 Ohm Direct Setting
• Included Wall-Mounting Bracket
• Professional Drivers and Network



JBL CSMA 180 Mixer Amplifier:

• 4 inputs with 1 output of 80 or 120-watts of power
• Ideal for commercial and industrial use
• Fanless, space-saving 1U design
• Sleek industrial look with illuminated rings, making them easy to see and operate
• Euro-block type mic/line input connectors and output connectors
• Independent Bass and Treble controls for each output channel
• Supports 70V and 100V distributed audio systems without the need for a separate transformer
• Remote volume control capability using JBL CSR-V module and standard Ethernet cable
• Priority muting
• Configurable output routing
• Utilizes Crown’s DriveCoreTM technology providing excellent audio performance with high efficiency
• Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
• Includes rack mounting kit
• Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
• Energy Star® Certified



JBL CSR-V Remote Volume Control:

• Equipped with RJ-45 connectors
• Connects to a CSM mixer via Category 5 cable, over a maximum distance of 1000 feet
• Available in colors Black or White

• (8) JBL CSS-1S/T Compact 2-Way Surface-Mount Loudspeakers
• (1) JBL CSMA 180 Mixer-Amplifier
• (1) JBL CSR-V White Volume Control
• (500') West Penn Wire 224 Speaker Wire



Optional Add-On:

• (1) Denon Professional DN-200BR Stereo Bluetooth Audio Receiver
