Retail Store Sound System with Vector Ceiling Speaker Atlas Sound AA30PHD Mixer Amplifier
Part # RTSS-PRAVCA8AA30PHD
Model # RTSS-PRAVCA8AA30PHD

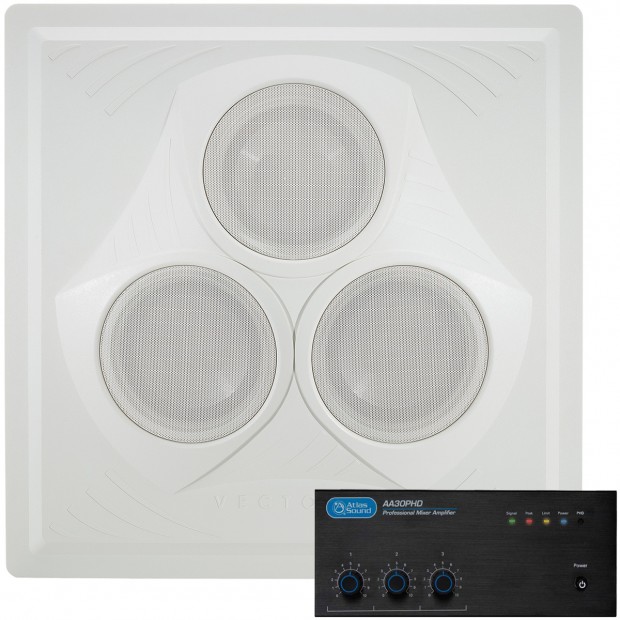

This audio package consists of one Pure Resonance VCA8 Ceiling Speaker Array and one Atlas Sound AA30PHD 30 Watt Mixer Amplifier. It's great for stores, restaurants and conference rooms.

Availability: In Stock and Ready to Ship! Free Shipping!

Description

Details

This Atlas Retail Store Sound System is great for a variety of applications such as stores, restaurants, and conference rooms. This complete audio package consists of one Pure Resonance VCA8 Ceiling Speaker Array and one Atlas Sound AA30PHD 30 Watt Mixer Amplifier.

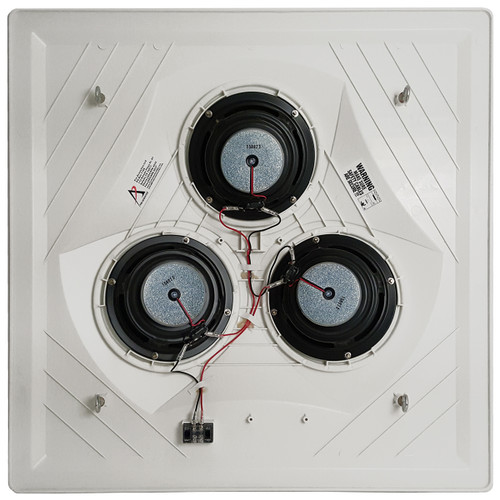

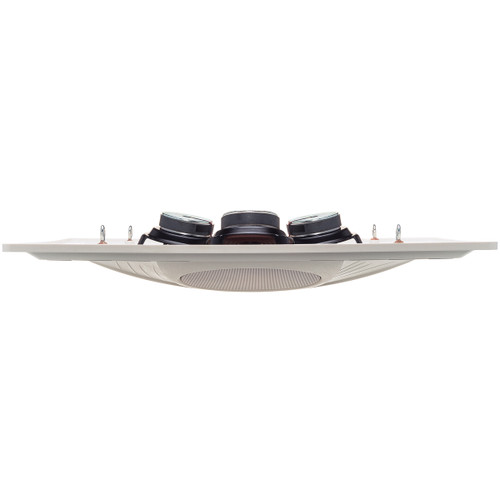

The Vector 2 x 2 Lay-In Ceiling Speaker employs (3 smaller 6.5") very fast transient response aluminum-woofer drivers that are very powerful and stable. Working in unison, these drivers produce clean, powerful, dynamic sound. When designing the Vector the goal was to have the single most important feature at the forefront -- good transient response ("dynamic contrast"). A transient is a sound of short duration. Good transient response can only be achieved if the speaker can deliver its output quickly and cleanly without smearing the original sound, and be completely soundless immediately after. Transients contain the essentials of sound reproduction. They provide the sharp pop from a snare drum, the cutting edge of digital sound, the dynamics of the human voice. Larger 2-way cabinet loudspeaker systems offer relatively slow transient response, and the small high-frequency horn tends to beam a narrow, blaring sound at the listener—end result, muddy sound. By replacing larger speakers with four 6 or 8" drivers increases the driver surface area, while creating more punch and a tight, more focused low-end.

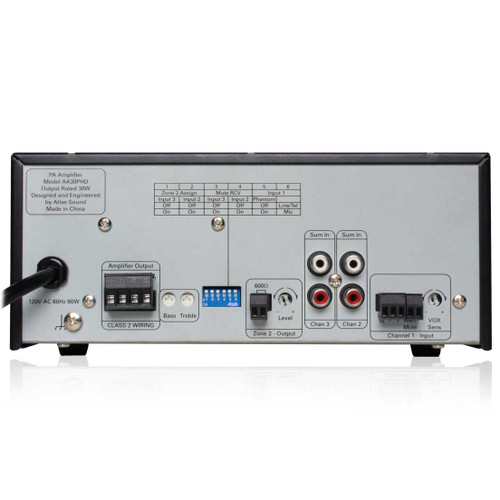

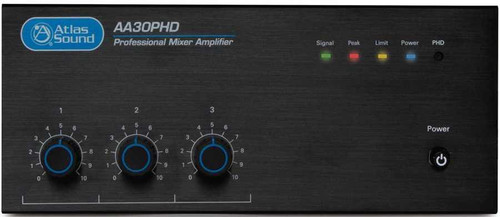

The Atlas Sound AA30PHD is a 30 Watt, 3-Input Mixer Amplifier that is specifically designed for use in 70.7V speaker systems. The AA30PHD features a unique automatic system test using the front panel "Push Here Diagnostic" button. This internal circuitry is designed to check the connected speaker lines for wiring and impedance errors. This test can be activated once all speakers are connected and the circuit automatically verifies that the attached speakers' tap settings do not exceed the amplifier's rated power, no speakers are mistakenly tapped at 8Ω, and the speaker wire is free from shorts. This allows for quick troubleshooting on site and after the sale.

Features

Features

Pure Resonance Audio VCA8 Vector Ceiling Speaker:

  • Omni Directional Speaker Coverage 360 x 180 (hemispherical)
  • Infinite-baffle in-ceiling speaker’s drops into standard ceiling tile openings
  • Powerful – 120 Watts at 8 Ohms
  • 3 - 6.5" Full Range Drivers
  • Uniquely designed fire retardant ABS housing may be painted to match any décor
  • Impedance: 8 ohms



Atlas Sound AA30PHD 30 Watt Mixer Amplifier:

  • 30W into 25V/70.7V and 4Ω Loads
  • Rear Mounted DIP switch Allows Mute Receive for Inputs 2 and 3
  • Contact Closure Mute Terminals
  • Variable Mute Sensitivity Control for Input 1
  • Two Unbalanced, Summing Line Level Inputs
  • Balanced Mic/Line/Tel Input w/ Phantom Power
  • Automated Diagnostic System Test (Push Here Diagnostic)
System Includes

System Includes

  • (1) Pure Resonance Audio VCA8 Vector Ceiling Speaker
  • (1) Atlas Sound AA30PHD 30 Watt Mixer Amplifier
  • (50 ft) West Penn Wire 224 Speaker Wire
