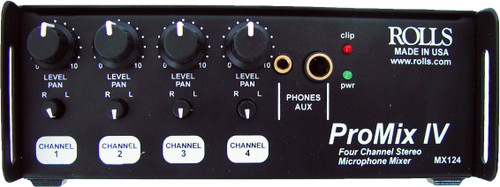

Rolls MX124 Portable 4-Channel Stereo Mixer (Discontinued)
Part # MX124
Model # MX124
The Rolls MX124 is a very useful microphone mixer. It's perfect for sub-mixing microphones in an installation or recording application.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Rolls MX124 Pro-MixIV mixes 4 microphones into two transformer balanced outputs. It has four XLR inputs, each with individually switchable phantom power, and Low Cut switches (100 Hz high pass filter), a Level control, and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries or the included 15VDC power supply.

Features

Features

  • Mixes four microphones to stereo XLR outputs
  • Output level controls for mic or line-level output
  • Transformer isolated outputs
  • Phantom Power and Low-Cut switches for each Mic input
  • Battery and AC powered
  • 1/4" and 1/8" TRS stereo Phone/Aux Outputs
  • Switchable Low Cut filter (100 Hz high pass) for each channel
Specification
Input Impedance600 Ohms
Output ImpedanceXLR 600 Ohms
THD + Noise.02%
S/N Ratio84 dB
Frequency Response25 Hz - 16 kHz (+0 / -3 dB)
Max Output Level+ 14 dB
Max Input Level-14 dB
Max Gain+55 dB
Low Cut-3 dB @ 100 Hz
Current Draw30 mA
Phantom Power+18 VDC
Connectors4 Female XLR, 2 Male XLR, 1 1/4" TRS, 1: 1/8" (3.5mm)
Power9V alkaline batteries X 2, DC Power Jack (5.5 X 2.1 mm tip negative) for Rolls PS27 (included)
Dimensions
(H x W x D)
2.3" (5.84 cm) x 6.3" (16.00 cm) x 3.7" (9.53 cm)
Weight1.5 lbs (0.68 kg)
