- Description
Details

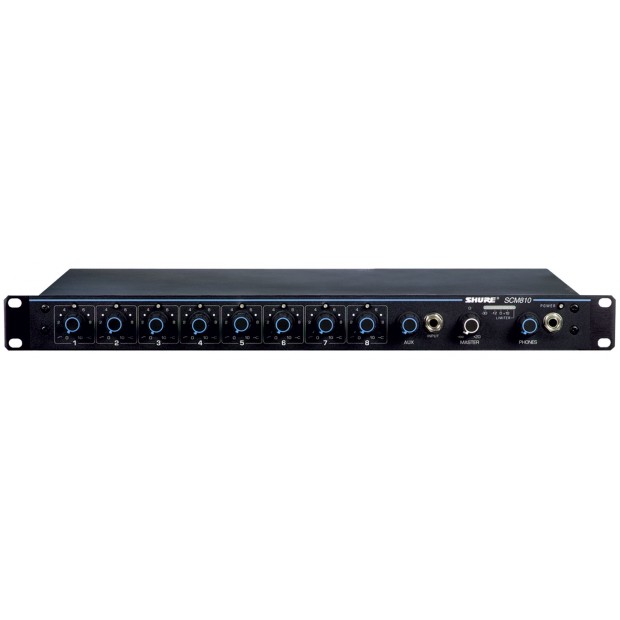

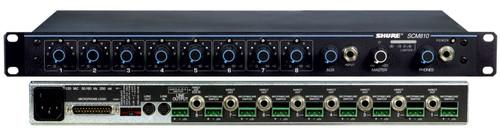

This eight-channel automatic mixer features the Shure patented IntelliMix®, which activates only microphones being addressed, minimizing poor audio caused by multiple open microphones.
The SCM810 is designed specifically for installed sound applications.
Features include adjustable EQ per channel, 48 V phantom power, active balanced microphone - or line-level inputs, line-level outputs, highly RF resistant chassis and circuitry, complete logic control of microphone activation, linking capacity for up to 400 microphones, with an internal power supply. 120/230 Vac power.- Features
Features
- Eight balanced mic-line input channels (Phoenix block connectors)
- One unbalanced 1/4" aux level input
- Eight unbalanced 1/4" direct line level outputs
- One balanced master line level output (Phoenix block connector)
- Selectable 46V phantom power per channel
- Level selectable peak output limiter
- Full rack width (single rack height)
- Specification
Polarity Mic/Line, Send inputs to all outputs are non-inverting; Aux input to all outputs is inverting Input Channel Activation Attack Time: 4 msec; Hold Time: 0.4 sec (switchable to 1.0 sec); Decay Time: 0.5 sec Off-Attenuation 15 dB (switchable to ∞) Overload and Shorting Protection Shorting outputs, even for prolonged periods, causes no damage
Microphone inputs are not damaged by signals up to 3 V
Line & Monitor inputs by signals up to 20VEqualization Low-frequency: 6 dB/octave cut, adjustable corner from 25 to 320 Hz
High-frequency: =6 dB at 5 kHz, +8 dB at 10 kHz, shelvingLimiter Type: Peak; Threshold: Switchable: off, +4, +8, +16 (dBm at output) Limiter Attack Time: 2 msec; Recovery Time: 300 msec; Indicator: Lights red when limiting occurs Input LEDs Green on channel activation, red at 6 dB below clipping Phantom Power 46 Vdc open-circuit through 6.8 kohm series resistance per DIN 45 596 Operating Voltage 120 Vac rated nominal (see Voltage Selection for 230 Vac operation), 50/60 Hz, 200 mA Temperature Range Operating: 0° to 60° C (32° to 140° F ); Storage: –30° to 70° C (–22° to 158° F) Dimensions (H x W x D) 1.75" (44.5 mm) x 19" (483 mm) x 12.5" (317 mm) Net Weight 9 lbs (4.3 kg) - Reviews
