Shure SLX14/93 Wireless Lavalier Microphone System (Discontinued)

Description

Details

The Shure SLX14/93 Wireless Lavalier Microphone System is a powerful wireless tool that can be set up quickly and used confidently by installers and working bands. Features include auto frequency scan with transmitter setup, exceptional wireless clarity, and Shure patented Audio Reference Companding.

Features

Features

SLX4 Receiver

Automatic Frequency Selection
Automatic Transmitter Setup
960 Selectable frequencies across 24 MHz bandwidth
Detachable 1/4 wave antennas
Microprocessor-controlled diversity
Volume control on rear of unit
1/2 rack design
Furnished rack hardware
Non-slip bumpers for use out of rack
XLR and 1/4" outputs

WL93 Lavalier Microphone

Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcement
Small, inconspicuous mounting hardware
Full, clear sound comparable to larger microphones
Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
Controlled low-frequency rolloff reduces low-frequency clothing and room noise
Low distortion, wide dynamic range
Uniform omnidirectional polar pattern
Preamplifier assembly (SM93) can be pocketed, strapped to the body, or clipped to belt or waistband
Wide-range phantom powering (SM93) accepts all commonly used voltages

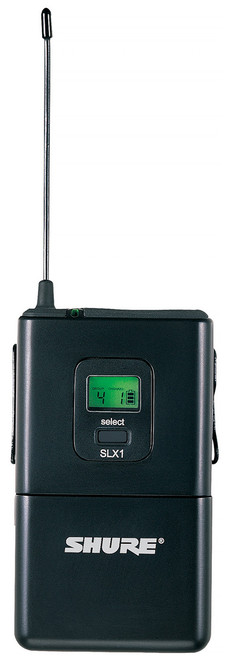

SLX1 Transmitter

Automatic Transmitter Setup
Backlit LCD with timeout feature
3-segment battery fuel gauge
2 AA batteries (included) provide 8 hours of continuous use
518 - 782 MHz operating range
WL93 Subminiature Lavalier Microphone
Supplied with a mounting block with attached tie bar, a sew-on mounting bracket
Cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter

Specification

SLX4 Receiver
Audio Output Level	XLR connector (into 600 Ω load): –13 dBV; 1/4" connector (into 3000 Ω load): –2 dBV
Output Impedance	XLR connector: 200 Ω; 1/4" connector: 1kΩ
XLR output	Pin 1: Ground, Pin 2: (+), Pin 3: (-)
Sensitivity	–105 dBm for 12 dB SINAD, typical
Image Rejection	>70 dB, typical
Power Requirements	12–18 Vdc at 150 mA, supplied by external power supply
Dimensions (H x W x D)	7.76" (197.104 mm) x 1.65" (41.91 mm) x 5.28" (134.112 mm)
Net Weight	1.8 lbs (816 g)
WL93 Lavalier Microphone
Type	Condenser (electret bias)
Frequency Response	50 to 20,000 Hz
Polar Pattern	Omnidirectional, uniform with frequency
Output Impedance	3000 Ω
Output Level	Open Circuit Voltage: –38 dBV/Pa
Output Clipping Level	0.25 V at 120 dB
Total Harmonic Distortion	Less than 1% at 120 dB
Maximum SPL	120 dB
Dynamic Range	102 dB
Output Noise (equivalent SPL)	18 dB typical, A-weighted
Signal-to-Noise Ratio	76 dB at 94 dB SPL (IEC 651)
Current Drain	40 mA typical
SLX1 Bodypack Transmitter
Gain Adjustment Range	30dB
Input Impedance	1 MΩ
RF Transmitter Output	30 mW maximum (dependent on applicable country regulations)
Housing	Molded ABS case
Power Requirements	2 “AA” size alkaline or rechargeable batteries
Dimensions (H x W x D)	2.50" (63.5 mm) x 4.25" (107.95 mm) x 0.75" (19.05 mm)
Net Weight	0.64 lbs (290 g)
