- Description
Details
The ULX Standard UHF wireless (ULX-S) represents a breakthrough in performance and price for both working musicians and professional sound installers.
For more advanced features and controls, see our ULX Professional wireless systems.
The Shure ULX Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile ULXS4 receiver offers a direct path to full, clear audio signals, unencumbered and unattached. For use with ULX Standard Wireless systems.

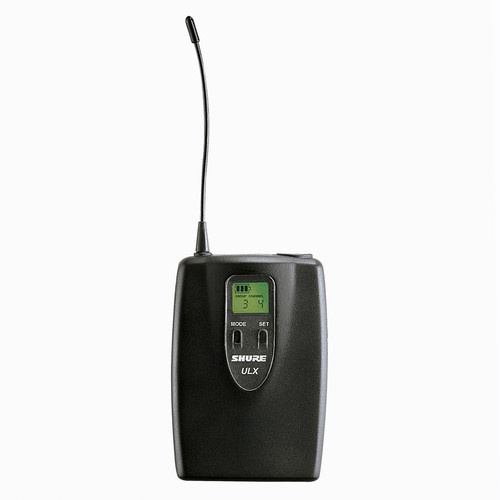

The ULX1 Bodypack Transmitter has a number of uses with ULX Professional systems from Shure, including Lavalier, Headworn, Guitar/Bass, Instrument, and system Combos. The low-profile, highly durable body-pack ULX1 has all the characteristics to meet the demands of high performance. For use with headworn, lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility.
The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.
Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

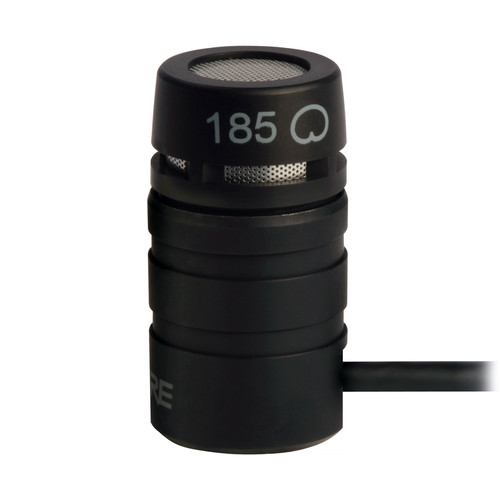

The WL185 is a lavalier electret condenser mics designed for use with a wireless body-pack transmitter. Each mic has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility.- Features
Features
ULXS4 Standard Diversity Receiver:
- Automatic Frequency Selection with group scan function
- Up to 1440 selectable frequencies
- 5-segment transmitted audio signal strength meter
- RF indicator
- 3-segment transmitter battery fuel gauge
- Advanced multi-function LCD displays group and channel
- Mic/Line switch
- Detachable 1/4-wave antenna
- XLR and 1/4-inch output
- Rugged plastic chassis
- 1/2 rack design
ULX1 Bodypack Transmitter:
- Three-segment battery fuel gauge
- Frequency and power lockout
- Flexible 1/4 wave antenna
- TA4F mini four-pin input connector
- Backlit LCD display shows group and channel setting
- Adustable audio gain control
- Input attenuation switch (selects 0 dB or -20 dB attenuation)
- PEAK icon appears when audio input overloads the transmitter
- Power on/off switch
- 8 hour battery life (9V battery)
- 300 foot (100m) operating range
SM58 Vocal Microphone:
- Frequency response tailored for vocals, with brightened midrange and bass rolloff
- Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
- Pneumatic shock-mount system cuts down handling noise
- Effective, built-in spherical wind and pop filter
- Supplied with break-resistant stand adapter which rotates 180 degrees
- Legendary Shure quality, ruggedness and reliability
- Cardioid (unidirectional) dynamic
- Frequency response: 50 to 15,000 Hz
- Replacement cartridge: R59
- Specification
WL185 Lavalier Condenser Microphone Type Condenser (electret bias) Frequency Response 50 to 17,000 Hz Output Impedance 1800 ohms Sensitivity (1 Pa = 94 dB SPL) -45.5 dBV/Pa Maximum Sound Pressure Level 130.5 dB SPL Output Noise (A-weighted) 28.0 dB SPL Dynamic Range 102.5 dB Polarity Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1 Power Requirements Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 ULX1 Transmitter Input Connector TA4F Input Configuration Unbalanced, active Actual Impedance 18 kΩ with lavalier microphone 1 MΩ with instrument cable Maximum Input Level 10 Vp–p (12 dBV) for 1% THD at minimum gain setting using 1 kHz signal TA4F Connector Pin Assignments Pin 1: Tied to Ground Pin 2: Tied to +5 V Pin 3: Tied to Audio Pin 4: Tied thru Voltage for Remote Power +5 V supplied to microphone cartridge ULX1 Transmitter Output Actual Impedance 50 Ω Nominal Output Level 20 mW Maximum Output Level 30 mW Pin Assignments Shell = Ground Center = Signal ULXS4 Receiver Input Connector Antenna Power Input Connector Type Antenna: BNC Power Input: IEC 320 Actual Impedance Antenna: 50 Ω Nominal Input Level Antenna: –95 to –30 dBm Power Input: 15 Vdc Maximum Input Level Antenna: +6 dBm (–20 dBm recommended) Power Input: 18 Vdc Pin Assignments Antenna: Shell = Ground Center = Signal Power Input: IEC Standard Voltage for Remote Power 12 Vdc, 150 mA maximum Receiver Output Connector High Z Audio Low Z Audio Output Configuration High Z Audio: Unbalanced (1/4 in.) Low Z Audio: Balanced (XLR) Actual Impedance High Z Audio: 3 kΩ Low Z Audio: 22 Ω Pin Assignments High Z Audio: Tip = Hot Ring/ Sleeve = Gnd Low Z Audio: 1 = Ground 2 = Hot 3 = Cold Transmitter Gain Adjustment Range 25 dB Receiver Audio Output Level (±38 kHz deviation, 1 kHz tone) XLR connector (into 600 ohm load): , –17 dBV (mic) 1/4 inch connector (into 3000 ohm load): –2 dBV Impedance 1 Megohm ULXS4, ULXP4 (output): 50 ohms at line level; 2000 ohms at mic level Modulation ±38 kHz deviation compressor-expander system with pre- and de-emphasis RF Power Output ULX1: 30 mW maximum Dynamic Range >100 dB, A-weighted RF Sensitivity 1.26 μV for 12 dB SINAD (typical) Image Rejection 80 dB typical Spurious Rejection 75 dB typical Ultimate Quieting >105 dB, A-weighted System Distortion 0.3% total harmonic distortion, typical Power Requirements ULX1, ULX2: 9V alkaline battery; 8.4 V Nicad optional ULXS4: 14 - 18 Vdc (negative ground), 550 mA Battery Life 8 to 9 hours (with 9V alkaline battery) Operating Temperature Range - 20° to 49° C (- 4° to 120° F) Dimensions ULX1: 96.5 mm H x 67 mm W x 26.7 mm D (3.86 x 2.68 x 1.10 in.) Net Weight ULX1: 79 g (2.8 oz.) without battery ULXS4: 1049 g (2 lbs, 5 oz.) Dimensions ULX4S: (1.72 in. x 8.56 in. x 6.52 in.) (43 mm H x 214 mm W x 163 mm D) Net Weight 2.31 lbs (1049 g) (5 oz.) ULX2 Handheld Transmitter Input Configuration Unbalanced, active Actual Impedance 20 kΩ Transmitter Output Actual Impedance 50 Ω Nominal Output Level 20 mW Maximum Output Level 30 mW Pin Assignments Shell = Ground Center = Signal Transmitter Gain Adjustment Range ULX2: 25 dB Receiver Audio Output Level XLR connector(600 ohm load) +3.9 dBV (line),–17 dBV (mic) 1/4"connector (into 3000 ohm load): –2 dB Modulation ±38 kHz deviation compressor-expander system with pre- and de-emphasis RF Power Output ULX2: 30 mW maximum Dynamic Range >100 dB, A-weighted RF Sensitivity 1.26 μV for 12 dB SINAD (typical) Image Rejection 80 dB typical Spurious Rejection 75 dB typical Ultimate Quieting >105 dB, A-weighted System Distortion 0.3% total harmonic distortion, typical Power Requirements ULX2: 9V alkaline battery; 8.4 V Nicad optional Power Requirements ULX2: 9V alkaline battery; 8.4 V Nicad optional Battery Life 8 to 9 hours (with 9V alkaline battery) Operating Temperature Range - 20° to 49° C (- 4° to 120° F) Overall Dimensions 223.5 mm L x 51 mm Dia. (8.8 x 2 in.) Net Weight 258 g (9.1 oz.) without battery SM58 Vocal Microphone Type Dynamic (moving coil) Frequency Response 50–15,000 Hz Polar Pattern Cardioid Output Impedance EIA rated at 150Ω (300Ω actual) Sensitivity (at 1 kHz, open circuit voltage) –54.5 dBV/Pa (1.85 mV) Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Connector Three-pin professional audio (XLR), male Case Dark gray, enamel-painted, die cast metal; matte-finished,silver colored,spherical steel mesh grille Weight 0.656 lbs (0.298 kg) - System Includes
System Includes
- (1) ULX2/SM58 Handheld Transmitter
- (1) WL185 Lavalier Microphone
- (1) ULX1 Bodypack Transmitter
- (1) ULXS4 Standard Diversity Receiver
- (1) Tie Clip
- (1) Microphone Clip
- (1) Grip/switch Cover
- (1) Screwdriver
- (2) Zipper Bags
- (2) 1/4 Wave Antennas
- (1) Power Supply
- (2) Batteries (9V)
- (1) User Guide
