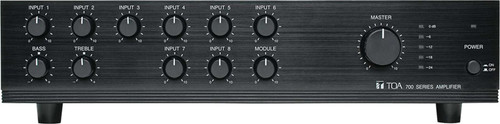

TOA A-712 9-Channel 120 Watts Integrated Mixer Amplifier

The 700 Series model lineup are all manufactured with proven TOA quality and reliability. Features include six mic/line inputs, two auxiliary line inputs and a 900 Series module port. Each mic/line input includes a mic trim control and 23 VDC phantom power. Speaker outputs consist of 70.7 V, 25 V and 4 ohm. An auxiliary line output can be used for recording or connection to an external booster amplifier.

An Auto-Mute function provides voice-activated priority override. You can assign inputs to activate or respond to the muting function with rear panel DIP switches. Muting can also be activated with an external switch-closure.

Other features include channel and master volume controls, bass/treble, processor insert jacks and output level meter. Master volume and power on/off can also be controlled remotely. Short-circuit and thermal protection circuitry ensures extended operation. Optional accessories include the MB-25B rack-mount kit and YA-920 volume control security knob.

Equipped with 6 LINE / MIC selectable inputs, 2 LINE inputs and 1 MODULE input, the TOA A-712 PA amplifier is designed to suit PA system applications such as announcements, BGM and broadcasting churches, large rooms and factories. The 700 Series is UL and cUL listed.

• Nine Channel Integrated Mixer/Amplifiers for paging and background/foreground music distribution
• Proven TOA Quality and Reliability with wide frequency response, very low noise and distortion, and excellent output regulation
• Six Mic/Line Inputs, balanced, with mic trim, 23 VDC phantom power and removable terminal block connector
• Two Auxiliary Inputs, unbalanced, with dual-RCA jacks for convenient connection of stereo sources
• Module Slot accepts 900 Series plug-in modules with additional features
• Transformer-Isolation for Telephone Paging Applications
• 25 V, 70.7 V and 4 Ohm Speaker Outputs with removable terminal block connector
• Auto-Mute Priority Function
• Auto-Mute SENSE Control for adjusting mute activation threshold
• External Mute Terminals for activating mute function with external switch-closure
• Individual Channel and Master Volume Controls
• Bass/Treble Tone Controls
• Output Level Meter and Power Indicator
• Remote Master Volume controlled with an external 10k ohm linear-taper potentiometer
• Auxiliary Output for connecting an external amplifier or recording device
• Pre-amp. Out / Power Amp. In Insert Jacks for connecting external signal processors
• Remote AC Turn-On for activating power with an external switch-closure
• Turn-On Delay disconnects output during power-up
• Over-current and Thermal Protection Circuitry prevents potential damage from overloads, short-circuit and overheating
• Detachable IEC-type AC Power Cord
