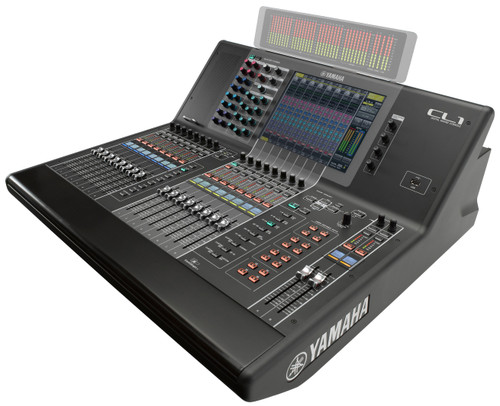

Yamaha CL1 Digital Mixing Console
Part # CL1
Model # CL1

The Yamaha CL1 digital mixing console represents a new level of refinement and embodies the leading standards in live sound in their most advanced, most expressive form.

Availability: In Stock and Ready to Ship!

Free Lifetime
Tech Support!

with Every Purchase Start Chatting


Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.

Every engineer, artist, and audience agrees that sound quality is the bottom line. That’s a given. Through thorough analysis, review, and refinement of every detail of the circuitry and technology used, Yamaha CL series consoles deliver naturally superior sound plus a comprehensive range of “coloring” options that give the sonic craftsmen who will use them extraordinary creative freedom. The signal processors provided are plentiful and of the highest quality, including extraordinary Portico 5033/5043 EQ and compressor devices that bring Yamaha VCM technology together with the legendary talents of Rupert Neve. The platform is pure and natural, so the engineer can create and deliver the ideal sound.

A truly useful sound reinforcement console is one that can keep pace with the rapidly and dramatically changing demands of live sound applications. Efficient, intuitive operation is essential. Yamaha’s acclaimed Centralogic concept is the core of a refined user interface that offers a new, unprecedented level of operating efficiency in the CL series, from visual feedback right down to the form and feel of the faders and controls. The CL consoles are also ready for seamlessly integrated remote control and offline editing via an Apple iPad® or other computer. Control is familiar and intuitive, while at the same time offering extensive freedom.



  • A creative console for expressive engineering
  • Simple Setup
  • Efficient, enjoyable operation
  • Scalable, versatile network capabilities
  • Input channels: 48 mono, 8 stereo
  • Editable channel names and colors
  • Fader configuration: 8-fader left section, 8-fader Centralogic section, 2-fader master section
  • Dante for fast and flexible networking
Analog input characteristics
Input Terminals : OMNI IN 1-8 GAIN : +66dB, +18dB , +17dB, -6dB
Input Terminals : TALKBACK GAIN : +64dB, +20dB
Actual LoadImpedance (OMNI IN 1-8) 10kΩ, 3kΩ
Actual LoadImpedance (TALKBACK) 10kΩ
For use with nominal (OMNI IN 1-8, TALKBACK ) 50-600Ω Mics & 600Ω Lines
Input level (Sensitivity)
OMNI IN 1-8 -82dBu (61.6μV), -34dBu (15.5mV), -33dBu (17.4mV), -10dBu (245mV)
TALKBACK -70dBu (0.245mV), -26dBu (38.8mV)
Input level (Nominal)
OMNI IN 1-8 -62dBu (0.616mV), -14dBu (155mV), -13dBu (174mV), +10dBu (2.45V)
TALKBACK -60dBu (0.775mV), -16dBu (0.123V)
Input level (Max. before clip)
OMNI IN 1-8 -42dBu (6.16mV), +6dBu (1.55V), +7dBu (1.74V), +30dBu (24.5V)
TALKBACK -40dBu (7.75mV), +4dBu (1.23V)
Connector XLR3-31 type (Balanced)
Analog output characteristics
Output Terminals : OMNI OUT 1-8 GAIN SW :+24dB (default), +18dB
Actual SourceImpedance (OMNI OUT 1-8) 75Ω
Actual SourceImpedance (PHONES) 15Ω
For Use WithNominal (OMNI OUT 1-8) 600Ω Lines
For Use WithNominal (PHONES) 8Ω Phones, 40Ω Phones
Output Level (Nominal)
OMNI OUT 1-8 +4dBu (1.23 V), -2dBu (616mV)
PHONES 75mW, 65mW
Output Level (Max. before clip)
OMNI OUT 1-8 +24dBu (12.3 V), +18dBu (6.16V)
Output Level (Connector)
OMNI OUT 1-8 XLR-3-32 type(Balanced)
PHONES Stereo Phone Jack (TRS) (Unbalanced)
Digital Input & Output Characteristics
Terminal Primary/Secondary
Format Dante
Data length 24bit or 32bit
Level 1000Base-T
Audio 64ch Input/64ch Output @48kHz
Connector etherCON Cat5e
Digital Output Characteristics
Format AES/EBU Professional Use
Data length 24bit
Level RS422
Connector XLR-3-32 type (Balanced)
Control I/O characteristics
LAMP (CL5=3, CL3=2, CL1=1) 0V - 12V
Sampling frequency rate
Internal 44.1kHz / 48kHz
External 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
Signal delay Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz
Total harmonic distortion Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min.
Frequency response +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT
Dynamic range 112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min.
Crosstalk -100dB, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min.
Power requirements US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
Power consumption 170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W
Dimensions (H x W x D) 11 3/4" (299 mm) x 25 5/8" (648 mm) x 26 1/4" (667 mm)
Net weight 52.9 lbs (24 kg)
