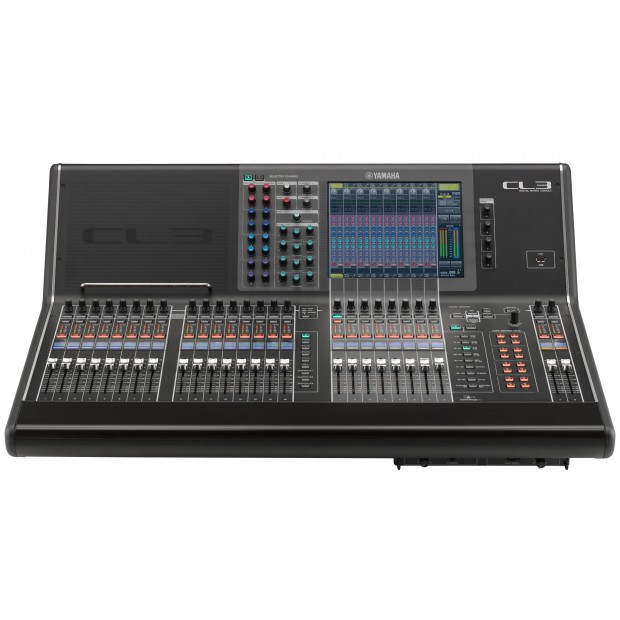

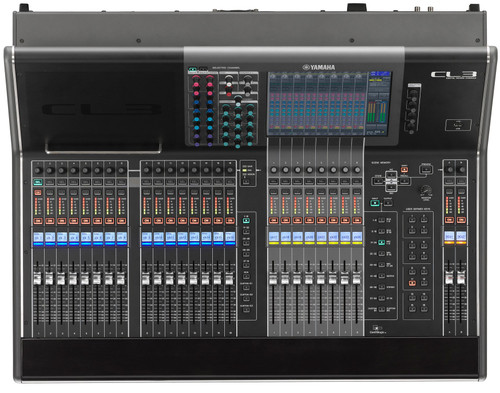

Yamaha CL3 Digital Mixing Console
Part # CL3
Model # CL3

The Yamaha CL3 Digital Mixer is an ideal blend of compact size and channel capacity for a variety of live and installed applications.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.

Every engineer, artist, and audience agrees that sound quality is the bottom line. That's a given. Through thorough analysis, review, and refinement of every detail of the circuitry and technology used, Yamaha CL series consoles deliver naturally superior sound plus a comprehensive range of “coloring” options that give the sonic craftsmen who will use them extraordinary creative freedom. The signal processors provided are plentiful and of the highest quality, including extraordinary Portico 5033/5043 EQ and compressor devices that bring Yamaha VCM technology together with the legendary talents of Rupert Neve. The platform is pure and natural, so the engineer can create and deliver the ideal sound.

A truly useful sound reinforcement console is one that can keep pace with the rapidly and dramatically changing demands of live sound applications. Efficient, intuitive operation is essential. Yamaha's acclaimed Centralogic concept is the core of a refined user interface that offers a new, unprecedented level of operating efficiency in the CL series, from visual feedback right down to the form and feel of the faders and controls. The CL consoles are also ready for seamlessly integrated remote control and offline editing via an Apple iPad® or other computer. Control is familiar and intuitive, while at the same time offering extensive freedom.

Features

Features

  • A creative console for expressive engineering
  • Efficient, enjoyable operation
  • Scalable, versatile network capabilities
  • Input channels: 64 mono, 8 stereo
  • Fader configuration: 16-fader left section, 8-fader Centralogic section, 2-fader master section
  • Stainless steel stay for iPad support
  • Meter bridge MBCLoptional (not included)
Specification
Analog Input Characteristics
Input Terminals: OMNI IN 1-8GAIN : +66dB, +18dB , +17dB, -6dB
Input Terminals: TALKBACKGAIN : +64dB, +20dB
Actual Load Impedance (OMNI IN 1-8)10kΩ, 3kΩ
Actual Load Impedance (TALKBACK)10kΩ
For use with Nominal (OMNI IN 1-8, TALKBACK )50-600Ω Mics & 600Ω Lines
Input Level (Sensitivity)
OMNI IN 1-8-82dBu (61.6μV), -34dBu (15.5mV), -33dBu (17.4mV), -10dBu (245mV)
TALKBACK-70dBu (0.245mV), -26dBu (38.8mV)
Input Level (Nominal)
OMNI IN 1-8-62dBu (0.616mV), -14dBu (155mV), -13dBu (174mV), +10dBu (2.45V)
TALKBACK-60dBu (0.775mV), -16dBu (0.123V)
Input Level (Max. before Clip)
OMNI IN 1-8-42dBu (6.16mV), +6dBu (1.55V), +7dBu (1.74V), +30dBu (24.5V)
TALKBACK-40dBu (7.75mV), +4dBu (1.23V)
ConnectorXLR3-31 type (Balanced)
Analog Output Characteristics
Output Terminals : OMNI OUT 1-8GAIN SW5 :+24dB (default), +18dB
Actual Source Impedance (OMNI OUT 1-8)75Ω
Actual Source Impedance (PHONES)15Ω
For Use With Nominal (OMNI OUT 1-8)600Ω Lines
For Use With Nominal (PHONES)8Ω Phones, 40Ω Phones
Output Level (Nominal)
OMNI OUT 1-8+4dBu (1.23 V), -2dBu (616mV)
PHONES75mW, 65mW
Output Level (Max. before Clip)
OMNI OUT 1-8+24dBu (12.3 V), +18dBu (6.16V)
PHONES150mW
Output Level (Connector)
OMNI OUT 1-8XLR-3-32 type (Balanced)
PHONESStereo Phone Jack (TRS) (Unbalanced)
Digital Input & Output Characteristics
TerminalPrimary/Secondary
FormatDante
Data Length24bit or 32bit
Level1000Base-T
Audio64ch Input/64ch Output @48kHz
ConnectorEtherCON Cat5e
Digital Output Characteristics
TerminalDIGITAL OUT, AES/EBU
FormatAES/EBU Professional Use
Data Length24bit
LevelRS422
ConnectorXLR-3-32 type (Balanced)
Control I/O Characteristics
LAMP (CL5=3, CL3=2, CL1=1)0V - 12V
Sampling Frequency Rate
Internal44.1kHz / 48kHz
External44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
Signal DelayLess than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz
Total Harmonic DistortionLess than 0.05% 20Hz-20kHz @ +4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min.
Frequency Response+0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT
Dynamic Range112dB typ: DA Converter / 108dB typ: OMNI IN to OMNI OUT, Input Gain = Min.
Crosstalk-100dB, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min.
Power RequirementsUS/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
Power Consumption170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W
Dimensions (H x W x D)11.75" (299 mm) x 33.13" (839 mm) x 26.25" (667 mm)
Net Weight63.9 lbs (29 kg)
