Yamaha Church Sound System with TF3 Digital Mixing Console DBR12 Powered Speakers and ADA Assistive Listening System (Discontinued)
Part # CHSS-DBR12TF3
Model # CHSS-DBR12TF3

This Yamaha Church Sound System with DBR12 speakers and TF3 24 Channel Digital Mixing Console is equipped with ample input capacity and hands-on control in a compact console that can handle a wide range of applications.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

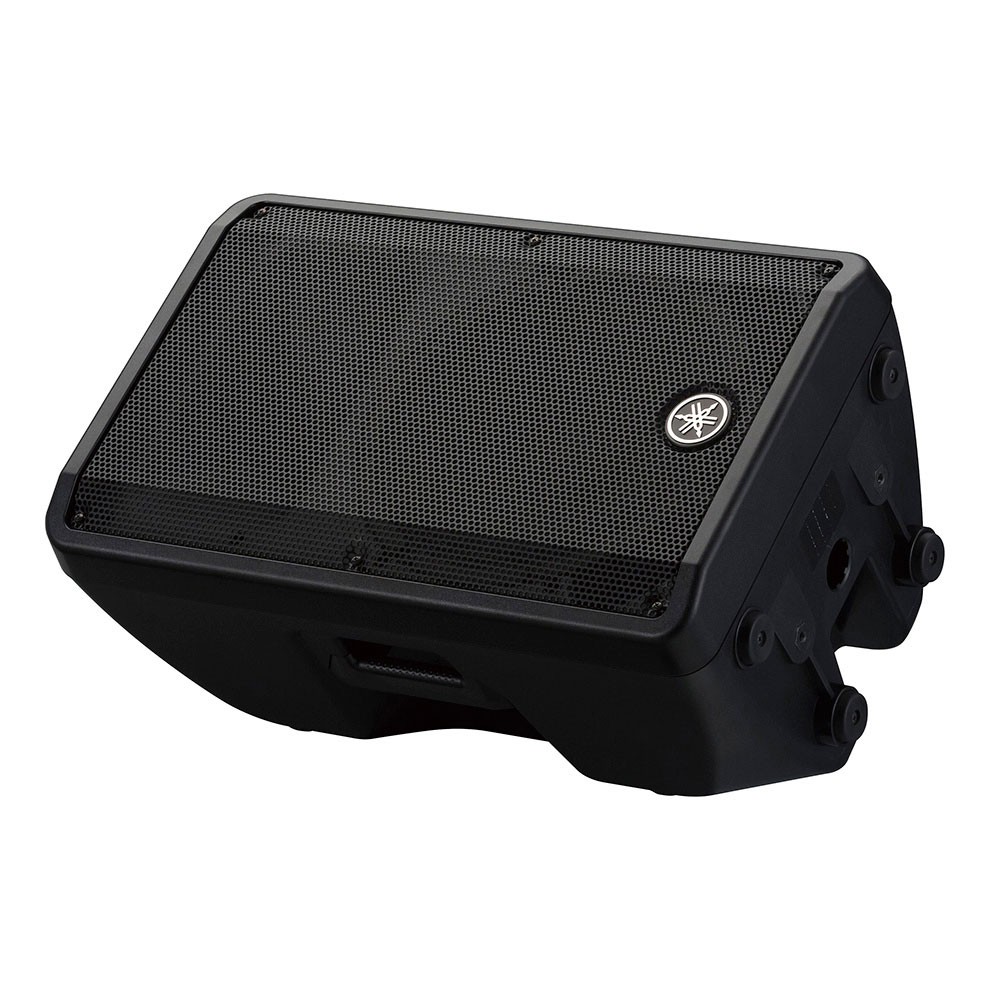

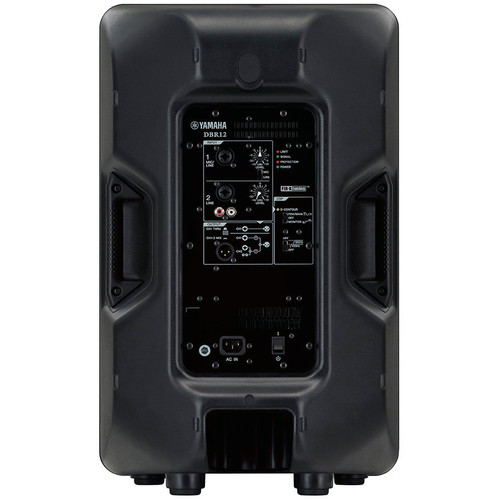

The Yamaha DBR12 12" 2-way Powered Loudspeaker represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

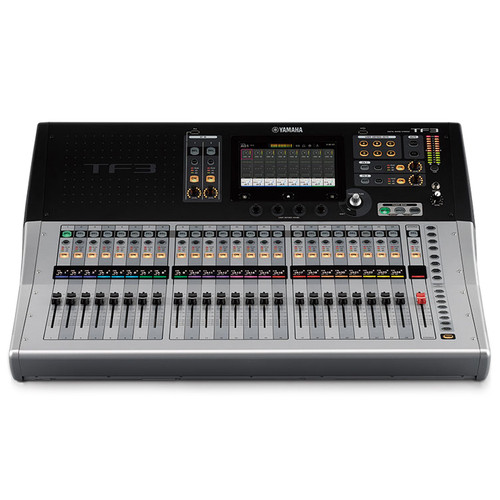

The Yamaha 24-channel digital console that will unleash your creativity, the Yamaha TF3's fluid TouchFlow Operation lets you respond to the music onstage with effortless speed and freedom, ensuring that nothing restricts your inspiration. Whether you're an experienced engineer or a complete novice, the TF3's level of refinement is nothing short of astonishing, making it remarkably easy to achieve a great mix. And after listening to the TF3's great-sounding D-Pre mic preamps, we think you'll agree that this comfortable, smooth-operating compact digital mixer doesn't skimp on sound quality, either. At Sweetwater, we believe that the Yamaha TF3 is a truly evolved 24-channel digital console, thanks to its straightforward touchscreen design and practical presets and scenes.

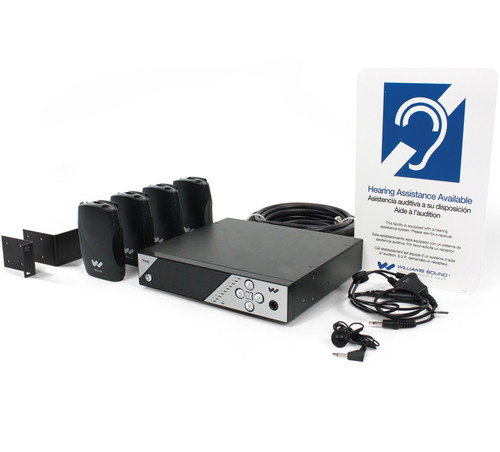

The Williams Sound PPA 457 PRO Personal PA Pro FM Assistive Listening System features three powerful microprocessors and the same high-quality audio and RF performance you’ve come to expect from Williams Sound. With an operating range of up to 1000 feet, the PPA 457 PRO is ideal for large venues where superior coverage is essential. This complete turnkey solution includes four PPA R37 receivers, each featuring seek-button channel selection with access to 17 pre-set wideband frequencies between 72-76 MHz. It includes a coaxial cable and rack panel kit for professional installation. The system is expandable, accommodating any number of listeners. The cutting-edge PPA T45 transmitter offers multiple digital audio input options, and an OLED high-resolution screen with easy-to-manage menu navigation. It features 3 powerful microprocessors and the same high-quality audio and RF performance you’ve come to expect from Williams Sound. It’s technology that takes the guesswork out of complex audio installation. Simply select among voice, music, or hearing assistance in the application preset menu, and this transmitter quickly configures itself.

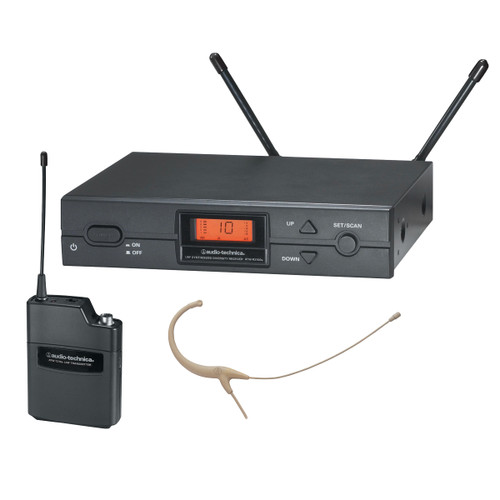

The Audio-Technica ATW-2192a Wireless Headworn Microphone System is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. Features include two available frequency bands and switchable antenna power.

The Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage. Rack-mountable and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution.

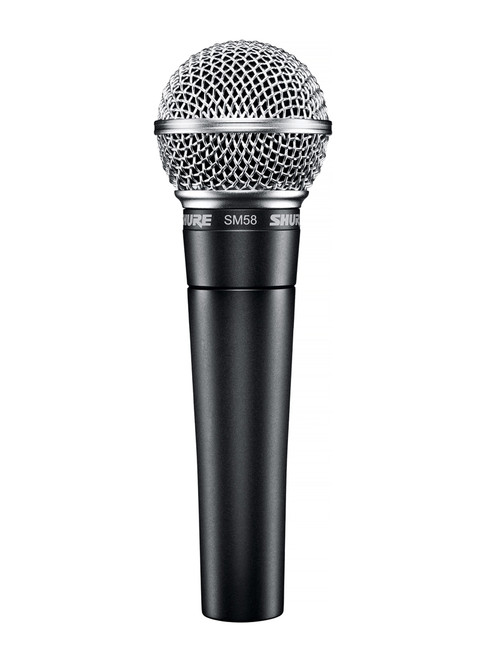

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. An unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

The legendary Shure SM57 is exceptional for musical instrument pickup and vocals. With its bright, clean sound and contoured frequency response, the SM57 is ideal for live sound reinforcement and recording.The SM57 has an extremely effective cardioid pickup pattern that isolates the main sound source while minimizing background noise. In the studio, it is excellent for recording drums, guitar, and woodwinds. Outstanding performance, reliability, and application diversity make this "workhorse" the choice of performers, producers, and sound engineers worldwide.

Features

Features

Yamaha DBR12 12" 2 Way Powered Loudspeakers:

  • 1000W class D power
  • Lightweight enclosure
  • Broad coverage
  • FIR-X tuning delivers excellent sound quality with high resolution and a smooth frequency response
  • D-Contour optimizes the DBR12 for main speaker or floor monitor use
  • Onboard mixer lets you select either a direct output or a mixed output
  • Comprehensive inputs for mixer, musical instrument, or media players
  • Amplifier and power supply design provides powerful output from a compact speaker
  • DSP-controlled protection functionality promotes optimum reliability

Yamaha TF3 24 Channel Digital Mixing Console:

  • 25 motor faders (24 channels + 1 master)
  • 48 input mixing channels (40 mono + 2 stereo + 2 return)
  • 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
  • 8 DCA groups with Roll-out
  • 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
  • 16 analog XLR outputs
  • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
  • 1 expansion slot for NY64-D audio interface card

Williams Sound PPA 457 PRO Personal PA Pro FM Assistive Listening System:

  • T45 professional transmitter
  • Up to 1000’ operating range
  • OLED display, push-button menus
  • Microprocessor controlled
  • Accommodates any number of listeners
  • Adjustable power output
  • Combo XLR, 0.25” TRS inputs
  • Meets ADAAG guidelines
  • Lifetime PLUS Limited Warranty. 90 days on accessories.
  • Made in the USA

Audio-Technica ATW-2129a Wireless Lavalier Microphone System:

  • Serious advances in affordable professional wireless
  • Clear sound quality and rock-solid, dependable performance
  • Automatic frequency scanning
  • 10 compatible user-switchable channels in one of two UHF frequency ranges
  • Antenna power available for powered antennas & other in-line RF devices
  • True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
  • Tone Lock™ tone squelch system fights interference
  • Rugged metal half-rack receiver with soft-touch controls and LCD display
  • Balanced XLR and unbalanced 1/4” output jacks enable use with a wide variety of audio gear
  • Switchable transmitter power output with high and low settings offered
  • Includes rack-mount kit and detachable UHF antennas
  • Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver

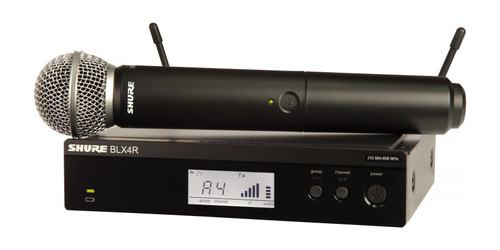

BLX24R/SM58 Handheld Wireless System:

  • One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference
  • Up to 14 hours of continuous use from 2 AA batteries (included)
  • Up to 300 ft (91 m) operating range for total wireless freedom
  • XLR and 1/4" output connectors
  • Rugged and reliable Shure construction
  • Legendary Shure microphones options featuring integrated microphone capsule design

Shure BLX14R Rackmount Wireless Guitar System:

  • Easy set up and operation
  • One-touch Quickscan frequency selection quickly locates the best open frequency
  • Legendary Shure audio and durable construction

Shure SM58 Vocal Microphones:

  • Handheld microphone ideal for live vocals
  • Dynamic cartridge with cardioid polar pattern
  • Frequency response tailored for vocals, with brightened midrange and bass rolloff
  • Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
  • Pneumatic shock-mount system cuts down handling noise
  • Effective, built-in spherical wind and pop filter
  • Supplied with break-resistant stand adapter which rotates 180 degrees
  • Legendary Shure quality, ruggedness and reliability
  • Replacement cartridge: R59
  • Includes SM58, microphone clip, storage bag, and user guide

Shure SM57 Instrument Microphone:

  • Contoured frequency response for clean, instrumental reproduction and rich vocal pickup
  • Professional-quality reproduction for drum, percussion, and instrument amplifier miking
  • Uniform cardioid pickup pattern isolates the main sound source while reducing background noise
  • Pneumatic shock-mount system cuts down handling noise
  • Extremely durable under the heaviest use
  • Frequency response: 40 to 15,000 Hz
  • Replacement cartridge: R57



System Includes

System Includes

  • (4) Yamaha DBR12 12" 2 Way Powered Loudspeakers
  • (1) Yamaha TF3 24-Channel Digital Mixing Console
  • (1) Williams Sound PPA 457 PRO Personal PA Pro FM Assistive Listening System
  • (1) Audio-Technica ATW-2192a-Th Wireless Headworn Microphone System (Beige)
  • (1) Shure BLX24R/SM58 Handheld Wireless System
  • (1) Shure BLX14R Rack Mount Guitar / Bass Wireless System
  • (3) Shure SM58 Vocal Microphones
  • (1) Shure SM57 Instrument Microphone
  • (2) OSS MS7701B On-Stage Euro Boom Microphone Stands
  • (4) CBI MLN-50 Speaker/Monitor Cables 50ft 1/4" to 1/4"
  • (4) CBI MLN-25 Mic Cables 25ft 1/4" to 1/4"
  • (3) CBI MLN-6 Patch Cables - 6ft

Optional:

  • (2) YAMAHA BWS251-300 DBR12 Speaker Wall Brackets
  • (1 Pair) Yamaha SS238C Aluminum Tripod Speaker Stands with Carrying Bag
  • (2) On-Stage Stands SS7322B Adjustable Wall Mount Speaker Brackets
  • (1 Pair) Gator Frameworks Adjustable Wall Mountable Speaker Stands
  • (2) Yorkville SKS-WALL2 Mount Brackets and Flying Hardware
