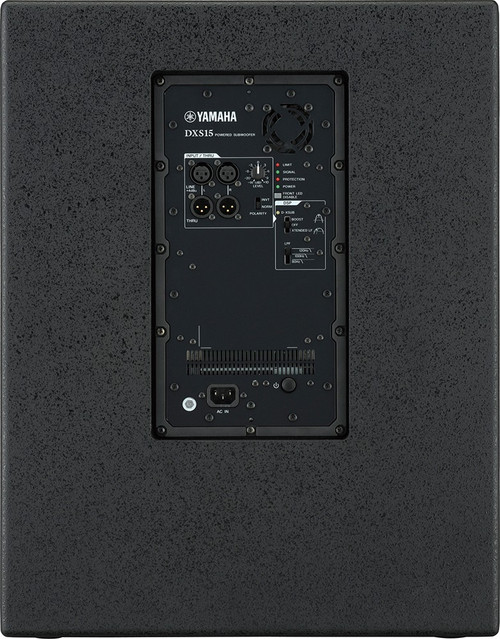

Yamaha DXS15 15" Active Subwoofer (Discontinued)
Part # DXS15
Model # DXS15

The Yamaha DXS15 15" 600W Active Subwoofer is an extremely compact and powerful subwoofer that provides rock-solid bass and consistent performance.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The DXS Series are compact, high-output, powered subwoofers that match perfectly with DSR, DXR and DBR full-range powered loudspeakers, and feature intelligent DSP technologies that enhance the versatility in its performance.

The DXS Series has a band-pass design that produces extremely high SPL by drastically reducing the distortion. The DXS features a customized, high-power handling woofer with superior damping for a clean, accurate delivery of the massive power produced by a 950W Class-D high-efficiency amplifier. What’s more, Yamaha’s formidable DSP technologies are perfectly utilized in the DXS Series for precise tuning of filters and low-frequency response, as well as high-grade protection functions that ensure all components perform to the full limit of their potential. The unmistakable result is clearly defined, powerful bass frequencies that will take your sound system to new heights... and depths.

Features

Features

  • Portable 15" subwoofer with 600-watt RMS power amp
  • 15" long-throw speaker with a 2.5" voice coil for superb bass response
  • 45Hz-160Hz frequency range is ideal for small- to medium-sized rooms
  • Built-in D-XSUB processing allows you to extend the frequency response even lower
  • Wooden cabinet is durable and acoustically optimized for maximum sound quality
Specification
Speaker Type15" powered subwoofer, Band-pass type
Frequency Range (-10dB)45Hz - 160Hz
Components (LF)Diameter: 15" cone, Voice Coil: 2.5"
Output PowerDynamic: 950W / Continuous: 600W
Maximum Output Level (1m; on axis)132dB SPL
I/O ConnectorsINPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2 (Parallel with INPUT)
ProcessorsD-XSUB: BOOSTXTENDED-LF OFF
Power Consumption120W
Power Requirements100V - 240V, 50Hz/60Hz
Pole Socket35mm (Top x 1)
MaterialWood (Paint, Black)
Dimensions (H x W x D)24 3/8" (618 mm) x 18 7/8" (478 mm) x 24 4/8" (624 mm)
Weight83.8 lbs (38.0 kg)
