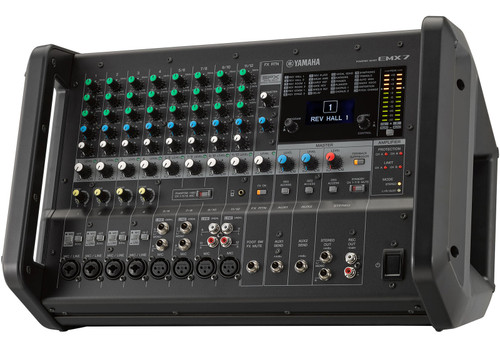

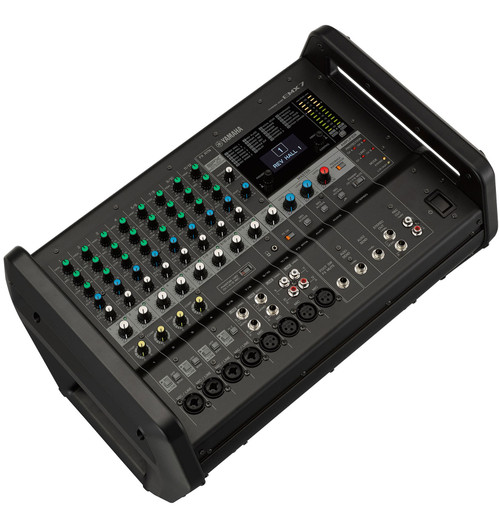

Yamaha EMX7 Portable 12 Channel Powered Mixer 2 x 710W

Home /
Live Sound Equipment /
Audio Mixers /
Powered Mixers /
Yamaha EMX7 Portable 12 Channel Powered Mixer 2 x 710W

More Views

Part # EMX7

Model # EMX7

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Yamaha EMX7 was designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want.

The EMX7 model features a built-in high-efficiency power amplifier 2 x 710W of output power respectively. Despite their low power consumption, these amps are capable of very high volume output, yet still manage to remain surprisingly lightweight. This model also comes equipped with an onboard overload protection function to improve reliability and prolong component life and performance quality.

Features

Features

Powerful & High Efficiency Class-D Amplifier
Robust But Extremely Portable Design
Easy Setup, Easy Operation
Complete Range of Input & Output Channels
12 Line Inputs (8 mono + 4 stereo)
High-Z input (channel 4) to connect guitars or basses directly
Flex 9 Graphic Equalizer
Onboard Feedback Suppressor
Comprehensive, professional 24 different effects
Yamaha Speaker presets
Metal chassis for extended operation and robustness
Large handles for extreme portability and protection
Universal power supply eliminates concern on power fluctuations
Optional rack-mount kit available

Specification

Maximum Output Power (1 kHz)	THD+N <10% 710W + 710W (4 Ω), 500W + 500W (8 Ω) THD+N <1% 600W + 600W (4 Ω), 400W + 400W (8 Ω)
Input Channels	12 channels (max. 8 MIC/12 LINE, 4 Mono + 4 Stereo) CH4: Hi-Z input supported
Output Channels	Speakers (A, B): 1, Aux1 Send: 1, Aux2 Send: 1, Stereo Out (L, R): 1, Rec Out (L, R): 1
Bus	Stereo: 1 AUX: 2 (Including FX)
Input Channel Equalization	COMP Multiple parameters (gain, threshold, ratio) can be adjusted simultaneously with a single control Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to +7 dB Attack time: approx. 25 ms, Release time: approx. 300 ms Equalizer HIGH: 10 kHz ±15 dB (Shelving) MID: 2.5 kHz ±15 dB (Peaking) LOW: 100 Hz ±15 dB (Shelving)
Level Meter	2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK)
Phantom Power Voltage	+48 V
Built-in Effect/SPX Algorithm	24 programs
Foot Switch	Effect mute on/off
DSP Processing	Feedback suppressor, Graphic equalizer, Speaker processor
Protection	Load Protection: DC-fault Amplifier Protection: Over heat protection, Over current protection, Integral power protection Power Supply Protection: Over heat protection, Over current protection
Power Requirements	AC 100–240 V, 50 Hz/60 Hz
Power Consumption	45W (Idle) / 250W (1/8 Power)
Optional Accessory	Rack-mount brackets: RK-EMX7, Foot switch: FC5
Operating Temperature	0 to +40˚C
Dimensions (H x W x D)	12.1" (308 mm) x 18.3" (465 mm) x 12.8" (325 mm)
Net Weight	20.9 lbs (9.5 kg)
