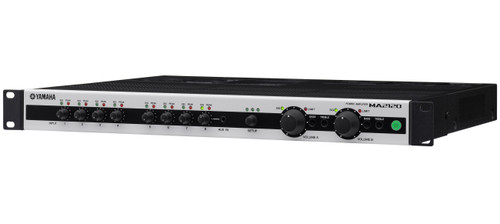

The Yamaha MA2120 is a 2-channel mixer amplifier with DSP Lo-Z/Hi-Z switchable Class-D mixer amplifier (Lo-Z: 120W x2 @4Ω, 100W x 2ch @3Ω/8Ω, Hi-Z: 120W x 2ch or 200W x1ch, 70V/100V) equipped with 6 mic/line inputs, 2 stereo inputs and powerful DSP functions for high-quality music playback and microphone use.
With a quick, easy setup and simple intuitive operation, it’s never been easier to bring your commercial space to life than with Yamaha’s latest additions to our Commercial Installation Solutions lineup, the MA/PA Series compact power amplifiers. All models combine a familiar, unassuming construction with efficient, flexible performance, while the MA2120 and MA2030 offer mixing capability with source EQ (Bass/Treble), as well as a number of the same acclaimed Yamaha state-of-the-art DSP technologies featured in our professional audio gear. Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the MA/PA Series provides you with a simple, yet powerful tool to help shape your ideal commercial sound environment.
- Features
Features
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
- Flexible 6 mic/line inputs and 2 stereo inputs, with all 6 mic inputs featuring a 24V settings
- DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb & Echo)
- Bass and treble stereo source EQ with an enhancer function
- Output EQ for optimizing the sound of each Output channel
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
- Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
- Service areas or zoning areas can be expanded by adding a PA2120
- Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
- Intelligent protection function ensures safe, reliable operation
- Certified by ENERGY STAR
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (sufficient space must be provided above and below the unit for airflow and cooling)
- Specification
Output Power - 1kHz THD+N=1%: 100W x 2 (20ms Burst) Output Power - High Impedance 70V/100V line: 120W x 2 or 200W x 1 Total Harmonic Distortion ≤0.2% Frequency Response 0dB, -2.5dB, +1.0dB Crosstalk ≤ -70dB (MIC/LINE input to other MIC/LINE input) I/O Connectors Mic/Line Input Input 1-6: 3.5 mm Euroblock (6-pin, balanced) x 3 Line Input Input 1-6: 3.5 mm Euroblock (6-pin, balanced) x 3 Speaker Output Barrier strip x 2 pairs Line Out LINE OUT: MONO RCA pin x 2 (unbalanced) Control Ports RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5 mm Euro block 3-pin) Input Level Mic input: -56dBu (Sensitivity), -36dBu (Nominal), -8dBu (Max before clip) / Line input (unbalanced): -30dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): -24dBu (Sensitivity), -4dBu (Nominal), +24dBu (Max before clip) Output Level -10dBV (LINE OUT, Nominal) Protection Circuit Load Protection Power on/off: Mute output, Output voltage protection: Compress output,
DC-fault: Power supply shutdownAmplifier Protection Thermal: Limit the output → Mute → Shutdown (Restored automatically) Power Supply Protection Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output → Power supply shutdown (Restored automatically) Amplifier Class Class D Cooling Conventional cooling, bottom to up airflow Power Consumption: Music Source Equivalent 60W (1/8 max power, 4Ω, AC100V, pink noise at all channels) Operating Temperature 0°C to + 40°C Storage Temperature -20°C to + 60°C Accessories AC power cable, 3.5 mm Euroblock plug (6-pin) x 3, Euroblock pulg (3-pin) x 1, Owner's manual, Setup guide Options DCP4V4S, DCP1V4S, DCP4S (Digital Control Panel) Certificate ENERGY STAR Dimensions (H x W x D) 1.8" (45 mm) x 18.9" (480 mm) x 14.9" (379 mm) Net Weight 10.8 lbs (4.9 kg) - Documents
