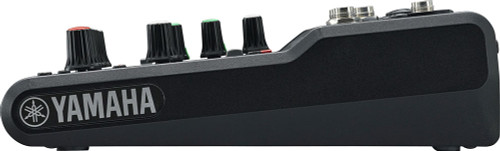

Yamaha MG06 6-Channel Mixing Console
Part # MG06
Model # MG06

The Yamaha MG06 analog mixer is well-suited for ultra-compact mixing rigs and delivers outstanding sound quality.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Feature-rich and delivering outstanding sound quality, the Yamaha MG06 analog mixer is well-suited for ultra-compact mixing rigs. The MG06's quality op-amp ensures that your mix sounds transparent and articulate. The MG06's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring switchable phantom power, a pad switch, EQ, and LED metering, the tiny MG06 can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG06 is ready to work for you!

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivaled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivaled in its class.

Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

Features

Features

  • 6-Channel Mixing Console
  • Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
  • 1 Stereo Bus
  • "D-PRE" mic preamps with an inverted Darlington circuit
  • XLR balanced outputs
  • PAD switch on mono inputs
  • +48V phantom power
  • Metal chassis
Specification
I/O+48 V
Input Channels
Mono [MIC/LINE]2
Stereo [LINE]2
Output Channels
STEREO OUT2
PHONES1
BusStereo: 1
Input Channel Function
PAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono)
EQ HIGH(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ LOW(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
Total Harmonic Distortion0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency Response+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & Noise Level
Equivalent Input Noise-128 dBu (Mono Input Channel, Rs: 150 ohm, GAIN knob: Max)
Residual Output Noise-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk-88 dB
Power RequirementsPA-130 (12 VDC / 1 A), 120 VAC, 60 Hz, MU18 (12 VDC / 1.5 A), 100-240 VAC, 50/60 Hz Or Equivalent Recommended by Yamaha
OthersOperating Temperature: 0 to +40 degrees celsius
Dimensions (H x W x D)2.4" (62 mm) x 5.9" (149 mm) x 7.9" (202 mm)
Net Weight1.98 lbs (0.9 kg)
