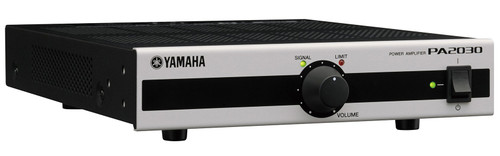

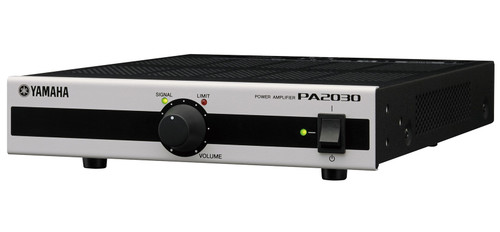

The Yamaha PA2030 Compact Power Amplifier combines a familiar, unassuming construction with efficient, flexible performance.
The PA2030 offers a number of the same acclaimed Yamaha's state-of-the-art DSP technologies featured in our top of the line professional audio gear. Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the PA2030 provides you with a compact, yet powerful tool to help shape your ideal commercial sound environment.
The PA2030 Power Amplifier interface has been specifically designed for effortless operation. A layout that gives priority to the frequently used output volume knob while other controls are visually subdued, for example, significantly enhances control efficiency in normal day-to-day operation. And there’s no need for computers or complex programming procedures for installation or operation. After a quick, easy setup procedure that requires no special knowledge or skill, the system is ready to deliver outstanding sound in a wide range of applications.
For larger systems the MA2030 and PA2030 can be combined to drive more speakers, service a wider area, or set up volume zoning. An optional RKH1 rack mount can be used to mount either the half-rack size MA2030 or PA2030 alone, or both units side by side in a single 1U rack space. There’s also an optional DCP1V4S control panel that can be connected to the MA2030 for remote volume control, microphone on/off switching, or triggering the built-in chime for announcements.- Features
Features
- Lo-Z/Hi-Z switchable compact Class-D power amplifier
- Easy setup, and a user-friendly interface for effortless operation
- Built-in EQ for optimum Yamaha VXC/VXS series speaker performance
- Service zones can be expanded by adding a MA2030
- Yamaha quality control ensures safe, reliable operation
- Space-saving 1U half-rack size (Sufficient space must be provided above and below the unit for airflow and cooling)
- Specification
Output Power - 1kHz THD+N=1%: 3Ω, 30W x 2 Output Power - High impedance: 70V/100V Line 60W x 1 Total Harmonic Distortion ≤ 0.1% Frequency Response 0dB, -3.0dB, +1.0dB I/O Connectors Stereo Input LINE IN: Stereo RCA pin, unbalanced, 3.5 mm Euroblock 3-pin x 2, balanced Speaker Output Barrier strip x 2 pairs Input Level -10.0 dBV: Sensitivity / Nominal, +10.0 dBV: Max before clip Protection Circuit Load Protection Power on/off: Mute output, Output voltage protection: Compress output,
DC-fault: Power supply shutdownAmplifier Protection Thermal: Limit the output → Mute → Shutdown
(Restored automatically)Power Supply Protection Thermal: Power supply shutdown, Over voltage: Power supply shutdown,
Over current: Power supply shutdownAmplifier Class Class D Cooling Conventional cooling, bottom to up airflow Power Consumption: Music Source Equivalent 30W (1/8 max. power, 3Ω, AC 100V, pink noise at all channels) Operating Temperature 0°C to + 40°C Storage Temperature -20°C to + 60°C Accessories AC power cable, 3.5 mm Euroblock plug (3-pin) x 2, Owner’s manual, Specification sheet Options RKH1 (Rack-mount Accessory) Other Rack-mountable when ensuring sufficient ventilation above and below the unit Dimensions (H x W x D) 2.1" (54 mm) x 8.5" (215 mm) x 11.4" (288 mm) Net Weight 4 lbs (1.8 kg) - Documents
