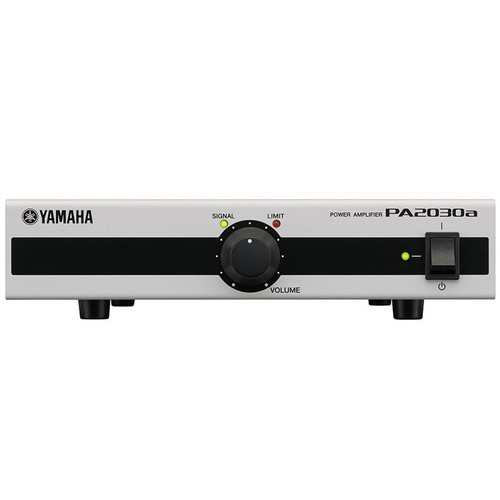

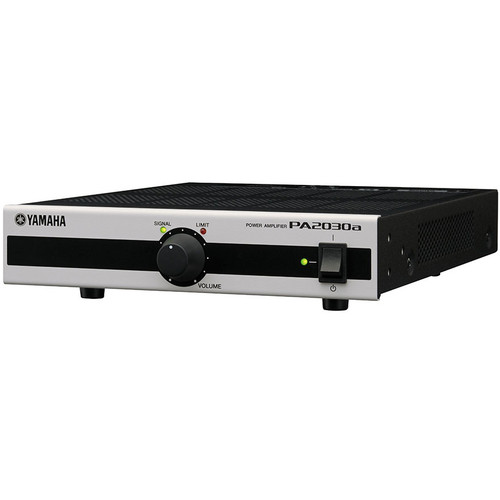

Yamaha PA2030a 2-Channel Compact Power Amplifier 70V/100V/4 Ohm/8 Ohm

Description

Details

With a quick, easy setup and simple intuitive operation, it's never been easier to bring your commercial space to life than with Yamaha's newest addition to their Commercial Installation Solutions lineup with the PA2030a compact power amplifier. This model combines a familiar, unassuming construction with efficient, flexible performance and offers 2-channel mixing capabilities with source EQ (Bass/Treble), as well as a number of the same acclaimed Yamaha's state-of-the art DSP technologies featured in their top of the line professional audio gear. Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the PA2030a provides you with a compact, yet powerful tool to help shape your ideal commercial sound environment.

Features

Features

Lo-Z/Hi-Z switchable compact Class-D power amplifier
Easy setup, and a user-friendly interface for effortless operation
Built-in EQ for optimum Yamaha VXC/VXS series speaker performance
Equipped with 1 stereo/2 mono line inputs
Service zones can be expanded by adding a MA2030a
Yamaha quality control ensures safe, reliable operation
Space-saving 1U half-rack size (Sufficient space must be provided above and below the unit for airflow and cooling)

Specification

Output Power - 1kHz	THD+N=1%: 3Ω/4Ω/8Ω, 30W x 2
Output Power - High impedance	70V/100V line: 60W x 1
Total Harmonic Distortion	≤ 0.1%
Frequency Response	0dB, -3.0dB, +1.0dB

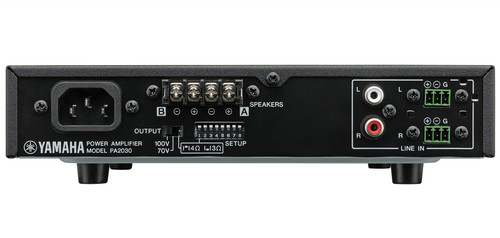

I/O Connectors
Stereo Input	LINE IN: Stereo RCA pin, unbalanced, 3.5 mm Euroblock 3-pin x 2, balanced
Speaker Output	Barrier strip x 2 pairs
Input Level	-10.0 dBV: Sensitivity / Nominal, +10.0 dBV: Max before clip
Protection Circuit
Load Protection	Power on/off: Mute output, Output voltage protection: Compress output, DC-fault: Power supply shutdown
Amplifier Protection	Thermal: Limit the output → Mute → Shutdown (Restored automatically)
Power Supply Protection	Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown
Amplifier Class	Class D

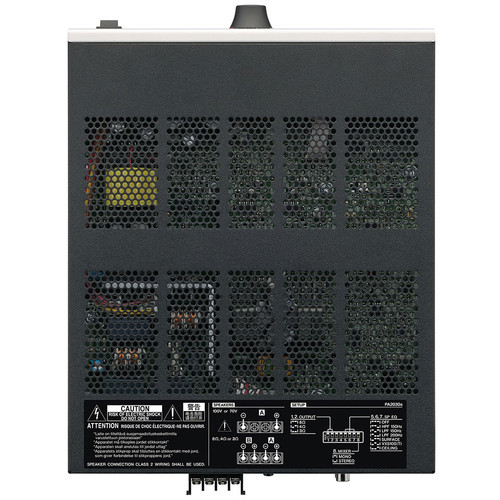

Cooling	Conventional cooling, bottom to up airflow
Power Consumption: Music Source Equivalent	30W (1/8 max. power, 3Ω, AC 100V, pink noise at all channels)
Operating Temperature	0°C to + 40°C
Storage Temperature	-20°C to + 60°C
Accessories	AC power cable, 3.5 mm Euroblock plug (3-pin) x 2, Owner’s manual, Specification sheet
Options	RKH1 (Rack-mount Accessory)
Other	Rack-mountable when ensuring sufficient ventilation above and below the unit
Dimensions (H x W x D)	2.1" (54 mm) x 8.5" (215 mm) x 11.4" (288 mm)
Net Weight	4 lbs (1.8 kg)
