Yamaha Retail Store Sound System with 8 VXS5 Wall Mount Speakers MA2030a Mixer Amplifier PA2030a Power Amplifier and CD-C600 CD Player
Part # RTSS-8VXS5MAPA2030
Model # RTSS-8VXS5MAPA2030

This Yamaha retail store sound system is an ideal solution for small to medium areas where you need background music that will enhance the customers’ shopping experience and help create an environment that customers want to return to again and again.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

* Required Fields

Pro Acoustics Price $0.00

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Retail Store Sound System with 8 Wall Mount Speakers, CD Player and Wall Control

This Yamaha Retail Store Sound System designed for medium to large coverage areas is a simple but high-quality audio system designed to enhance the customers' shopping experience. Simply connecting the source music player and microphone to the MA2030a mixing amplifier, and the outputs of the MA2030a to the store's speaker system resulting in a well-balanced high-performance BGM system that contributes greatly to the overall atmosphere. The MA2030a interface is easy to use and can be directly operated without difficulty, and a remote DCP control panel located at the sales counter adds even further convenience.

Music has become an indispensable feature at many apparel outlets. It can be anything from music that plays softly in the background to more dynamic sound intended to lift the customers' mood and increase sales, depending on the concept of the store. In all cases, operation must be as simple as possible so that the staff can concentrate on their jobs. Built on a foundation of musical instrument manufacture, Yamaha speaker systems are capable of reproducing music of any genre with full expression and atmosphere intact, and that in turn can contribute to the mood and image projected by the store. Combining those speaker systems with advanced Yamaha digital audio processing devices can help create an environment that customers want to return to again and again.

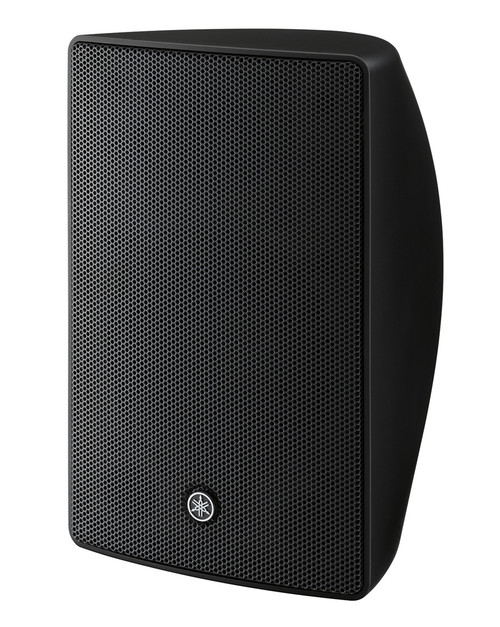

The Yamaha VXS5 5.25" full-range speaker is equipped with an internal transformer allowing it to operate at both high or low impedance simply by changing the tap on the rear of the speaker. The VXS speakers come with a dedicated bracket for safe, trouble-free speaker installation. Speakers can be mounted temporarily, freeing your hands to adjust mounting angles, which can now be configured consistently with ease thanks to the gear guides in the bracket connectors. Furthermore, the bracket base allows VXS Series speakers to be mounted on both walls and ceilings without the need to prepare a different set of brackets. The speaker cabinets are built tough to meet the demands of a wide variety of commercial environments, constructed from a carefully selected plastic with just the right tensile strength, and designed with optimized bass-reflex tuning to offer a firm, tight low-end. Several aspects of the speakers' design reflects a strong emphasis on functionality as well as the aesthetic features of the construction effectively enhancing sound quality and speaker performance without disturbing the interior décor of the installation. This concept is evident in the hexagonal design featured on the grille that actually improves sound clarity by raising the aperture ratio. Similarly, the smooth curves of the surface-mount cabinet's simple yet sophisticated design allow the speakers to be mounted closely to the wall—while still fully capable of panning and tilting to target service areas. Even the innovative design of the VXC's tweeter improves sound clarity by providing unrestricted woofer movement.

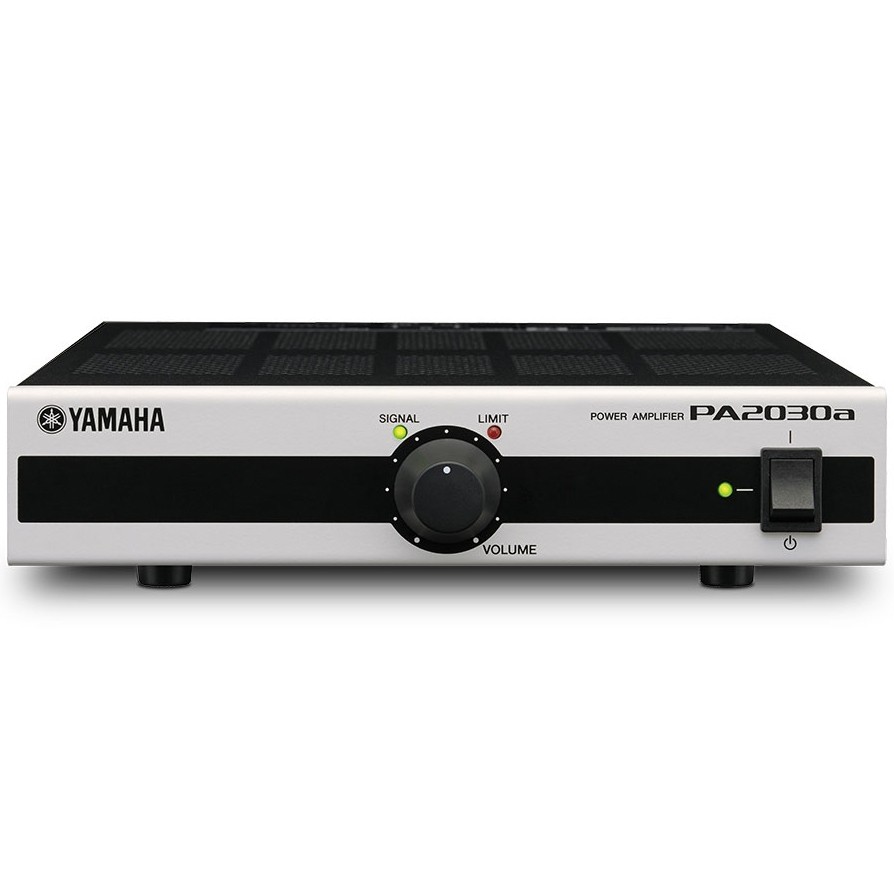

The Yamaha MA2030a and PA2030a are designed with a quick, easy setup and simple intuitive operation, it's never been easier to bring your commercial space to life than with Yamaha's newest additions to our Commercial Installation Solutions lineup, the MA2030a and PA2030a compact power amplifiers. Both models combine a familiar, unassuming construction with efficient, flexible performance, while the MA2030a offers 2-channel mixing capability with source EQ (Bass/Treble), as well as a number of the same acclaimed Yamaha's state-of-the-art DSP technologies featured in our top of the line professional audio gear. Whether providing background music for a cafe or restaurant, or powering a conference room or any number of applications requiring a microphone, the MA2030a and PA2030a provide you with a compact, yet powerful tool to help shape your ideal commercial sound environment.

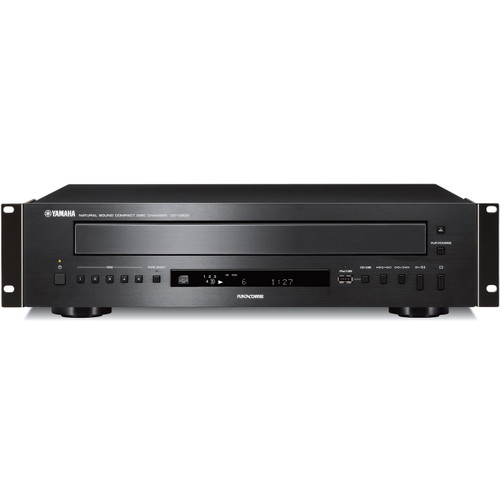

The Yamaha CD-C600RK offers the same Pure Direct feature popular in Yamaha amplifiers and receivers. Pure Direct is a special listening mode which ensures the highest quality analog audio output. Pure Direct shuts down the digital audio output with the press of a button on the front panel or the remote control and turns off the display, thus achieving the lowest possible noise interference.

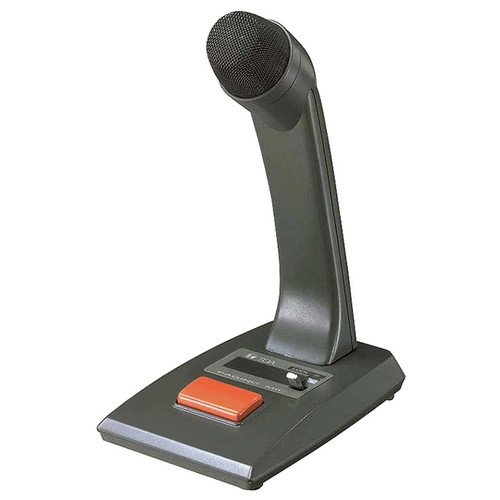

TOA's PM-660U is an elegantly styled, compact desk microphone for use in public address, paging and radio communication systems. Ideal applications include restaurants, offices, warehouses, transportation terminals, dispatch centers and entertainment facilities. Its smooth, natural response provides high-quality voice reproduction and excellent articulation to enhance the overall performance of your system. Compact and lightweight, the PM-660U requires a minimum of desk or counter space and is easy to handle.

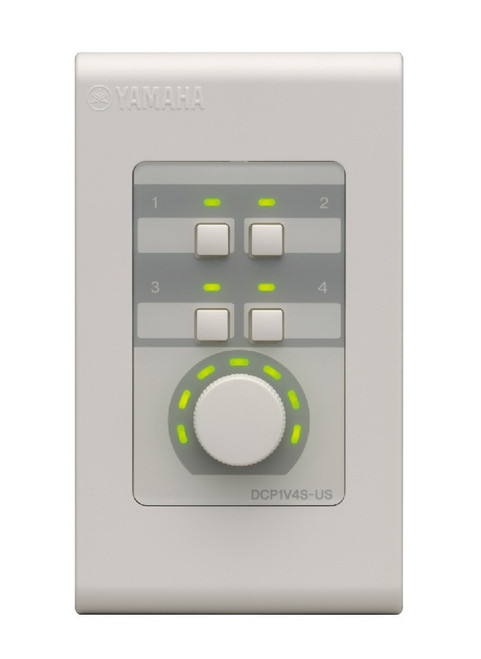

The Yamaha DCP1V4S Digital Control Panel connects to the Yamaha MA2030 Mixer Amplifier for remote volume control, microphone on/off switching, or triggering the built-in chime for announcements. DCP controllers provide flexible external control of several functions such as preset recall, levels, and SD card playback. The DCP1V4S is available in either US or EU standardized sizes, built to meet the specifications of most regions around the globe.

Not sure if this is the right Retail Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Features

Yamaha VXS5 5.25" Surface Mount Speakers:

  • Highly adaptable surface mount speakers
  • Flexible mounting for easier configuration
  • Pursuing the best sound for installation
  • Speaker Design
  • Satellite connection for optimized sound balance
  • Paintable speakers for your unique room design
  • EN54 compatible version with uncompromised performance
  • Available in Black or White

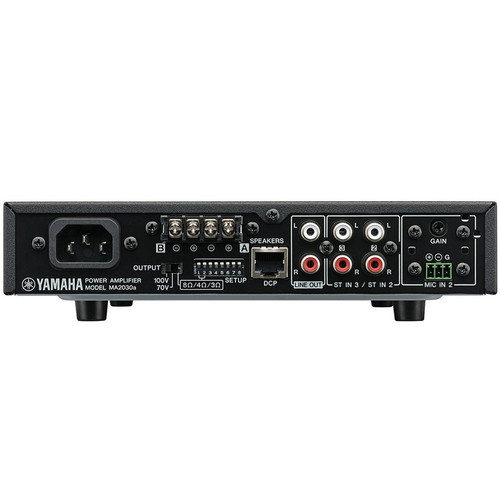

Yamaha MA2030a Mixer Amplifier:

  • Lo-Z/Hi-Z switchable compact Class-D mixer amplifier
  • 8Ω option to the existing low-impedance (30W x 2ch, 3Ω/4Ω selectable) output
  • High-pass and low-pass filters making it easier to incorporate subwoofers for enhanced audio quality
  • Easy setup, and a user-friendly interface for effortless operation
  • Flexible 3 stereo inputs and 2 microphone inputs
  • Advanced DSP functions for music playback and microphone use
  • Stereo source EQ with enhancer function
  • Built-in EQ for optimum Yamaha VXC/VXS series speaker performance
  • EQ optimized for Yamaha VXS10S/ST subwoofers also included
  • Service zones can be expanded by adding a PA2030
  • Remote volume control and microphone on/off switching via the optional DCP1V4S control panel
  • Yamaha quality control ensures safe, reliable operation
  • Space-saving 1U half-rack size (Sufficient space must be provided above and below the unit for airflow and cooling)

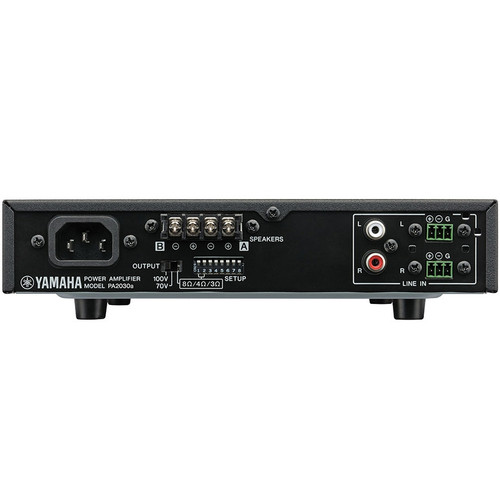

Yamaha PA2030a Power Amplifier:

  • Lo-Z/Hi-Z switchable compact Class-D power amplifier
  • Easy setup, and a user-friendly interface for effortless operation
  • Built-in EQ for optimum Yamaha VXC/VXS series speaker performance
  • Equipped with 1 stereo/2 mono line inputs
  • Service zones can be expanded by adding a MA2030a
  • Yamaha quality control ensures safe, reliable operation
  • Space-saving 1U half-rack size (Sufficient space must be provided above and below the unit for airflow and cooling)

Yamaha CD-C600-RK CD Player:

  • Pure Direct
  • USB port on front panel for iPod and other devices
  • Extremely sophisticated circuitry and layout
  • iPod compatibility
  • Short signal paths
  • CD-R/RW disc playback compatibility
  • High performance DAC for high conversion
  • MP3 and WMA compatibility
  • Precision with low noise
  • Numerous convenient playback functions
  • Laser pickup floating mechanism

TOA PM-660U Desktop Paging Microphone:

  • Cardioid dynamic element
  • Elegant, space-saving integral stand design
  • Push-to-talk bar with locking lever
  • Extra switch contact for mute or relay control
  • Five year warranty

Yamaha DCP1V4S Volume Control:

  • 1 volume & 4 switches equipped wall mount control panel
  • 1 DCP can be connected to 1 MA2030
System Includes

System Includes

  • (8) Yamaha VXS5 5.25" Surface Mount Speakers
  • (1) Yamaha MA2030a Mixer Amplifier
  • (1) Yamaha PA2030a Power Amplifier
  • (1) Yamaha CD-C600RK CD Player
  • (1) TOA PM-660U Desktop Paging Microphone
  • (1) Yamaha DCP1V4S Controller

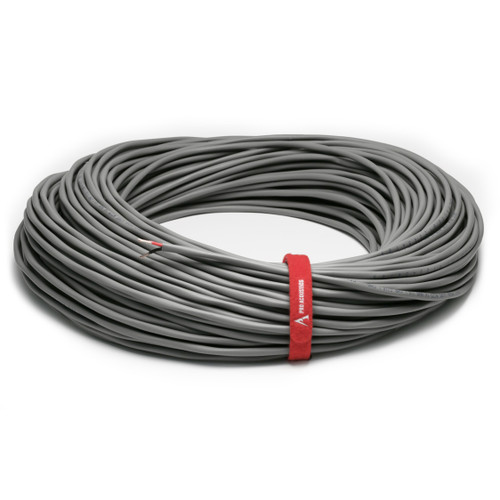

  • (500') West Penn 225 16/2 Non-Plenum Speaker Wire
  • (50') CAT5E Cable
