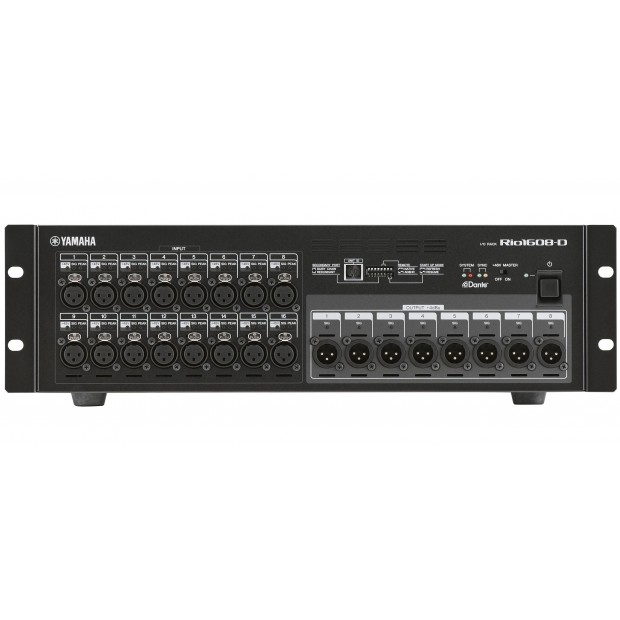

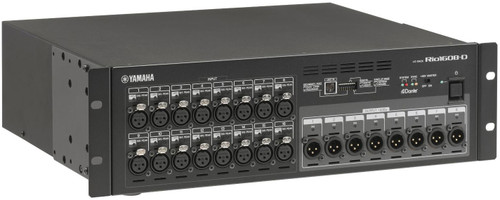

Yamaha Rio1608-D Dante-Compatible I/O Rack (Discontinued)
Part # RIO1608-D
Model # Rio1608-D

The Yamaha Rio1608-D is a Dante-compatible I/O rack, featuring 16 analog inputs and 8 analog outputs.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The pursuit of perfection is ongoing and will probably never end, but along the way Yamaha has introduced a number of innovations that have become industry standards offering performance and familiarity that discerning users continue to demand. By definition, “standards” are best kept as they are. With evolutionary refinements, of course.

Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.

Features

Features

  • A creative console for expressive engineering
  • Efficient, enjoyable operation
  • Scalable, versatile network capabilities
  • Long-distance Dante Network Capability
  • Remotely Controllable Internal Head Amplifiers
  • Gain Compensation Function
Specification
Signal Delay3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency to 0.25ms (one way), Fs=48kHz
Total Harmonic DistortionLess than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs= 44.1kHz, 48kHz
Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs= 88.2kHz, 96kHz
INPUT to OUTPUT, Input Gain= Min
Frequency Response+0.5, –1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs= 44.1kHz, 48kHz +0.5, –1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs= 88.2kHz, 96kHz
Dynamic Range108dB typ., INPUT to OUTPUT, Input Gain = Min
Crosstalk-100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min.
Power RequirementsKorea: 220V 60Hz, Other: 110-240V 50/60Hz
Power Consumption70W
OthersOperating temperature range: 0 - 40°C
Storage temperature range: –20 - 60°C
Dimensions (H x W x D)5.75" (144 mm) x 18.88" (480 mm) x 14.25" (361.5 mm)
Net Weight19.4 lbs (8.8 kg)
