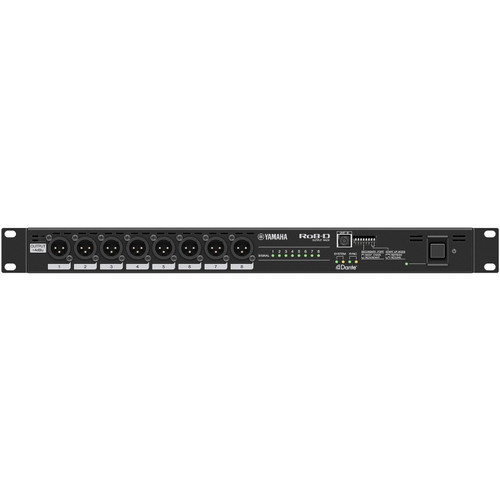

Yamaha Ro8-D Dante 8 Output Rack Unit (Discontinued)
Part # Ro8-D
Model # Ro8-D

The Yamaha Ro8-D eight output rack uses the same Dante audio network protocol as the CL series, providing new options for flexible system design and implementation.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

While maintaining the excellent sound quality of the CL series consoles as well as the Rio3224-D and Rio1608-D I/O racks, the Ri8-D and Ro8-D are offered as space-saving 1U size rack mount units that allow greater freedom for installation and I/O distribution.

The goal in developing the Ro8-D was to deliver the same level of sound quality as the CL Series, with even greater system setup and installation flexibility with Dante, as a portable output rack this versatile unit will give customers the capability to optimally support systems of just about any size and scale.

Both sound quality and system layout flexibility were enhanced in the CL series by separating I/O hardware from the mixing console itself.

CL Series components are not the only Yamaha professional audio devices that will work with the Ro8-D.

With the output-only Ro8-D it becomes possible to place inputs where you only need outputs where you only need outputs or any combination required for the application.

Features

Features

  • Compact 1U size for enhanced Dante system flexibility
  • Support not only for the CL series, but other Dante devices as well
  • Natural, musical sound that brings out the best in any console
  • Ro8-D used for output
Specification
Sampling frequency rate : External96kHz: +4.1667%, +0.1%, -0.1%, -4.0%
Signal DelayLess than 3ms INPUT to OUTPUT, connect with CL5 using Dante, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total Harmonic DistortionLess than 0.05% 20Hz-20kHz@+4dBu into 600Ω, Fs=44.1kHz, 48kHz
Less than 0.05% 20Hz-40kHz@+4dBu into 600Ω, Fs=88.2kHz, 96kHz
INPUT to OUTPUT, Input Gain = Min.
Frequency Response+0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=44.1kHz, 48kHz
+0.5, -1.5dB 20Hz-40kHz, refer to +4dBu output @1kHz, INPUT to OUTPUT, Fs=88.2kHz, 96kHz
Dynamic Range108dB typ., INPUT to OUTPUT, Input Gain = Min
Crosstalk-100dB, adjacent INPUT/OUTPUT channels, Input Gain = Min.
Power Requirements120V 60Hz
Power Consumption35W
Dimensions (H x W x D)1.75" (44 mm) x 18.75" (480 mm) x 14.13" (359 mm)
Net Weight9.7lbs (4.4 kg)
