- Description
Details

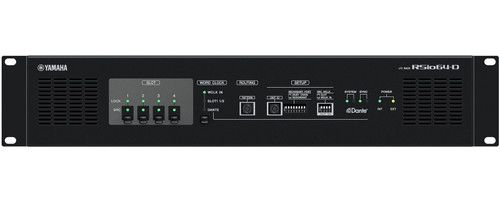

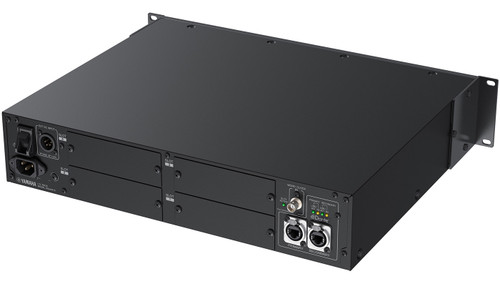

The Yamaha RSio64-D is a Dante/Mini-YGDAI format converting audio interface that can handle up to 64 inputs and 64 outputs while providing router functionality. It allows a wide range of input/output formats to be connected to a Dante network via 4 card slots that accept the comprehensive range of Mini-YGDAI cards available, making it an ideal choice for a wide range of live sound, broadcast, recording, post production, and other applications. The RSio64-D can also be remotely controlled from CL series and QL series digital consoles.

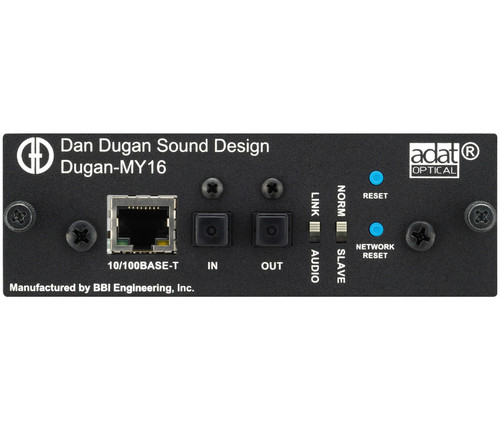

The RSio64-D is compatible with more than 30 different Mini-YGDAI cards. It is not just limited to I/O cards that handle formats like AES/EBU or ADAT, but also accepts processing cards that provide capabilities such as Lake processing and Dan Dugan automatic mixing. Each Mini-YGDAI slot includes a sample rate converter (SRC) so that devices operating on different word clocks can be connected without causing noise or signal interruptions. Reliability is excellent too, with full support for Dante network redundancy (primary/secondary) as well as an EXT DC INPUT for redundant power supply.- Features
Features
- Accepts a wide range of Mini-YGDAI input/output and processing cards
- Seven general routing presets, including routing between Mini-YGDAI cards
- Supports matrix patching from R Remote V3 or a CL/QL series console
- Sample rate converters for all four Mini-YGDAI slots
- EXT DC INPUT for redundant power supplies
- Supports Dante redundancy (primary/secondary)
- Specification
SRC SRC Lock Range: 39.7 kHz - 101.7 kHz, Sample Rate Ratio Limit: 1:2.6 to 2.6:1 Power Requirements 100-240 V 50/60 Hz Power Consumption 60W Dimensions (H x W x D) 3.5" (88 mm) x 18.9" (480 mm) x 14.4" (365 mm) Weight 13.5 lbs (6.1 kg) - Documents
Documents
