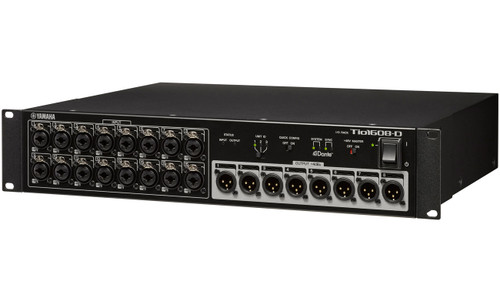

The Tio1608-D is a Dante-equipped I/O rack with 16 microphone/ line inputs and 8 line outputs. Tio racks feature the same recallable D-PRE™ microphone preamplifiers as the TF series delivering extraordinarily natural and musical sound. In combination with TF series consoles, Tio racks can be connected using up to three units with a fast and easy setup.
Note: The NY64-D Dante Digital Interface Card is required.
- Features
Features
- Digital stage box for Yamaha TF series consoles
- 16 high-quality mic preamps are controllable from your console
- Connect up to 3 simultaneously for 48 inputs and 24 outputs
- Requires NY64-D Dante interface card (sold separately)
- Connects to TF series consoles via standard Cat 5e LAN cable (sold separately)
- Specification
External Sampling Frequency Rate 44.1kHz or 48kHz Total Harmonic Distortion Less than 0.1% +4dBu@20Hz-20kHz into 600Ω, Gain=+66dB / Less than 0.05% +4dBU@20Hz-20kHz into 600Ω, Gain=-6dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz - Measured with a -18dB/octave filter @80kHz Frequency Response +0.5, -1.5dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT, Fs=44.1kHz or 48kHz Dynamic Range 108 dB, INPUT to OUTPUT, Gain=-6dB / 112 dB, DA Converter Hum & Noise Level Equivalent input noise: -128dBu, Gain=+66dB *Measured with A-weighting filter
Residual output noise: -88dBu, ST master off *Measured with A-weighting filterCrosstalk -100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB *Measured with a -30dB/octave filter @22kHz Heat Dissipation 100-240V, 50/60Hz, 43.5kcal/h Power Requirements 100-240V, 50/60Hz Power Consumption 50W Dimensions (H x W x D) 3.5" (88 mm) x 18.88" (480 mm) x 14.38" (364 mm) Net Weight 12.6 lbs (5.7 kg) - Documents
