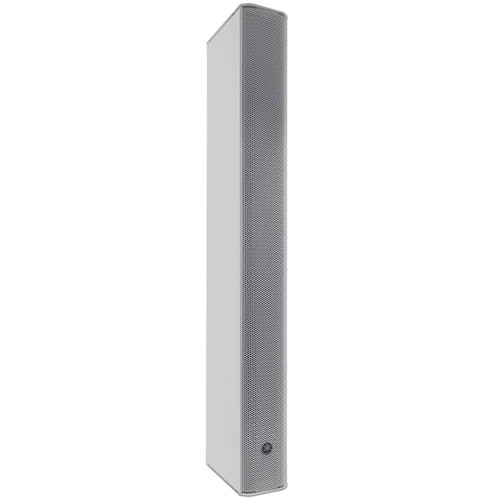

Yamaha VXL1-8 Slim Column Array Loudspeaker
Part # VXL1B-8
Model # VXL1-8

The VXL1-8 is a compact slim column array loudspeaker with 8 1.5" drivers, ideal for smaller commercial installations such as retail stores, malls, office spaces, churches and educational institutions –anywhere high-quality audio and pattern control is needed.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

* Required Fields

Pro Acoustics Price $378.99

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The VXL1-8 is a compact slim column array loudspeaker with 8 1.5" drivers, ideal for smaller commercial installations such as retail stores, malls, office spaces, churches and educational institutions –anywhere high-quality audio and pattern control is needed. It's slim and sleek design with both black and white exterior options, blends seamlessly into the surrounding interior design.

It features a 40-degree coverage in a vertical plane and can be adjusted for flexible coverage. Multiple units can be connected vertically for deeper coverage, or connected next to each other to create a very tight horizontal dispersion array.

Features

Features

  • 1.5 inch (3.75 cm) full-range loudspeaker units with neodymium magnets
  • 170° horizontal and 40° vertical dispersion for uniform SPL over a wide area
  • Slim design complements any interior décor
  • Available in black or white
  • Enclosures can be painted to match the surroundings
  • Wall mount bracket supplied
  • Optional hardware for a wide range of installation needs
Specification
Frequency Range (-10dB)70 Hz – 20 kHz
110 Hz - 20kHz 1 (w/ port cover)
Coverage AreaHorizontal: 170°, Vertical: 40°(+20° – -20°)
Drivers(8) 1.5" (3.75 cm) cone
Power RatingNoise: 40W
PGM: 80W
Peak: 160W
Nominal Impedance16Ω
I/O ConnectorsEuroblock (2 pin) × 2 (input: +/-) Max. wire size AWG 12 (3.3 mm²)
IP-RatingDust and water resistant : IP35
Dimensions (H x W x D)18.9" (480 mm) x 2.1" (54 mm) x 4.1" (104 mm)
Weight4.6 lbs (2.1 kg)
