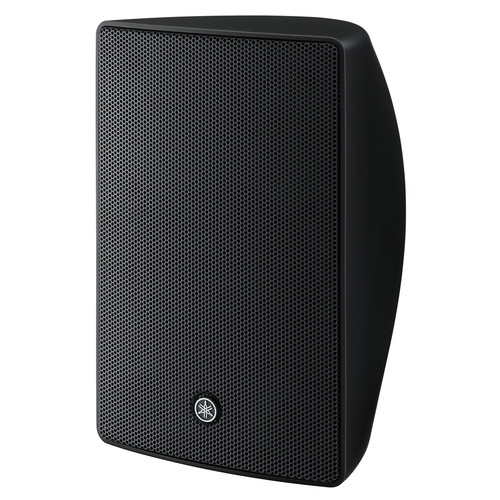

Yamaha VXS5 5.25" Surface Mount Speaker 8Ω and 70V Input 114dB Max SPL - Pair
Part # VXS5
Model # VXS5

The Yamaha VXS5 surface mount speakers are designed to accommodate a growing list of applications in the installation market.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

* Required Fields

Pro Acoustics Price $332.98

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The VXS Series lineup features two full-range models and two subwoofers, allowing you to choose the optimal model for a particular application and, if necessary, combine it with a subwoofer for venues that require a stronger bottom end. VXS Series full-range models are equipped with internal transformers that allow them to operate at both high or low impedance simply by changing the tap on the rear of the speaker. Full-range models also offer IP45-rated protection, ensuring worry-free use in outdoor applications.

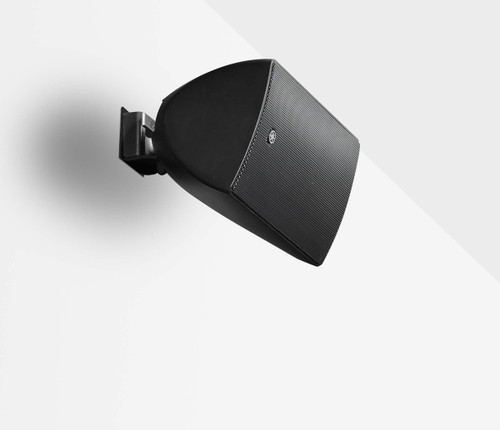

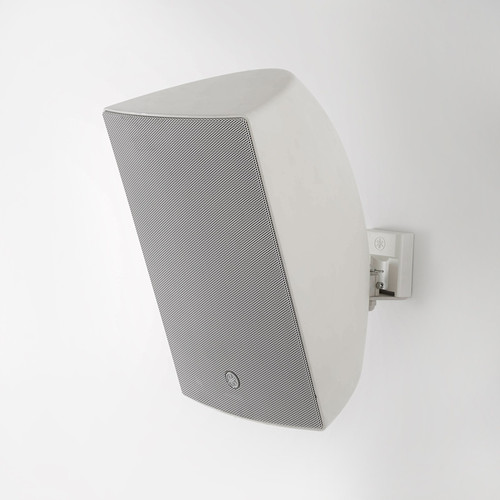

VXS speakers come with a dedicated bracket for safe, trouble-free speaker installation. Speakers can be mounted temporarily, freeing your hands to adjust mounting angles, which can now be configured consistently with ease thanks to the gear guides in the bracket connectors. Furthermore, the bracket base allows VXS Series speakers to be mounted on both walls and ceilings without the need to prepare a different set of brackets.

Both series feature newly customized transducers with large, powerful magnetic circuits that increase driving and braking force substantially, as well as dedicated tweeter diaphragms and speaker cone paper made from a carefully-created blend of materials that help optimize sound reproduction. Cabinets are built tough to meet the demands of a wide variety of commercial environments, constructed from a carefully selected plastic with just the right tensile strength, and designed with optimized bass-reflex tuning to offer a firm, tight low-end.

Several aspects of these speakers' design reflect a strong emphasis on functionality as well as the aesthetic features of their construction—effectively enhancing sound quality and speaker performance without disturbing the interior décor of the installation. This concept is evident in the hexagonal design featured on the grille of both series' speakers that actually improves sound clarity by raising the aperture ratio. Similarly, the smooth curves of the surface-mount cabinet's simple yet sophisticated design allow the speakers to be mounted closely to the wall—while still fully capable of panning and tilting to target service areas. Even the innovative design of the VXC's tweeter improves sound clarity by providing unrestricted woofer movement.

Features

Features

  • Highly adaptable surface mount speakers
  • Flexible mounting for easier configuration
  • Pursuing the best sound for installation
  • Speaker Design
  • Satellite connection for optimized sound balance
  • Paintable speakers for your unique room design
  • EN54 compatible version with uncompromised performance
  • Available in Black or White
  • Sold in Pairs
Specification
Speaker Type2-Way
Frequency Range80Hz - 20kHz
ComponentsLF: 5.25" Cone; HF: 0.75" Soft dome
Coverage Angle120 x 120
Nominal Impedance
Power RatingNOISE: 75W; PGM: 150W
Transformer Taps100V: 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)
70V: 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ)
Sensitivity89dB SPL
Maximum SPL114dB SPL
I/O Connectors1x Euroblock (4P)
WaterproofIP45

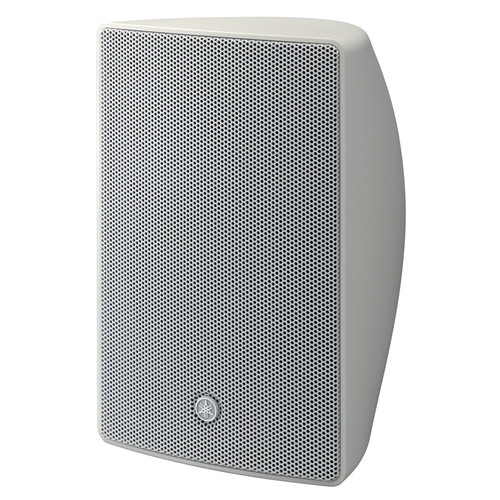

FinishVXS5: Black; VXS5W: White
PackagingPackaged in pairs
Dimensions (H x W x D)11.0" (280 mm) x 6.9" (176 mm) x 6.4" (163 mm)
Net Weight7.9 lbs (3.6 kg)
