Yamaha CS-700 AV Video Sound Collaboration System for Huddle Rooms - AV Only (Discontinued)
Part # CS-700AV-NA
Model # CS-700AV

The Yamaha CS-700 AV All-In-One 1080p, 30fps wall-mount system combines ultra-wideband audio with high-quality video to fulfill video, audio, and collaboration requirements in one simple, wall-mounted system addressing all communication and collaboration requirements of the huddle room. Audio, video and screen sharing is accomplished through one USB cable. The integrated remote management capability enables IT departments across the world to remotely monitor and manage their huddle room installations.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

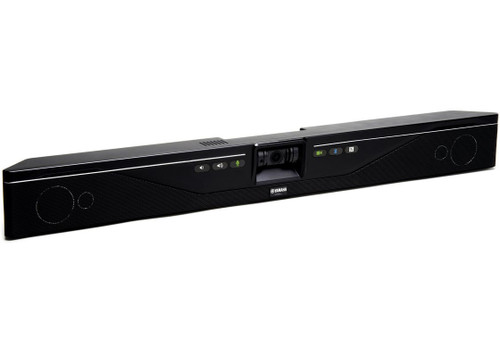

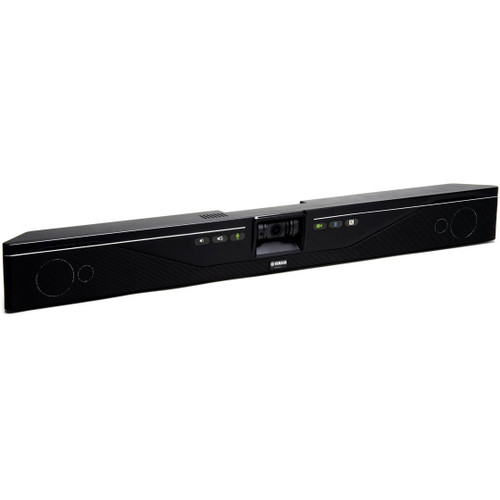

Yamaha CS-700 AV Video Sound Collaboration System for Huddle Rooms

The Yamaha CS-700 video sound collaboration system is specifically designed as an all-in-one unit to equip huddle rooms with best in class audio, video, and screen sharing capability. Huddle rooms have unique requirements, as they typically are small sized rooms with limited tabletop space. The Yamaha CS-700 combines ultra-wideband audio with high-quality video to fulfill video, audio, and collaboration requirements in one simple, wall-mounted system addressing all communication and collaboration requirements of the huddle room. Audio, video and screen sharing is accomplished through one USB cable. The integrated remote management capability enables IT departments across the world to remotely monitor and manage their huddle room installations.

Remote Manageability

Managing up to hundreds of huddle rooms is a challenge for any IT department. The Yamaha CS-700 enables remote monitoring and management of the units as well as configuring units in bulk, and upgrading them remotely and automatically through the IP interface. Managing technology in the huddle room just became way simpler!

Video

Due to the small size of huddle rooms, participants sit close to displays and cameras in these rooms, in the past requiring panning of video cameras to see the whole room. The Yamaha CS-700 industry-leading 120 degree ultra-wide angle camera captures all meeting participants in one field of view. The CS-700 camera covers 80% more area in the whole room, removing the hassle of panning and zooming cameras to see everybody in the room. The high pixel count of the CS-700 ensures that every expression is captured clearly for people up to 10ft/3m from the camera. It is truly a "set it and forget it" video system.

Audio

"Hear every word" has never meant more to meeting success than today. The CS-700 takes advantage of years of professional and corporate audio experience within Yamaha and Revolabs. The CS-700 features a beamforming microphone array that picks up every word spoken in the room and delivers it to the far end. A four-element speaker bar provides amazing audio in the room, ensuring that every word spoken at the far end is heard. Combine that with award-winning audio processing technology integrated in the CS-700 and you have easy, natural conversations between meeting participants with clarity and intelligibility for all.

USB and SIP Support

The Yamaha CS-700 becomes the one communication device in the room. It supports business communication applications such as Microsoft® Skype for Business™, Google Chromebox for Meetings™, BlueJeans®, Zoom®, GoToConference™, Vidyo® and others. In addition, the CS-700 provides a SIP interface to the corporate call manager, replacing the need for a separate conference phone in the huddle room. USB and SIP communications can be easily bridged in the CS-700, expanding the communication opportunities even further. And Bluetooth allows for fast and easy audio connections, instantly turning a mobile or computer call into a conference call.

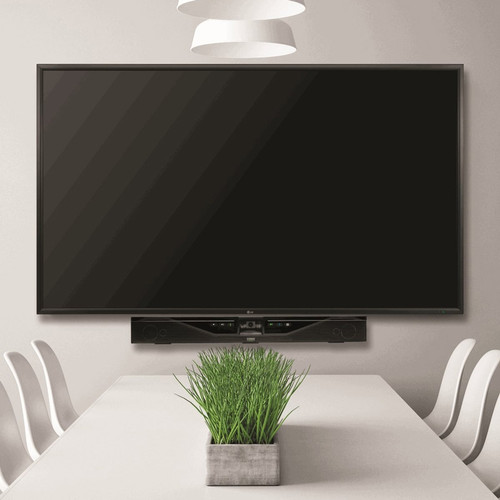

Wall Mount

Table space in huddle rooms is typically at a premium. The Yamaha CS-700 is a wall mount system, eliminating any need for table-top equipment in the huddle room. The wall mount provides simple installation and makes connecting the wires to the CS-700 easy by use of a special pivot design feature. If you can drill a hole, you can install the CS-700.

Features

Features

  • USB audio and video support
  • Beam forming microphone array
  • 4 speaker elements
  • Ultra-wide angle camera with 120 degree field of view
  • Integrated SIP interface for Call Manager integration

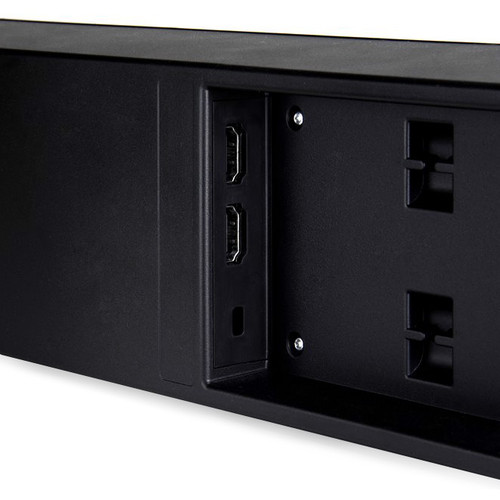

  • Dual display HDMI screen share capability via DisplayLink® interface
  • Remote Management support
Specification
AudioSpeaker Bar: 4 Speaker elements with tweeter and mid-Woofer on left and right
Speaker Frequency Response: 160 – 20,000 Hz
Max SPL: 90 dB at 1 M
Microphones: 4 microphone beamforming array
Microphone Coverage: 180 degrees audio pickup
Microphone Frequency Response: 160 – 16,000 Hz
Full Duplex Audio: Yes
Echo Cancellation: Ultra wideband AEC
LED Indicator: Mute/unmute

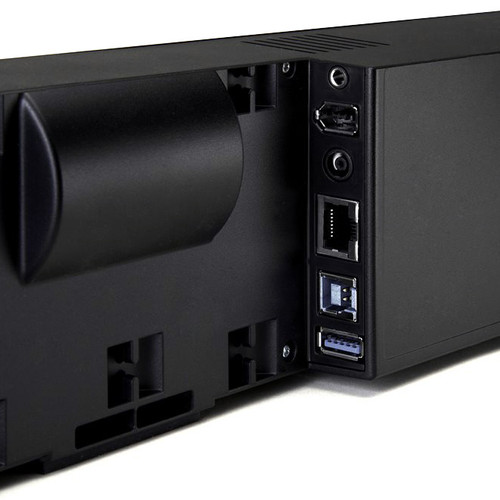

InterfacesMount: Wall Mount Bracket for above or below display mounting
Connector: USB with strain relief
USB Host Port: Audio, video, HID and graphics display supported over USB 3.0
Ethernet: RJ 45
Bluetooth®: Audio only
Aux Audio Input: 3.5 mm Stereo
CameraCamera Sensor: High Definition CMOS
Image resolution: 1080p, 30fps (USB 3.0)
Privacy Cover: Manual privacy cover
LED Indicators: Camera Operational LED
UVC Support: UVC 1.5
Field of View: 120 degrees
ComplianceSafety: IEC60065, IEC60950, IEC62368
EMC: CISPR13/CISPR22/CISPR32/ FCC/J55013/ ETSI EN 300 328 / ETSI EN 302 291-2 / ETSI EN 300 330-2 EN55024/ CISPR24 or 35 and ETSI EN 301 489-1
Environmental: RoHS, Reach, WEEE
Input Voltage100-240 VAC
Input Current1A
Input Frequency50 - 60 Hz
Power Consumption36W
Power Cord Length10ft/3m
Dimensions (H x W x D)3.9" (98.75 mm) x 34" (861.7 mm) x 2.7" (68.5 mm)
Weight with Bracket7.3 lbs (3.3 kg)
