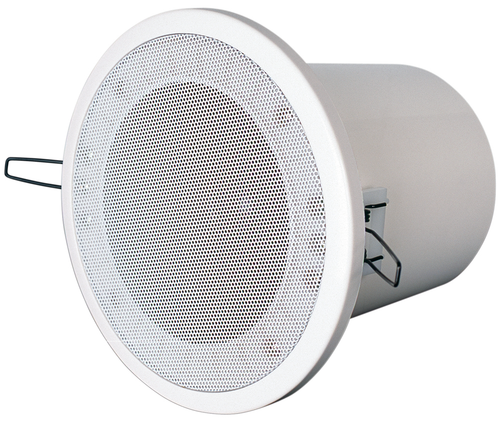

Yorkville C160W Coliseum Mini Series 4" Pot Light In-Ceiling Speaker (Discontinued)
Yorkville C160W Coliseum Mini Series 4" Pot Light In-Ceiling Speaker (Discontinued)
By Yorkville

Yorkville C160W Coliseum Mini Series 4" Pot Light In-Ceiling Speaker (Discontinued)

Write a Review
Part #:
C160W
Model #:
C160W
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Yorkville C160W Coliseum Mini Series Pot Light In-Ceiling Speaker is ideal for any paging or background music system. It is a 10W, 4" diameter flush mount in-ceiling speaker designed specifically for quick and simple installation in office and retail environments.

Description

The Yorkville C160W Coliseum Mini Series Pot Light In-Ceiling Speaker is ideal for any paging or background music system. It is a 10W, 4" diameter flush mount in-ceiling speaker designed specifically for quick and simple installation in office and retail environments. The C160W has built in 70V transformer and taps, and can operate at 2.5W, 5W or 10W. It also features an efficiency of 92dB (1 W/m) and a frequency response of 100 - 16kHz.

Rugged ABS plastic construction in a 'pot light' format with an all metal grille make the C160W ideal for any drywall or drop tile ceiling mount application. The C160W can be easily installed and driven by any 70V amplification system, including the Coliseum CA1 or CA1T.

Features
  • 4" flush mount 'pot light' ceiling speaker
  • 70V operation
  • Power taps at 2.5, 5 and 10W
  • Closed back design
  • Mounting hardware included

Specifications
Type Ceiling Speaker
System Full Range ‘Pot Light’
Program Power 10W
Nominal Impedance (ohms) 70V Transformer / Passive 8Ω
70V Transformer Taps 2.5W / 5W / 10W
Sensitivity (dB @1W/1m) 92
Frequency Response (+/-3dB) 150 - 20k
Woofer 4"
Inputs Solder Lug
Cabinet Construction Injection Molded ABS Plastic
Standard Color White
Standard Hardware Ceiling Mount Clips
Dimensions (Dia x D) 5.6" (142.24 mm) x 4.8" (121.92 mm)
Weight 3 lbs (1.4 kg)
