This 6 input unit features extensive muting and output options along with a very unique bridge in/out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays. The VCA control port may be assigned to the BGM input or globally for the entire amplifier. Optional VCA control AAVC-10K.

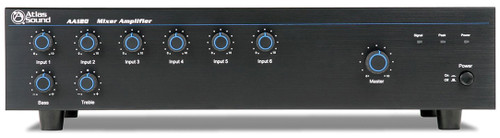

With five microphone/line inputs and one stereo line input, the AA120 will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. This six input mixer amplifier features muting and output options along with a very unique Bridge In/Out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays. VCA remote level control circuitry is included which may be assigned to the BGM input or globally for the entire amplifier.
The output power of 120 Watts will match nicely with Atlas Sound FAP, SM, SD, and GD Series loudspeakers. 25V, 70.7V, 100V, and 8Ω outputs are provided.- Features
Features
- 120 Watt 6 Channel Mixer Amplifier
- 5 Mic/Line Inputs with Phantom Power and 1 Stereo Summing AUX Input
- Bridge In/Out Circuit with Balanced Link / Internal Relay to Engage Circuit is Perfect for Small Room Combining Systems Eliminating the Need for External Electronics
- Pre Out / Power Amp In for Patching External Processors
- Remote or VOX Mute Capabilities
- Special Low Cut Filter is 6dBu/octave at 400Hz and also Bypasses Front Panel Bass Control to Allow Use with Paging Horns like APX40TN and AP-15T
- Zone 2 MOH Out from CH6 Line Source
- UL60065 Listed
- Specification
Power Output 120W Power Consumption 300 Watts Frequency Response 50Hz – 20kHz (±3dB) Connector Type Phoenix and RCA Safety Listed 60065-ROHS 2006 Compliant Dimensions (H x W x D) 4.22" (107 mm) x 16.54" (420 mm) x 14.06" (357 mm) Shipping Weight 26.44 lbs (11.99 kg) - Documents
