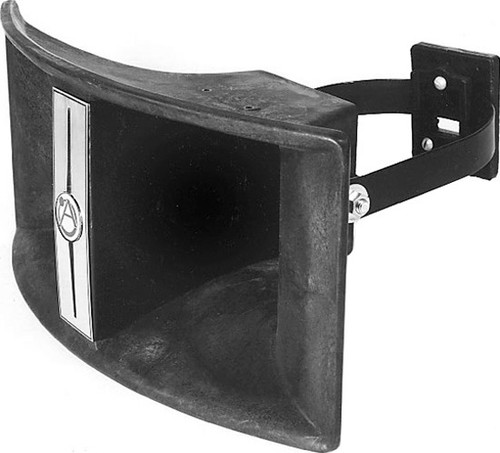

The Atlas Sound BIA-100 High-Efficiency Bi-Axial Horn Provides 130° x 60° Wide-Angle Sound Coverage is the original reflex horn featuring a bi-axial design with twin air columns and exponential bell for wide-angle coverage with a linear frequency response. Ideal for High-Intelligibility Voice, Signaling and Full-Range Music in Indoor/Outdoor Applications.
The horn provides excellent acoustic loading maintained to a 350 Hz low-frequency roll-off and optimizes delivery of high and mid-range signal levels. BIA-100 is designed for use with AtlasIED PD Series compression drivers and models having 13/8" -18 male threads and 0.707" diameter throat openings.
The easily-mounted horn features the labor-saving patented gimbal-mount bracket assembly (U.S. Patent # 4,325,529) which allows for directional positioning up to 180° vertically and horizontally. It includes a steel bracket, cast-mounting base, and provisions for flange installation. The weather-resistant, non-glare matte black foam horn is resistant to resonance. Bracket assembly is finished in durable epoxy.
- Features
Features
- Accepts all Atlas Sound and 1.38" - 18 thread compression drivers with throat openings of 0.7" dia.
- High-efficiency bi-axial horn provides 130° x 60° wide-angle sound coverage
- Nominal frequency response of 350 - 8,000 Hz for high-intelligibility voice, signaling and full-range music in indoor/outdoor applications
- Patented 180° gimbal-mount for installation flexibility
- Specification
Dispersion 130° x 60° Dimensions (H x W x D) 10.25" (260.35 mm) x 21" (533.4 mm) x 19.25" (48.895 mm) Shipping Weight 16 lbs (7.26 kg) - Documents
