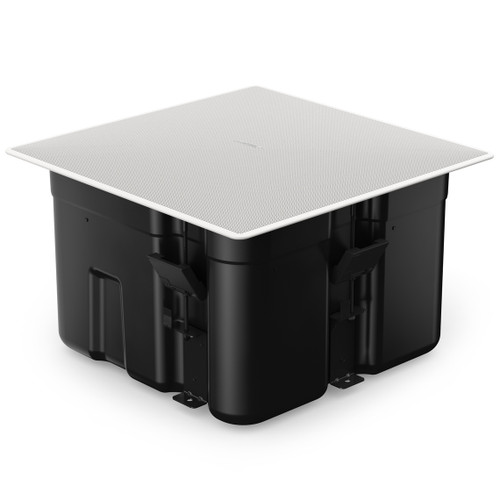

Bose Professional EdgeMax™ EM180 in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide® technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax™ loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.
Bose Professional EdgeMax Premium In-Ceiling Speakers are ideal for applications such as retail stores, restaurants, hospitality venues, hotels, offices, meeting rooms and architectural custom sound design applications. They feature magnetically attached white grilles for quick access to wiring, and 8 Ω or 70/100V transformer tap settings, as well as new auto-hold, spring-loaded mounting arms for fast and easy installations, and they ship with an accompanying tile bridge. They are UL1480 listed for air-handling plenum space code requirements.
- Features
Features
- PhaseGuide technology produces unique asymmetrical vertical pattern for room-filling sound

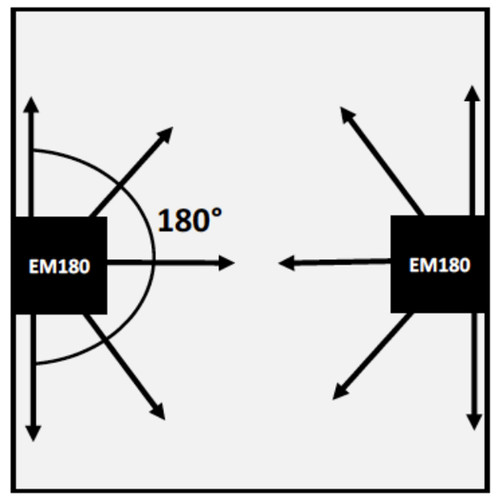

- EdgeMax EM180 provides nominal 180° horizontal coverage from center ceiling-wall locations
- Full-frequency range 60 – 18,000 Hz (-10 dB)
- Maximum SPL up to 119 dB continuous and 125 dB peak
- 2-way system combines Bose 1.3"-diaphragm compression driver and 8" woofer
- Passive crossover with 8Ω or 70/100V transformer taps
- New auto-hold, spring-loaded mounting arms for fast, easy installs; Ships with tile bridge
- UL1480 listing for air-handling (plenum) space installation
- Magnetically attached white grille for quick access to wiring and tap settings
- Black grille and rough-in pan accessories will be available
- PC-PBT plastic and die-cast aluminum mounting anchor and baffle material
- Safety cables are no longer required
- Black Plastic Torque Caps on anchor screws have been removed and are no longer required, improving installation speed
- Specification
Frequency Response (-3 dB) 70 – 16,000 Hz Frequency Range (-10 dB) 60 – 18,000 Hz Nominal Coverage Pattern 180° H x asymetrical 75° V (-90° to -15° referenced to ceiling) Transformer Taps 70V: 2.5, 5, 10, 20, 40, 80 W, bypass
100V: 5, 10, 20, 40, 80 W, bypassLow Frequency 1 x 8-inch woofer (1.5-inch voice coil) High Frequency 1 x compression driver (1.3-inch voice coil) Nominal Impedance 8 ohms (transformer bypass) Enclosure Material Engineered-plastics front baffle with integrated steel formed enclosure Grille Micro perforated steel, powder-coated finish, white Environmental Indoor only; UL-1480A listed for plenum-space installation Connectors Euro block 6-pin connector with loop-through, front-baffle mounted Suspension / Mounting Safety cables are no longer required Accessories Black grille, rough-in pan for new construction Maximum Ceiling Thickness 3.2" (80 mm) Ceiling Cutout and Clearance 13.6" (345 mm) x 13.6" (345 mm) with 9.3" (236 mm) mounting depth Dimensions (H x W x D) 13.4" (339 mm) x 13.4" (339 mm) x 9.8" (249 mm) enclosure
15.4" (390 mm) x 15.4" (390 mm) x 0.5" (13 mm) grille flange, as mountedNet Weight 22.2 lbs (10.1 kg) with grille Shipping Weight 29 lbs (12.5 kg) - Documents
