Small Bose EdgeMax™ Command and Control Center Sound System
This command and control room sound system is a complete audio solution designed to provide clear communications for:
- Emergency Operations Centers (EOC)
- Operations Control Centers (OCC)
- Military and Government Command Centers
- Federal and Law Enforcement Mission-Critical Communications Rooms
- Air Traffic Control Centers(ATC)
- Transportation Operations Control Rooms
- Emergency Dispatch Centers
- Virtual Command Centers (VCC)
- Security Fusion Centers
- Network Operations Centers (NOC)
In these 24/7 work environments, monitoring news, weather, traffic, security feeds and radio signals for potential problems is essential. With simple command interfaces and intelligently designed software controlling their video and data sources, these facilities will house multiple monitoring and communication systems. Control centers are tasked with ensuring the smooth monitoring and control of high alert and fast pace, mission-critical environments such as air traffic control (ATC), police departments, fire-rescue departments, businesses with private security, the American Public Transportation Association (APTA), United States Central Command (CENTCOM), Department of Defense (DoD), Federal Bureau of Investigation (FBI), Drug Enforcement Administration (DEA), Central Intelligence Agency (CIA), Department of Homeland Security (DHS), National Aeronautics and Space Administration (NASA) as well as nuclear power plants, power-generating stations, oil refineries, chemical plants and many others.
This operations center audio system includes a Bose EdgeMax™ EM180 in-ceiling premium loudspeaker with proprietary Bose PhaseGuide® technology designed to create room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. To complete this communications system, it also includes the Pure Resonance Audio MA30BT Bluetooth 7-channel mixer amplifier, Sennheiser XSW2-ME3 wireless headworn microphone system, Atlas Sound AP-S15LA power conditioner, 607-15 7RU rack and 50 feet of 16 gauge speaker wire.
For maximum coverage, the unique Bose EdgeMax™ speakers should be spaced approximately 30 feet apart and are ideal for ceilings up to 14 feet.

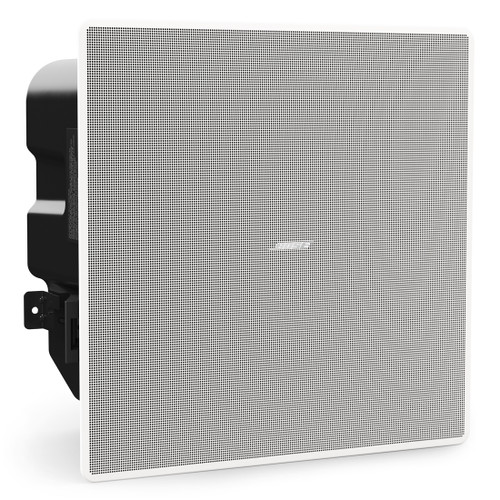

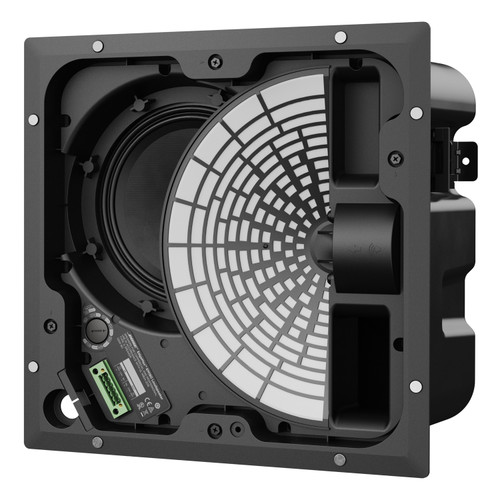

Bose EdgeMax™ EM180 In-Ceiling Loudspeaker

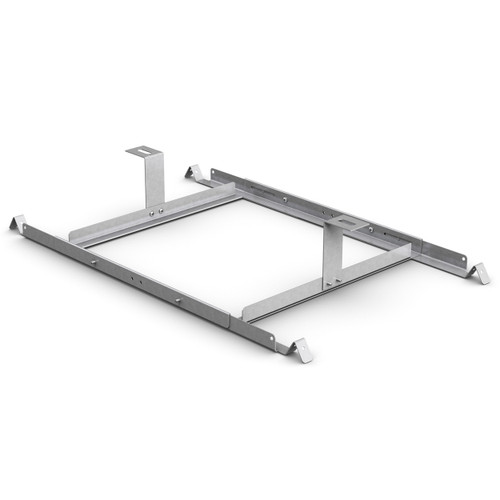

The Bose EdgeMax™ EM180 in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide® technology to create a category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries and up to 14ft ceilings, EdgeMax™ loudspeakers provide improved audio quality and coverage, while reducing the number of required units. This Bose Professional EdgeMax™ Premium In-Ceiling Speaker is ideal for applications where mounting speakers in the middle of the room is not an option. They feature magnetically attached white grilles (black grilles can be ordered separately) for quick access to wiring, and 8Ω or 70/100V transformer tap settings, as well as auto-hold, spring-loaded mounting arms for fast and easy installations, and they ship with an accompanying tile bridge. They are also UL1480 listed for air-handling plenum space code requirements.
Pure Resonance Audio MA30BT 7-Channel Commercial Mixer Amplifier with Bluetooth
This 7-channel mixer-amplifier from Pure Resonance Audio with built-in 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70 Volt, 100 Volt, 8-ohm or 4-ohm outputs, and a compact size and interface are all combined to make this mixer-amp an easy choice for any application in need of background music and general announcements.

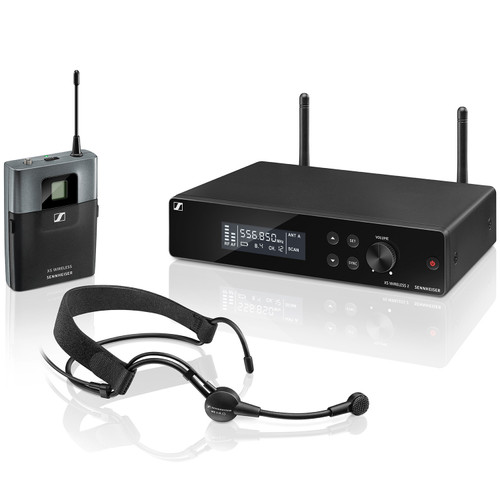

Sennheiser XSW2-ME3 Vocal Wireless System with Condenser Cardioid Headmic
High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 HEADMIC SET is an easy to use all-in-one wireless system for singers and performers, excellent for live sound that involves dancing and singing all at the same time. Metal receiver housing and rackmount kit included.
Atlas Sound AP-S15A 15A Power Conditioner and Distribution Unit
The AP-S15A features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies. Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15A's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds. The AP-S15A includes a 12 foot removable IEC cord with retainer.
Atlas Sound 607-15 7RU Stand Alone Basic Wall Cabinet
The Atlas Sound 607-15 7RU Stand Alone Basic Wall Cabinet is a surface mounting wall cabinet used for housing small electronic system installations including 19" wide amplifiers, tuners and associated communication controls for schools, churches, clubs and recreation facilities. The 607-15 has a vertical panel opening of 12 1/4" (311mm) and is constructed of 16-gauge CRS. Louvers on each side of the cabinet are provided for ventilation. The fixed 11-gauge CRS panel mounting rails are recessed 5/8" (16mm) for a "flush" look. Locking front door is standard.
