Bose Restaurant Sound System with 8 FreeSpace DS 16F In-Ceiling Speakers and FreeSpace IZA 190-HZ Zone Amplifier
Part # RSSS-8DS16F190HZ
Model # RSSS-8DS16F190HZ
This Bose Restaurant Sound System is ideal for medium to large coverage areas where you need background music that will add to your customers’ mealtime enjoyment without interfering with their conversation and is easily expandable for further coverage.

Availability: In Stock and Ready to Ship!

* Required Fields

Pro Acoustics Price $0.00

Free Lifetime
Tech Support!

with Every Purchase Start Chatting


This Bose Medium to Large Restaurant Sound System is perfect when you need background music that will add to your customers’ mealtime enjoyment without interfering with their conversation. This system is ideal for small coverage areas and can be easily expanded for further coverage and control over separate zones and paging.

The Bose FreeSpace® DS 16F loudspeakers are entry-level, full-range, flush-mount loudspeakers designed for background music and speech reproduction in a wide range of installed applications. They have a wide, even 140° conical pattern and frequency range down to 80 Hz.

The Bose FreeSpace® IZA 190-HZ integrated zone amplifier ideal for background/foreground music and paging applications. The Bose® FreeSpace® IZA 190-HZ integrated zone amplifiers are designed to deliver premium sound, provide simplified set up and easy daily operation, and offer the flexibility to expand when more loudspeakers are required. When used with FreeSpace DS 16 and DS 40 loudspeakers, even further sound optimization is possible through onboard selectable EQ presets.

Used with the Bose Volume Control with A/B switch user interface is designed to offer an elegant, easy-to-use, wall-mounted controller for volume control and selection of up to two remote sources. This simple interface fits in a standard 2-gang electrical box and is suitable for use in controlling the sound in a single room or for use in basic systems.

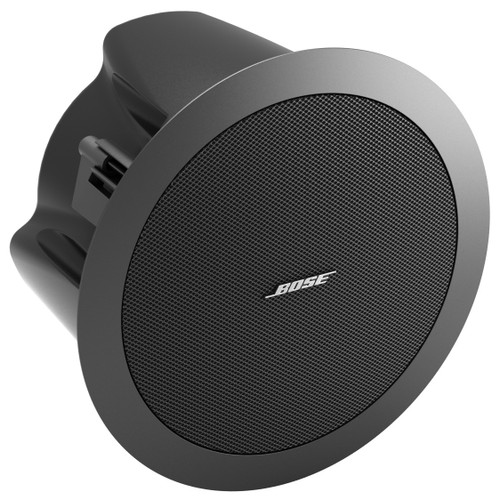

Bose FreeSpace DS 16F In Ceiling Loudspeakers:

  • Full-range loudspeaker with a single 2.25" (57 mm) driver in a ported enclosure to deliver a 140° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendantmount applications

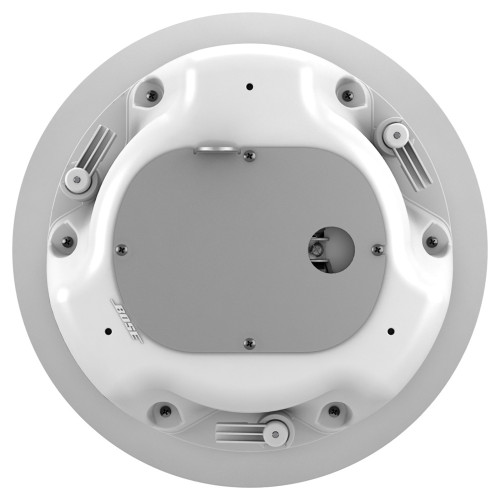

  • Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the
  • loudspeaker grille
  • Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality
  • Can be combined with either surface- or flush-mount FreeSpace 3 Acoustimass® module for extended bass response
  • Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille

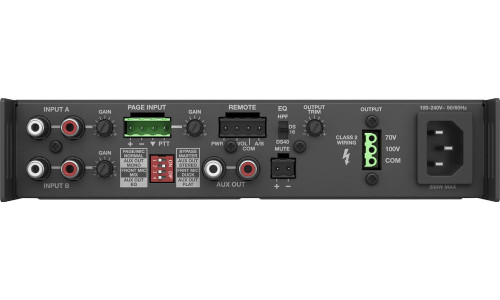

Bose FreeSpace IZA 190-HZ Zone Amplifier:

  • Amplification for premium sound from a reliable, high quality Class-D amplifier provides optimized performance and premium sound quality through the use of internal digital signal processing
  • Installation made simple with set up done locally from the front and rear panels of the amplifier—no computer is required
  • Opti-voice® paging provides smooth automatic transition between the music and page signals
  • End-user friendly front panel allows users to connect devices easily, make tonal adjustments or select between two sources.
  • Compact, lightweight design enables the FreeSpace integrated zone amplifier to be placed out of the way—on a table, desk, counter, shelf or in an equipment rack using the optional Rack Mount Kit accessory
  • Easy connectivity and expansion are possible for applications where a second set of output channels are required. An auxiliary line output is provided to share signals with an optional FreeSpace ZA 250-LZ or ZA 190-HZ

Bose Volume Control:

  • Elegant styling with intuitive controls for end user operation
  • Includes single volume control knob with a two position source selector switch
  • Simplified drag and drop setup using ControlSpace® Designer™ software
  • Connects to Control Inputs (GPI) on ESP engineered sound processor
  • No external power supply required
  • Fits into a standard 2-gang electrical wall box

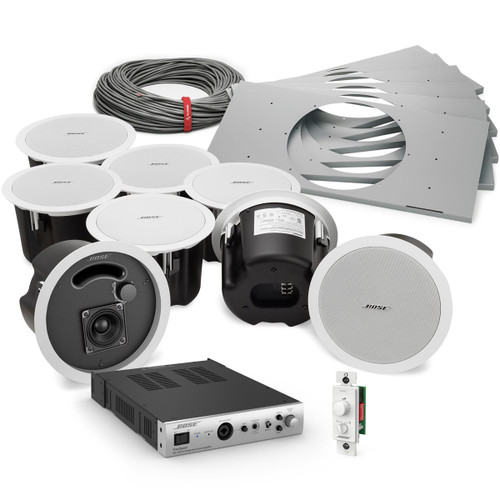

System Includes

System Includes

  • (8) Bose FreeSpace DS 16F In Ceiling Loudspeakers

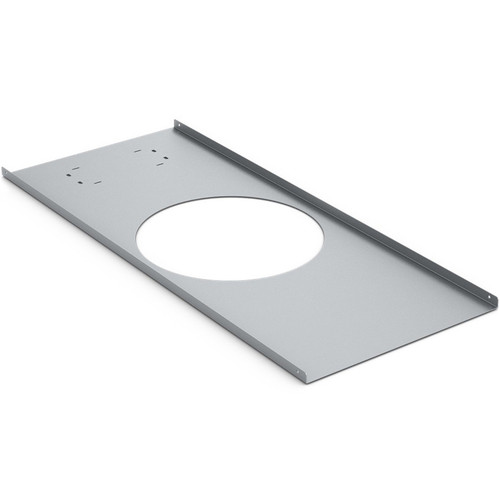

  • (8) Bose Model 16 Tile Bridges
  • (1) Bose FreeSpace IZA 190-HZ Zone Amplifier
  • (1) Bose Volume Control
