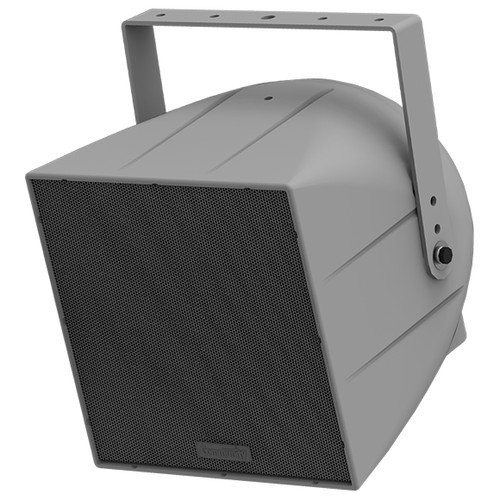

The compact 8-inch R.25 loudspeaker combines wide frequency response with excellent efficiency and projection ability. The HF driver is coupled to a nominal 90°x40° horn, and the HF horn assembly is coaxially mounted with the LF driver to minimize interference at crossover. The horn-loaded LF driver delivers better low-frequency pattern control, higher sensitivity, higher output, and better vocal projection than typical 8-inch, two-way loudspeakers. The R.25 is ideal for use in difficult acoustic environments requiring a small footprint, like stadium concourses and gymnasiums, and offers excellent supplemental reinforcement in larger R Series systems.
Applications Include:
| Loudspeaker Type | 2-way, horn loaded, coaxial, weather-resistant |
|---|---|
| Operating Range | 100 Hz to 16 kHz; 160 Hz to 12.5 kHz (±3 dB) |
| Max Input Ratings | 200W continuous, 500W program, 40 volts RMS, 89 volts momentary peak |
| Recommended Power Amplifier | 420W to 600W @ 8 ohms |
| Sensitivity (1W/1m) | 97 dB SPL (160 Hz to 10 kHz 1/3 octave bands) 97 dB SPL (250 Hz to 4 kHz speech range) |
| Maximum Output | 120 dB SPL / 127 dB SPL (peak) |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 4.6 ohms @ 10.4 kHz |
| Nominal -6 dB Beamwidth | 90°H (+7° / -13°, 2 kHz to 10 kHz) 40°V (+35° / -10°, 2 kHz to 10 kHz) |
| Axial Q / DI | 13.5 / 11.3, 2 kHz to 10 kHz |
| Crossover Frequency | 2 kHz |
| Recommended Signal Processing | 100 Hz high pass filter |
| Drivers | LF (1) 8” cast frame, Cool-Coil™ HF (1) 3/4” exit, titanium free, Ferrofluid-cooled |
| Driver Protection | DYNA-TECH protection circuitry |
| Input Connection | 16-2 SJOW (12 ft /4 m) |
| Controls | None |
| Enclosure | Rotomolded HDPE, light gray color |
| Enclosure Hardware | None |
| Mounting/Rigging Provisions | (5) Rigging points (M8 hardware) 1-3/8" pole mount socket |
| Grille | 16-gauge perforated stainless steel, 3-layer WeatherStop™ grille |
| Required Accessories | 24 dB/Oct high pass filter |
| Supplied Accessories | (1) Stainless steel (304) yoke bracket |
| Optional Accessories | Pole mount system |
| Dimensions (H x W x D) | 11.3" (287 mm) x 11.3" (287 mm) x 13.3" (338 mm) |
| Weight | 20 lbs (9.1 kg) |
| Shipping Weight | 26.2 lbs (11.9 kg) |
Rich
We installed these speakers for a Long Island, NY high school baseball program. They've worked great and have received many compliments from other schools that have come to play us. Our fans enjoy the music and announcements during our games. It's been a great addition to our field. The customer service for this product was excellent as well. Very knowledgable and responded quickly to our installation questions.
