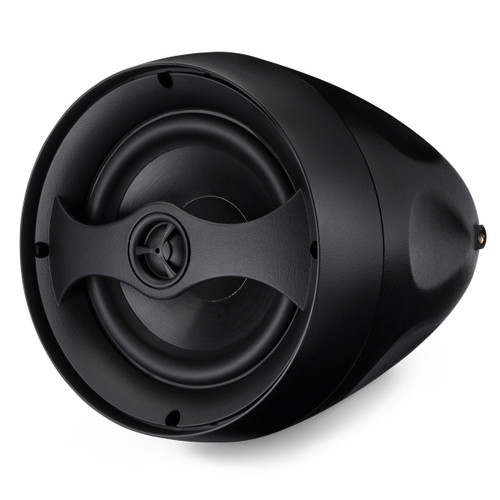

Pure Resonance Audio PD6 6.5" 2-Way Open-Ceiling Pendant Mount Loudspeaker - Black

Part #:
PD6
Model #:
PD6
Availability: Currently Backordered - Contact Us for Comparable Solutions Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Designed to meet the needs of indoor and outdoor open-ceiling commercial applications, the Pure Resonance Audio PD6 6.5" full-range pendant speaker is weather-resistant, high powered and easy to install. This 70-volt pendant mount loudspeaker is perfect for restaurants, retail stores, offices, warehouses, or any other open-architecture high ceiling environment where paging, announcements or foreground and background music is required.

Description

Pure Resonance Audio PD6 6.5" Indoor/Outdoor 70V Commercial Pendant Speaker
for Open-Ceiling Architectural Designs

Clear and Intelligible Wide-Coverage Audio for Focused Performance

Designed to meet the needs of open-ceiling commercial applications, the Pure Resonance Audio PD6 full-range coaxial pendant mount loudspeaker is easy to install and high powered producing clear intelligible audio in spaces with exposed structure open-architecture ceilings. The acoustically matched 6.5" and 1" tweeter maximize the PD6's performance while minimizing its overall footprint. The down-firing design of the driver directs the high fidelity sound for an evenly distributed 150° wide coverage pattern. A tough weather-resistant construction with treated drivers and two-layer, powder-coated grilles bring high-performance audio and vocal clarity to both indoor and outdoor pendant-mount sound systems.

Ideal 70V Loudspeaker Solution Built for Integration in Open-Ceiling Commercial Environments

With the addition of a 4-pin Euroblock plug and multi-tap transformer for use with 70V/100V distributed audio loudspeaker systems, the Pure Resonance Audio PD6 is easily integrated into any commercial audio application. The 2-way pendant-mount loudspeaker provides superb sound reproduction for exposed structure or open plenum ceiling venues where a stylish contemporary speaker blends well with the architectural design. This 70-volt pendant speaker is the perfect installed sound solution for restaurants, retail stores, open office floor plans, hotels, warehouses, big box stores, fitness centers, convention centers, conference rooms, atriums, museums, theme parks, casinos, airports or any other high ceiling environment where paging, announcements, or foreground and background sound reinforcement is required.

Fast and Easy Installation to Meet the Demands of Open-Ceiling Applications

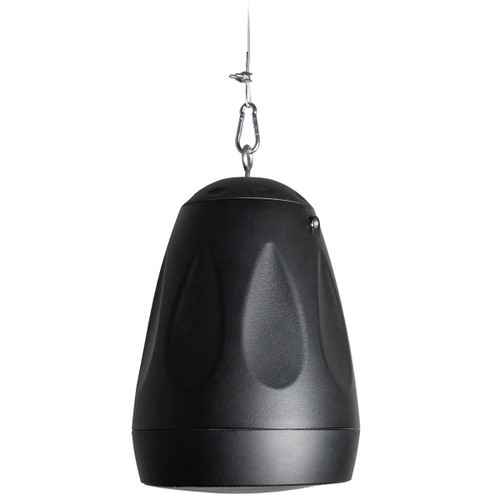

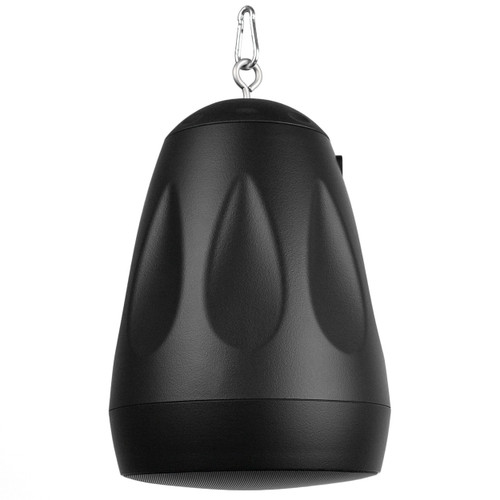

The Pure Resonance Audio PD6 is well-equipped for an easy and secure standard pendant-mount installation with the included mounting hardware. The steel hanging and safety cables, carabiner and Fastlink locking wire joiner ensure a safe and reliable installment. The crisp sounding PD6 commercial speaker can adapt to meet the demands of any open-ceiling application.

Features

  • Durable weather resistant construction
  • Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
  • Tap settings:
    • 70V: 8 ohm, 4W, 8W, 16W, 32W
    • 100V: 8 ohm, 8W, 16W, 32W
  • Includes pendant mounting hardware
  • Ideally suited for such applications as background music (BGM) and paging

Specifications

Power Rating 30 Watts RMS; 70 Watts Peak
Frequency Response (±10 dB) 65 Hz – 20 kHz
Sensitivity (@ 1m/1w) 87 dB
Max SPL 101 dB
Dispersion Conical 150°
Impedance 8 Ohms
Transformer 70.7V: 4W / 8W / 16W / 32W / 8 Ohm
Woofer 6.5" Polypropylene
Tweeter 1" Silk
Grill Powder-coated aluminum

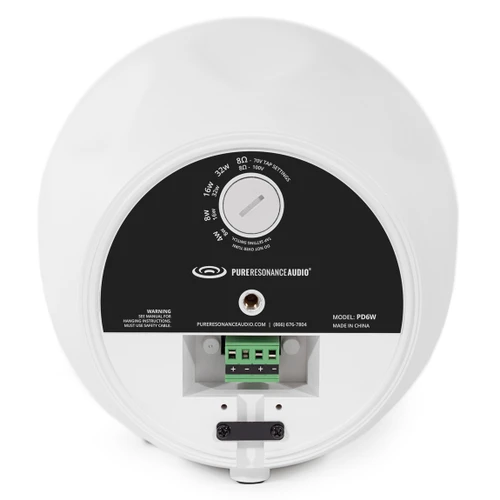

Connections 4-pin Euroblock screw terminal
Dimensions (H x Dia) 10.3" (285 mm) x 8.1" (207 mm)
Weight 6.35 lbs (2.88 kg)
Shipping Weight 9 lbs (4.08 kg)

DOCUMENTS

In The Box

  • (1) PD6 Pendant Mount Speaker
  • (1) Rear Cover (with Hole for Eyebolt)
  • (1) Eyebolt and Nut
  • (1) Wire Retention Plate
  • (1) Mounting Kit:
    • (2) 10ft Steel Cables
    • (2) Carabiners
    • (2) Fastlinks
