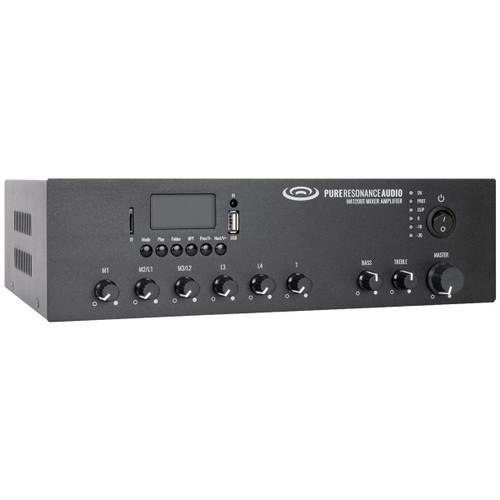

Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth 70V 100V 4 or 8 Ohm Outputs

Part #:
MA120BT
Model #:
MA120BT
MSRP: $599.99
$499.99
Availability: In Stock & Shipping Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Pure Resonance Audio MA120BT mixer amplifier with built-in Bluetooth and 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70V, 100V, 8 ohm or 4 ohm outputs, and a compact size and interface are all combined to make this mixer-amp an easy choice for any application.

Description

Commercial Audio 120W Mixer Amplifier for Paging and BGM 70V 100V 4 or 8 ohm Outputs

Versatility

This 7-channel mixer-amplifier from Pure Resonance Audio with built-in 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70 Volt, 100 Volt, 8 ohm or 4 ohm outputs, and a compact size and interface are all combined to make this mixer-amp an easy choice for any application in need of background music and general announcements. It is perfect for use in restaurants, retail stores, offices, schools, hospitality, etc. and is equipped with paging and MOH (Music On Hold).

Flexibility

The on-board plug-in play MP3 player accepts TF cards and USB thumb drives that can be plugged in on the front panel. The unit includes RCA inputs and RCA line level outputs, a telephone input with VOX priority and a MOH (Music on Hold) output, as well as an XLR input with phantom power. The IR remote for MP3, FM Radio and Bluetooth provides freedom and flexibility allowing full control, even from across the room.

Bluetooth-Enabled

This compact public address amplifier also supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets or mobile phones, enabling anyone to walk-in and link up with their Bluetooth Wireless Connection to instantly play music or any sound source file.

Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.

Features

  • Lightweight and compact design
  • 120W with 4Ω, 8Ω, 16Ω, 70V and 100V speaker outputs
  • 7-Channel inputs with individual gain controls and master gain, bass, and treble EQ
  • MP3 player with TF and USB inputs, FM tuner, and Bluetooth
  • RCA and MOH (Music On Hold) outputs
  • 1 MIC level balanced XLR input with phantom power
  • 2 MIC or LINE level unbalanced 1/4" TS inputs
  • 2 LINE level unbalanced RCA inputs
  • 1 Telephone input with priority ducking switch
  • Level, overheating, overload, and short-circuit protection with indicators

Specifications

Rated Power Output 120W
Speaker Outputs 70V, 100V and 4 Ohms, 8 Ohms or 16 Ohms
Connectors Mic 1 input by balanced XLR with phantom power
Input 2-3 Mic/Line switchable unbalanced 6.3 mm phone jack
Line 1-2 inputs by RCA; Line output by RCA
Attenuation Microphone 1-3, line 1-2 and MP3/FM Radio, bass/treble and master
Input MIC 1-3: 5-8 mV, 600Ω; Line, 150-470 mV, 10 KΩ, unbalanced RCA
Line Out 0.775 (0 dBV)
Frequency Response 60 Hz - 15 kHz (±3 dB)
S/N Ratio Line ≥ 85 dB, Mic≥ 72 dB
THD Less than 0.5%
Protection Short-circuit, clip, overload and high temp protection
Power Consumption 60W
Power Supply 115V 60 Hz & 24V DC
Remote Control IR remote control with (replaceable) CR2025 3V lithium battery
Dimensions (H x W x D) 3.54" (90 mm) x 12.6" (320 mm) x 8.27" (210 mm)
Weight 10.36 lbs (4.7 kg)

DOCUMENTS

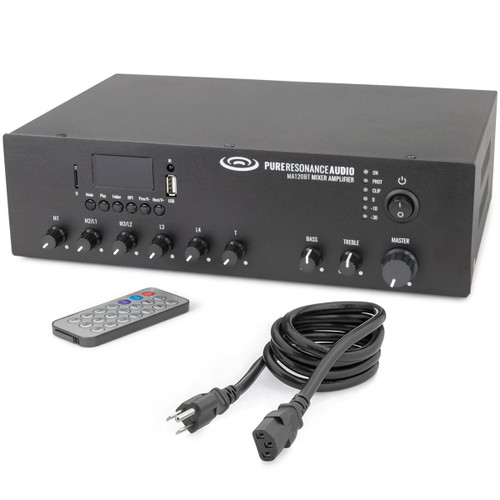

In The Box

  • (1) MA120BT Bluetooth Mixer Amplifier
  • (1) IR Remote Control
  • (1) Power Cord
