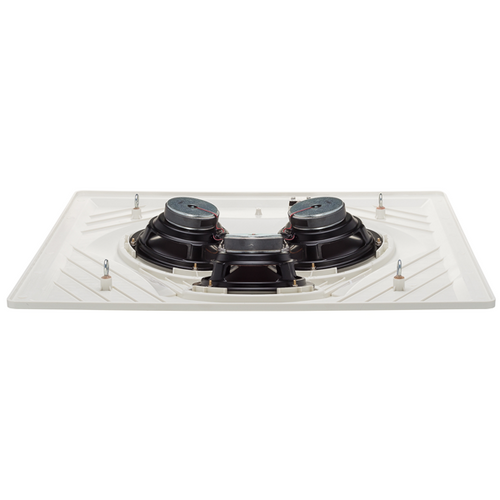

Pure Resonance Audio VCA8 120W 8 Ohm Vector Ceiling Speaker Array
The VCA8 vector ceiling speaker array takes in-ceiling speaker performance to a whole new level. The Vector is an innovative speaker concept that meets the demanding needs of audio sound systems. The Vector speakers' pyramid design fits into standard 2'x2' or 2'x4' drop tile ceiling grids, providing an amazing 360 degrees of hemispheric sound. Vector ceiling speaker arrays are economical, quick to install, and competitively priced, making them an excellent value. The VCA8 lay-in 2x2 drop tile ceiling speaker array has outstanding coverage greatly improves speech intelligibility and has crystal clear music reproduction. It takes minutes to install, just remove one ceiling tile and lay in the VCA8 into any standard drop ceiling tile grid system. The 8 ohm input is compatible with any commercial or stereo sound system and offers outstanding performance and value making them ideal for classrooms, office spaces, conference rooms, teleconferencing applications, churches, retail stores, restaurants, schools, universities, and sound masking systems.

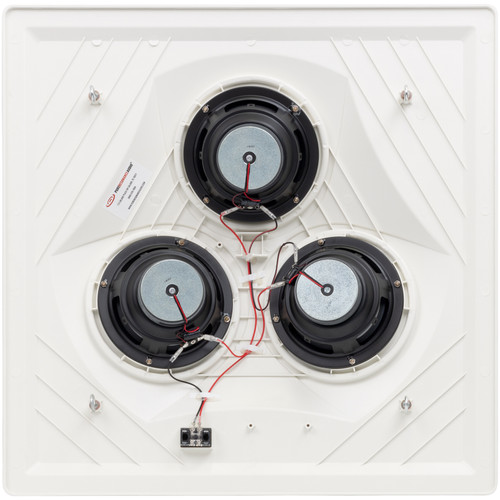

The Vector 2' x 2' lay-in ceiling speaker employs three powerful and stable 6.5" aluminum woofer drivers with a very fast transient response. Working in unison these drivers produce a clean powerful dynamic sound. When designing the Vector the goal was to have the single most important feature at the forefront, good transient response ("dynamic contrast"). A transient is a sound of short duration, and good transient response can only be achieved if the speaker can deliver its output quickly and cleanly without smearing the original sound while being completely soundless immediately after. Transients contain the essentials of sound reproduction, they provide the sharp pop from a snare drum, the cutting edge of digital sound, and the dynamics of the human voice. Larger 2-way cabinet loudspeaker systems offer a relatively slow transient response, and the small high-frequency horn tends to beam a narrow, blaring sound at the listener, the end result is a muddy or muffled sound. By replacing larger speakers with three 6" drivers we've increased the drivers' surface area while creating more of a punch and a tight, more focused low-end.- Features
Features
- 360° x 180° omnidirectional speaker coverage (hemispherical)
- Infinite-baffle in-ceiling speaker drops into standard ceiling tile openings
- Powerful – 120W at 8Ω
- 3 - 6.5" full-range drivers
- Uniquely designed fire retardant ABS housing can be painted to match any décor
- Specification
System Type Omnidirectional 2' x 2' Ceiling Speaker Array Power Handling 120W Frequency Response 35 Hz - 20 kHz Sensitivity 92dB (half space) Impedance 8Ω Woofers 6.5" Aluminum Dispersion 180° x 360° (hemispherical) Driver Complement Array of three full-range 6.5" drivers Dimensions (H x W x D) 23.75" (603.25 mm) x 23.75" (603.25 mm) x 4.75" (120.65 mm) Net Weight 16 lbs (7.26 kg) Shipping Dimensions (H x W x D) 28" (711.2 mm) x 28" (711.2 mm) x 9.25" (234.95 mm) Shipping Weight 18 lbs (8.16 kg) - Documents
- Videos
Videos
- Reviews
Customer Reviews 5 item(s)
- Great Product
- Fits our needs perfectly. We have used these in several of our buildings and they work great. We are very pleased with this speaker system.
- Very Impressed!
- My company is renovating our main conference room and wanted to integrate Audio/Video and computer into the conference room table and speakers on the wall for sound. While searching Amazon, I found this product and thought it would be an ideal fit. We just installed and utilized suggested amplifier and WOW! The sound is awesome and it looks much nicer in the suspended ceiling than wall mounted speakers. Very impressed!
- Super sound & super easy
- The reviews led me to try this speaker for one of our new branches. Easy install & the sound is amazing.Will definitely refer to others. The suggested amp was a little too much for the application, but it's always nice to have more than less.
- Happy with results
- These speakers were perfect for the drop ceiling in my restaurant. I bought 6 and the sound is fully encompassing. Music and football: clear, crisp, and as loud as I desire.
- 5stars
- this speaker system performs perfectly. very easy to install. has a true hi fidelity sound. I would definitely use them again
