The Legacy Continues with the Next Generation SuperDispersion® Commercial Ceiling Speaker Array

Unrivaled Speech Reproduction

Providing unrivaled speech reproduction and voice intelligibility, with an outstanding speech transmission index of (.80), the SD5 offers a wide dispersion of high-frequency sounds, allowing listeners to clearly catch speech from a much wider proximity.

The frequency response needed to clearly hear a human voice is between 200 Hz and 7 kHz. Consonant sounds typically fall into a higher frequency band between 2 kHz and 7 kHz. In order for listeners to clearly hear what is being communicated through a speaker, the speaker must be able to spread a wide range of high frequency sounds across a room.

Unlike conventional speakers that tend to have a very narrow high-frequency dispersion pattern, the SD5, through its proprietary design, has the ability to evenly disperse these critical frequency sounds, providing unprecedented crystal clear sound and speech reproduction to the listening audience.

Cutting Edge Design Creates the Best Coverage

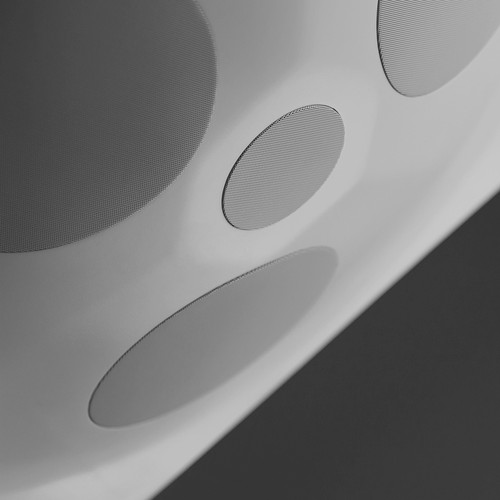

Backed by more than 30 years of drop tile speaker research and development, the new SD5 is built with a proprietary high-frequency driver and frequency-matched low-frequency drivers that extend the crossover point well below traditional ceiling speakers creating better audio coverage and response.

The proprietary tweeter technology works in perfect harmony with an array of custom-engineered drivers to reduce frequency cancellation and provide crystal clear sound. Strategically engineered waveguides shape the sound as it travels away from the speaker array eliminating any potential problem areas in the room. Additionally, the SD5’s reinforced wave-guide housing and directional vortex porting maximize audio dispersion and reduce turbulence within the speaker system. This cutting edge design offers 360 degrees of smooth, crisp clear audio coverage.

Top Performance from Minimal Speakers

Less is more, when reproducing vocals or amplifying music, it is always better with fewer speakers. When you have too many speakers creating the same sound, it can make it difficult for the listener to hear. This happens because they may experience the same sound from different speakers at different times causing audio confusion or listening fatigue.

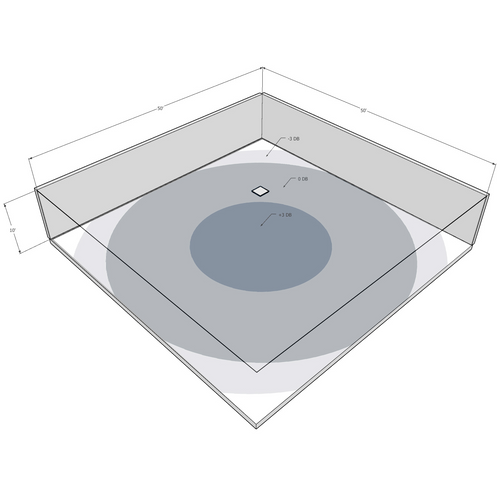

The SD5 replaces multiple single speakers and provides an industry leading 50’ x 50’ plus of audio coverage from a single array with zero frequency cancellation. This creates a more comfortable listening environment while also simplifying installation and dramatically lowering labor costs.

New and Improved

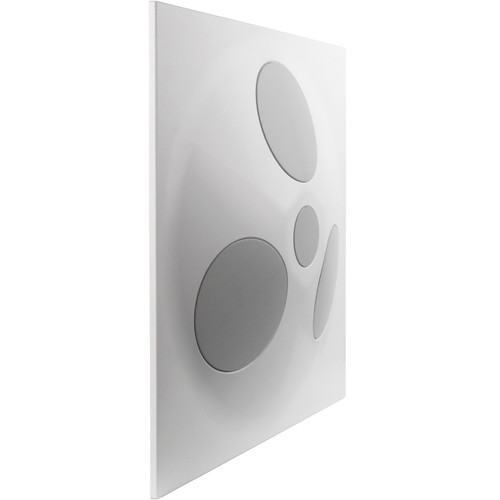

Building on more than 30 years of drop tile speaker research and development, the new SD5 is significantly improved in every area from the previous generation. Its sleek, thin, and lighter weight architecture paired with its seamlessly omnidirectional sound coverage, crisp vocal articulation, and low distortion make the ceiling speaker array an extremely powerful audio solution. It is perfect for

conference rooms, classrooms, training rooms, meeting rooms, lecture halls, auditoriums, control rooms, churches, offices and sound systems where hearing and clarity is critical.

Quick and Easy to Install

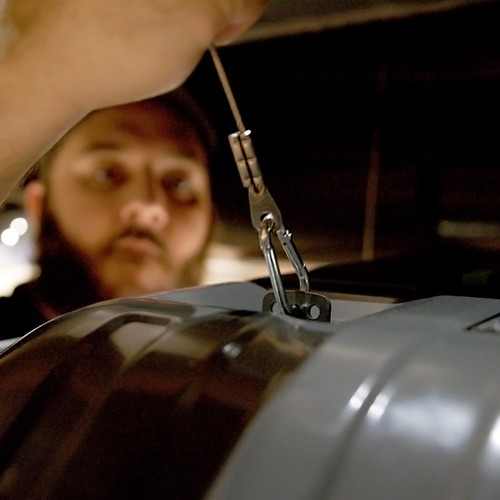

Designed to install much quicker than a traditional ceiling speaker, the SD5 is built to save your most important currency, time. Simply remove one ceiling tile, drop the SD5 into any standard drop-ceiling grid, and attach your speaker wire. Secure the speaker from the four back suspension points using the provided carabiners and braided steel safety cable. Your sound system will be set up and operational quicker than ever before.

• Omnidirectional coverage pattern provides 360° x 180° of consistent frequency response
• Powerful proprietary tweeter design with a lower crossover point improves vocal performance
• Wave guided housing directs sound where it needs to go
• Ported enclosure is acoustically optimized and tuned with bass-reflex for turbulence reduction

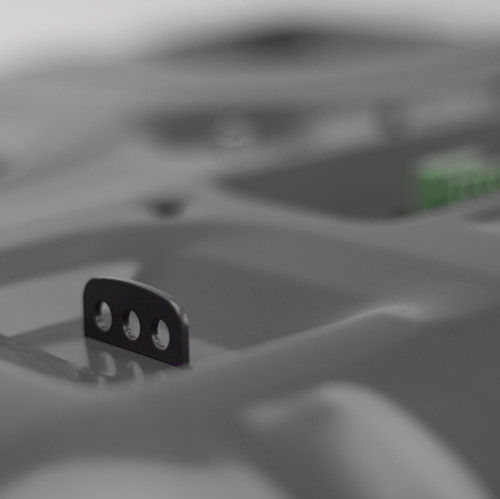

• Low profile metal back-box comes with built-in safety suspension points

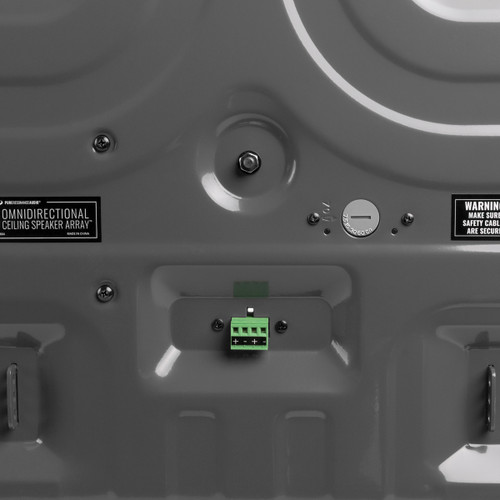

• Thumbwheel selectable 8-ohm nominal and 70-volt inputs are compatible with any commercial or stereo amplifier

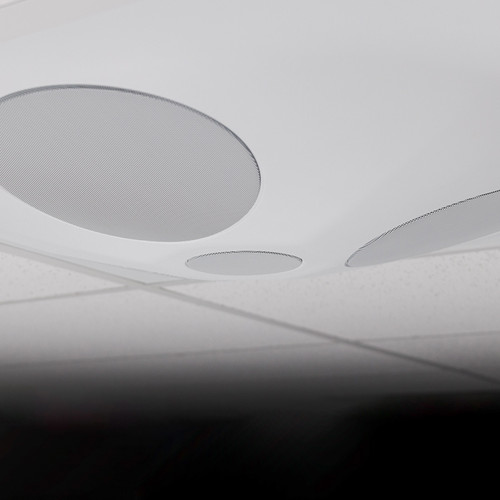

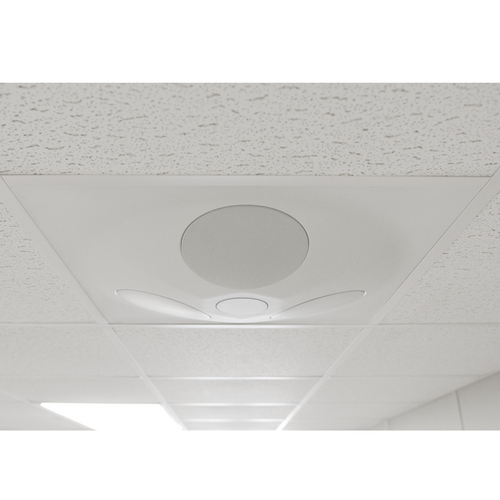

• Takes just minutes to install, simply remove one ceiling tile and drop the SD5 into any standard drop-ceiling grid
• Safety carabiner kit includes braided steel cables and infinitely adjustable SpeedClamp™ fasteners for secure and fast easy-install

Manual

Cut Sheet

Technical Document

• (1) SD5 SuperDispersion® Drop Tile Ceiling Speaker Array
• (1) Safety Cable Kit:
• (4) Steel Safety Cables
• (4) Carabiners
• (4) Fastlinks
