Tascam MZ-372 Multi-Channel Multi-Zone Audio Mixer Designed for Permanent Installation
The Tascam MZ-372 is a multi-zone mixer that offers versatile routing, mixing, and control of multiple audio sources in an attractive easy-to-operate 3U package designed for permanent installation. For maximum flexibility, source content can include music, spoken word (microphone), turntable, and more - all easily controlled via familiar sliders and assignment controls.
Flexible I/O

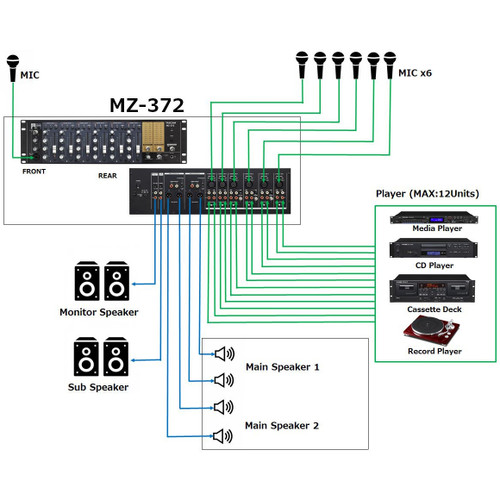

The MZ-372 allows multiple audio sources (19 total) to be mixed, muted, and routed to two redundant outputs, controlled by familiar volume sliders and assignment buttons. Input signals can be inserted via six audio channels, each consisting of two sets of unbalanced RCA-type stereo pairs, and six XLR inputs for a total of twelve sets of RCA-type inputs and six XLR inputs. In addition, channels 2/3/4 can be set to accommodate phono-level signals for use with a turntable. Lastly, and located conveniently on the front panel, one additional XLR input is available driving a studio quality mic preamp and ducking circuit for easy voiceover and announcement work.
Multiple Zone Outputs
Twin outputs each feature a combination of balanced XLR or RCA unbalanced connectors for easy integration into virtually any audio system. This flexibility allows combinations of microphones, CD/DVD/Blu-ray players, instruments - or any other audio source - to be selected or muted, and sent simultaneously to the dual outputs, each with its own volume control. Finally, the convenient "talkover" function will automatically lower any mixed channel source so the microphone connected to the front panel can easily be can be heard in whichever zones you choose.
Easy, Immediate Control
Familiar volume sliders, switches/buttons, EQ knobs, and mute buttons make the MZ-372 simple and fast to operate and set up. There is even a master recording stereo output, which can send audio to an external recorder which makes event or music performance capturing easy. The Booth outputs provide another stereo feed with independent control for additional monitoring.
- Features
Features
- Maximum flexibility for audio routing, input selection, and multiple redundant output flow, perfect for integrator, musical instrument, and residential applications
- Multiple inputs include 12 sets of stereo RCA-type, 6 selectable mic/line XLR, and a dedicated front-panel XLR mic input; 19 total input "sets"
- Channel audio sources can easily be selected, muted, and contoured via simple volume sliders, toggle switches/buttons, and knobs
- Two redundant output channels each with stereo XLR balanced and unbalanced RCA-type connectors; each with separate volume control
- Separate stereo booth, recording, and headphone outputs each with independent control
- One additional mic-compatible XLR input on the front panel with "talkover" function automatically lowering source audio
- Independent three-band EQ per each of the 5 channels and a two-band EQ on the additional front panel microphone input
- Compact 3U rack mount design
- Specification
Mic Input Font Panel Connectors: 1 x XLR-1/4" / 6.35 mm combo
Input Impedance: 33 kOhms
Nominal Input Level: -65 dBu (volume knob at maximum)
Nominal Input Level: -10 dBu (volume knob at minimum)
Gain Range: 55 dBMic/Line Inputs Switchable Mic/Line Inputs
Connectors: 6 x XLR
Set to Mic
Maximum Input Level: -10 dBu
Minimum Input Level: -65 dBu
Input Impedance: 33 kOhms
Set to Line
Nominal Input Level: -1 dBV
Maximum Input Level: 20 dBV
Input Impedance: 22 kOhms
Dedicated Line Inputs
Connectors: 12 x RCA pairs (2 x RCA pairs per channel)
Nominal Input Level: -10 dBV
Maximum Input Level: 10 dBV
Input Impedance: 22 kOhmsMain Outputs Unbalanced
2 x RCA pairs
Rated Output Level: -10 dBV
Maximum Output Level: 6 dBV
Output Impedance: 200 Ohms
Balanced
2 x XLR pairs
Rated Output Level: 4 dBV
Maximum Output Level: 24 dBV
Output Impedance: 200 OhmsSub Monitor Output Sub Output: 1 x RCA pair
Rated Output Level: -16 dBV
Maximum Output Level: 0 dBV
Output Impedance: 200 Ohms
Monitor Outputs: 1 x RCA pair
Rated Output Level: -16 dBV
Maximum Output Level: 0 dBV
Output Impedance: 200 OhmsHeadphone Output 1 x 1/4" / 6.35 mm TRS
Maximum Output: 50 mW + 50 mW (into 32 Ohms load)Frequency Response 20 Hz to 20 kHz Distortion 0.03% Crosstalk 65 dB Power Dedicated AC Adapter: PS-M1524
Input Voltage: 100 to 240 VAC, 50/60 Hz
Output Voltage: 15 VDC
Output Current: 2.4 APower Consumption 35W Dimensions (H x W x D) 5.2" (132 mm) x 19" (482 mm) x 3.7" (93.2 mm) Weight 7.05 lbs (3.2 kg) Shipping Weight 8.15 lbs (3.7 kg) - Documents
