TOA TS-770 Series 7 Person Conference System
Part # TS-770SYS6
Model # TS-770SYS6
The new TS-770 Series Conference System is ideal for conferences and meetings in government, corporate, educational and hotel applications.

Availability: In Stock and Ready to Ship!

Free System Design

Tell us your goals. We'll create a customized audio system solution - just for you.

Email Us

Description

Details

The new TS-770 Series Conference System is ideal for conferences and meetings in government,  corporate, educational and hotel applications. The new system provides communications for conferences and boardrooms. The TS-770 Supports up to (70) TS-771 Chairperson and TS-772 Delegate Stations. Aux, Line and Mic inputs and up to six simultaneous speakers are featured. PA/Record output & System Test functions are also enabled.

The Chair Person and Delegate Stations have 3.5mm Headphone and Record Output with volume control with Priority override control and features Push to talk control. Contact closure output when microphone is active.

Features

Features

  • Easy to set up and operate.
  • Up to 70 Chairperson/Delegate stations per TS-770 Central Unit.
  • Supports system expansion up to (3) TS-770 Central Units for a total of 210 stations in one system.
  • Telephone or PC Remote Delegate station operation using the TS-775.
  • All Microphones ON Record function.
  • External source inputs and PA/record outputs.
  • System Test function.
  • Five year warranty.
Specification
Power Requirements AC mains, 50/60 Hz
Power Consumption Max. 60 W
Rated Output 35V DC, 650mA × 2
Input MIC: –60 dB*, 600 ohms, unbalanced, phone jack
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity Under 90 % RH (no condensation)
Finish Panel: Aluminum, hairline, black
Dimensions (H x W x D) 4.22" (107.19 mm) x 8.27" (210 mm) × 12.44" (315.98 mm)
Weight 8.82 lb

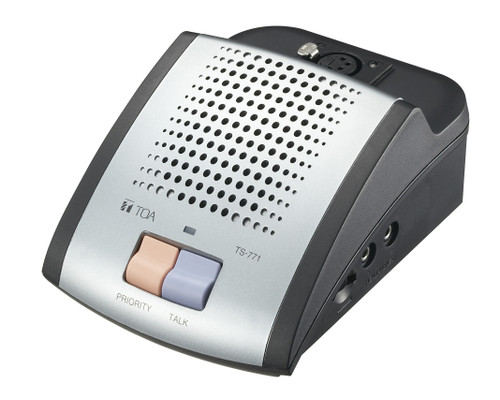

TS-771 Chairman Unit Specifications
Power Requirements 35 V DC, under 30 mA (supplied from Central Unit TS-770)
Connection Cable 2m (6.56 ft)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humanity Under 90 % RH (no condensation)
Finish Case: ABS resin, black
Dimensions (H x W x D) 3.09" (78.49 mm) x 4.51" (114.55 mm) × 6.02" (152.91 mm)

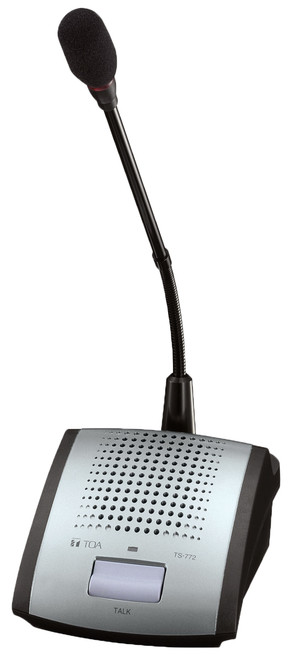

TS-772 Delegate Unit Specifications
Power Requirements 35 V DC, under 30 mA
Control Microphone, speaker on-off control by speech switch
Connection Cable 2m (6.56 ft)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humanity Under 90 % RH (no condensation)
Finish Case: ABS resin, black
Dimensions (H x W x D) 3.09" (78.49 mm) x 4.51" (114.55 mm) × 6.02" (152.91 mm)
Weight 1.72 lbs.
Documents

Documents

System Includes

System Includes

  • (1) TS-770 Central Unit
  • (1) TS-771 Chair Person Station

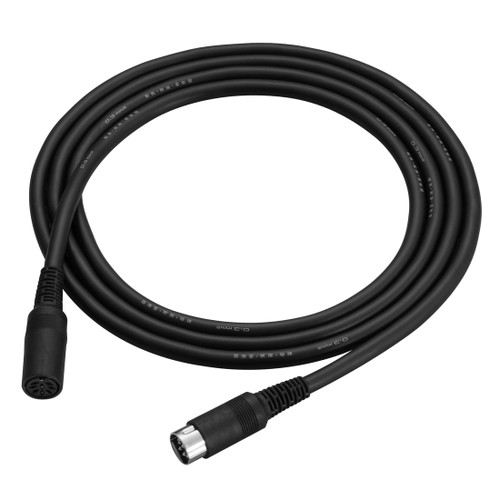

  • (1) YR-770-2M Station Extension Cord
  • (6) TS-772 Delegate Stations

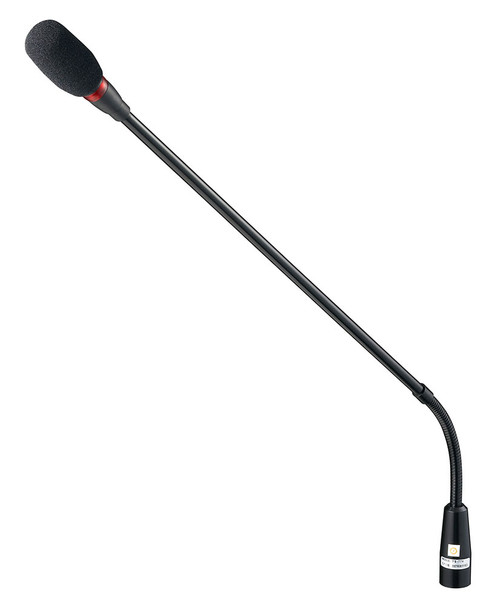

  • (7) TS-774 Microphones
