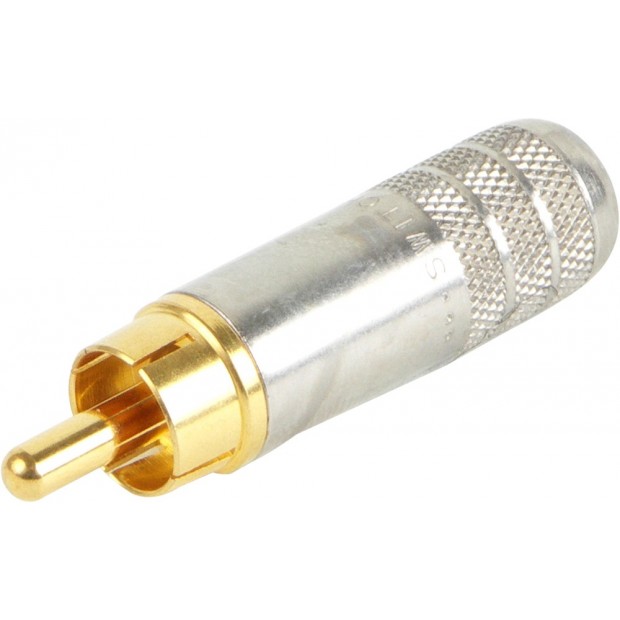

Switchcraft 3502A RCA Straight Plug
Part # 3502A
Model # 3502A

The Switchcraft 3502A RCA Straight Plug features an easy-to-assemble construction: a handle and plug assembly. The plug features a solid-pin design and large solder terminals that make termination faster and easier. The larger cable clamp and handle will accommodate a variety of cable sizes.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The Switchcraft 3502A RCA Straight Plug features an easy-to-assemble construction: a handle and plug assembly. The plug features a solid-pin design and large solder terminals that make termination faster and easier. The larger cable clamp and handle will accommodate a variety of cable sizes. Available in nickel plug bodies with nickel finish handles, this new RCA plug will save time and space in any application.

The 3502A is a 2 conductor shielded RCA straight plug, solid pin, cable up to 0.290" (7.366mm) diameter, solder cup on center. It has a long handle and cable clamp. It is made of nickel.
Features

Features

  • Solid-pin design and large solder terminals
  • Larger cable clamp and handle will accommodate a variety of cable sizes
  • Easy-to-assemble construction: a handle and plug assembly
Specification
Contact Resistance (typical D.O.M.J.)< 0.020 ohms.
Dielectric Withstand Voltage500V AC (minimum)
Insulation Resistance @ 500V DC2,000 megohms (minimum)
Insulation Resistance (after MIL-STD-202 Salt Spray)1,000 megohms (minimum)
Working Voltage250V AC, 140V DC
Current Carry @ Working Voltage (typical D.O.M.J.)6.0 AMPS
Insert/Withdrawal ForceD.O.M.J
Temperature Range-40° to + 85° Centigrade
Maximum Cable Size0.285 inch diameter
Materials(Pin, Sleeve, Handle)Nickel plug bodies with nickel finish handles
Cable ClampC.R.S., electrotin-plated
InsulatorRigid plastic
