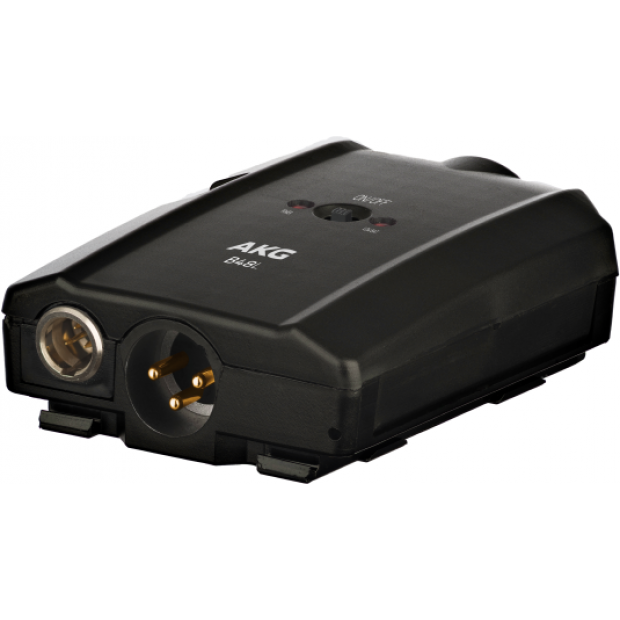

AKG B48 L Battery-Operated Phantom Power Supply (Discontinued)
By AKG

AKG B48 L Battery-Operated Phantom Power Supply (Discontinued)

Write a Review
Part #:
3163Z00010
Model #:
B48 L
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The B48 L is a battery-operated power supply for condenser microphones for applications when a condenser microphone is used but no phantom power from a mixer is available.

Description

The B48 L is a battery-operated power supply for condenser microphones for applications when a condenser microphone is used but no phantom power from a mixer is available. The additional mini-XLR audio output and the included mini-XLR to mini-XLR connection cable support a direct connection to all AKG body-pack transmitters. The phantom power of the audio input supplies microphones with 48V and meet the P48 standard.

The B48 L is a battery powered one channel phantom power supply for P48 condenser microphones. B48 L is designed to meet the demand of lowest noise level even in operation with high-end condenser microphones for professional applications in theater or touring applications.

Features
  • Ultra low noise floor
  • Supports P48 microphones – 48V / 10mA (max.)
  • Two AA-size batteries support (mic-load-dependent) 10 to 100 hrs operation
  • Low battery and phantom power monitoring
  • XLR and mini-XLR audio output for connection to a recorder or wireless body pack transmitter
  • Mini-XLR (f) – Mini-XLR (f) cable included

Specifications
Audio Frequency Range 20 – 24 000 Hz
Gain 0 dB
Finish Black
Audio Input Connector 1x XLR 3-pin (f) audio input (48V/10mA)
Audio Output Connectors 1x XLR 3-pin (m) audio output
1x mini-XLR (m) audio output
for direct connection to AKG wireless body-pack transmitter
Battery 2x AA size batteries (LR6, HR6, FR6), built in inverse-polarity protection
Noise Level < 2µV
Dimensions (H x W x D) 4.84" (123 mm) x 2.56" (65 mm) x 1.12" (28.5 mm)
Net Weight 0.26 lbs (0.120 kg)
