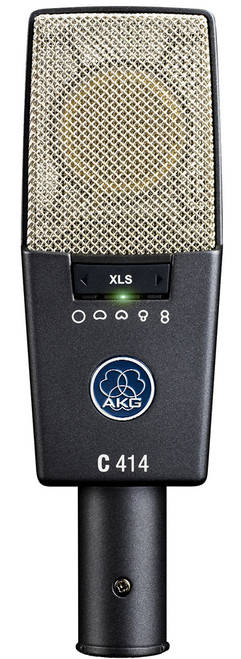

The C414 XLII reference multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. The C414 XLIIs slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.
| Type: | One Inch Large Diaphragm Pressure Gradient Microphone |
|---|---|
| Polar Patterns | Nine, Selectable |
| Open-Circuit Sensitivity | 23 mV/Pa (-33 dBV ± 0.5 dB) |
| Frequency Range | 20 to 20,000 Hz |
| Impedance | ≤ 200 ohms |
| Recommended Load Impedance | ≥ 2200 ohms |
| Bass Cut Filter Slopes | 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz |
| Pre-Attenuation Pads | -6 dB, 112 dB, -18 dB (selectable) |
| Equivalent Noise Level to IEC 60268-4 | 20 dB (0 dB pre-attenuation) |
| Equivalent Noise Level to IEC 60268-4 (A-Weighted) | 6 dB-A (0 dB pre-attenuation) |
| Signal/Noise Ratio re 1 Pa (A-Weighted) | 88 dB |
| Max. SPL for 0.5% THD | 200/400/800/1600 Pa = 140/146/152/158 dB SPL (0/-6/-12/-18 dB pre-attenuation) |
| Dynamic Range | 134 dB min |
| Max. Output Level | 5 V rms (+14 dBV) |
| Environment | Temperature: -10°C to +60°C R.H: 95% (+20°C); 85% (+60°C) |
| Powering | 48 V phantom power to IEC 61938 |
| Current Consumption | Approx. 4.5 mA |
| Connector | 3-pin XLR (pin 2 hot) |
| Dimensions (H x W x D) | 2" (50 mm) x 1.5" (38 mm) x 6.3" (160 mm) |
| Net Weight | 0.66 lbs (0.300 kg) |
