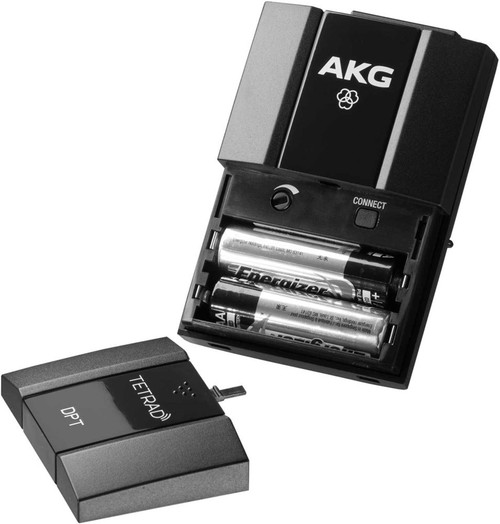

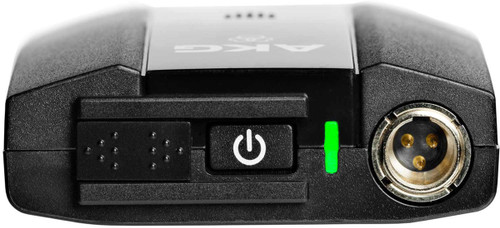

AKG DPTTetrad Professional Digital Pocket Transmitter
AKG DPTTetrad Professional Digital Pocket Transmitter
AKG DPTTetrad Professional Digital Pocket Transmitter
AKG DPTTetrad Professional Digital Pocket Transmitter
By AKG

AKG DPTTetrad Professional Digital Pocket Transmitter

Write a Review
Part #:
3456H00030
Model #:
DPTTETRAD
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The DPTTetrad is a professional digital wireless body-pack transmitter with 24-bit 48kHz audio coding, it provides uncompressed studio-quality transmission and a linear frequency response, perfect for demanding instrumental performances.

Description

The DPTTetrad is a professional digital wireless body-pack transmitter for license free operation with 10mW in Europe and 100mW outside of Europe. With 24-bit 48kHz audio coding, it provides uncompressed studio-quality transmission and a linear frequency response, perfect for demanding instrumental performances. 128-bit AES standard encryption prevents tapping of the audio signal, which makes it a perfect companion for high-security conferences.

The DPTTetrad provides digital diversity and an out-of-range warning function to ensure a stable and drop-free signal within the entire operating area. Its input is fully adjustable between mic and line level for noise- and distortion-free signal reproduction from loud guitars or gentle microphone signals.

Features
  • Belt clip upside/down
  • Easy setup functions designed for less experienced operators
  • Auto power off
  • Low battery warning
  • Adjustable input level (mic-guitar)
  • Integrated screw driver for gain control
  • 5V phantom power
  • Recommended microphones: C 111 L, CK97 C/L, HC577 L and CK77 WR-L

Specifications
Audio
Signal to Noise 120 dB-A
Pocket Transmitter
Gain Control 0 (2,2 Vrms) - 30 dB (70 mVrms) Max Input-Level: < 3Vrms (Gain = min)
Battery 1
Battery Type LR6 AA Alkaline Battery
Number of Batteries 2
Operating Time 6 h
Battery 2
Battery Type HR 6 AA (NiHM) Rechargeable Battery
Number of Batteries 2
Operating Time 7 h
Radio
RF Output 10 mW EU / 100 mW NON-EU
Dimensions (H x W x D) 2.52" (64 mm) x 0.87" (22 mm) x 3.62" (92 mm)
Weight 0.155 lbs (0.070 kg)

DOCUMENTS

In The Box
  • (1) DPTTetrad Professional Digital Pocket Transmitter
  • (1) C111 LP High-Performance Lightweight Ear Hook Microphone
  • (1) MKG L Instrument Cable
  • (1) AA Batteries

Related Products

Sold Out

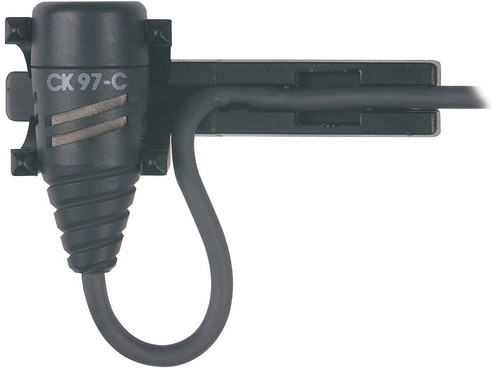

AKG CK97 C/L Reference Lavalier Microphone (Discontinued)

AKG CK97 C/L Reference Lavalier Microphone (Discontinued)

The CK97 C/L is a reference condenser lavalier microphone with a consistent cardioid pattern. It ensures minimum ambience pickup and high gain before feedback in live-sound applications, including...
MSRP: $249.00
$199.00

Usually arrives in 5-9 business days.

MSRP: $249.00
$199.00
AKG C111 LP Lightweight Ear Hook Microphone

AKG C111 LP Lightweight Ear Hook Microphone

The C111LP is a stainless steel & lightweight ear hook microphone ideal for presentations and theater applications. Its ultra light construction and design ensures robustness and reliability,...
$165.00

Usually arrives in 5-9 business days.

$165.00
Add to Cart The item has been added
Sold Out

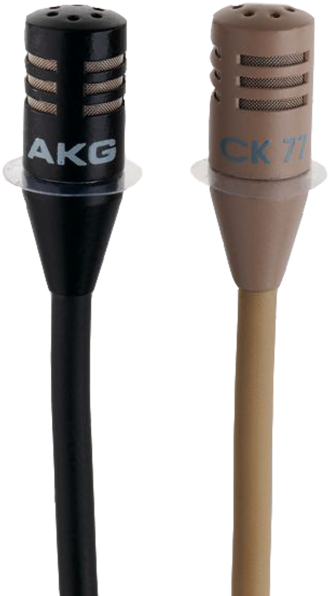

AKG CK77WR Professional Lavalier Microphone (Discontinued)
