AKG P420 High-Performance Dual-Capsule True Condenser Microphone (Discontinued)

Description

AKG P420 High-Performance Dual-Capsule True Condenser Microphone

The P420 is a multi-pattern large diaphragm true condenser microphone for demanding project studio recording applications. Offering high sensitivity and 155dB maximum SPL, the P420 delivers a warm, transparent sound quality perfectly suited for ensemble recording, grand piano, woodwind and brass instruments, as well as drums and percussion. With three selectable polar patterns – cardioid, omnidirectional or figure 8 – it is an ideal tool for stereo miking techniques and ambient recording.

Features

• For voice, instruments, drums and cabs
• Three polar patterns for versatility
• -20 dB pad impedes distortion
• Low-cut filter suppresses bass buildup
• Shockmount inhibits vibration noise
• 1" gold-sputtered dual large diaphragms
• Handles extremely loud sound sources
• Includes metal carrying case
• XLR output for hookup to mic preamp
• Operates on 48V phantom power

Specifications

General
Frequency Response	20 Hz to 20 kHz
Equivalent Noise Level	15 dB-A
Sensitivity	(Cardioid) 28 mV/Pa (-31 dBV)
Signal to Noise	79 dB-A
Preattenuation Pad	-20 dB
Bass Cut Filter	300 - 12 dB/octave Hz
Electrical Impedance
Recommended Load Impedance	>= 1000 Ohms
Polar Patterns	Cardioid Omnidirectional
Powering Interface
Voltage	44 to 52 V
Current
Audio Output
Type	Balanced XLR
Gender	Male
Contacts	3-Pin
Dimensions (Dia x L)	2.12" (54 mm) x 6.49" (165 mm)
Net Weight	1.17 lbs (0.530 kg)

DOCUMENTS

In The Box

• (1) P420 Microphone

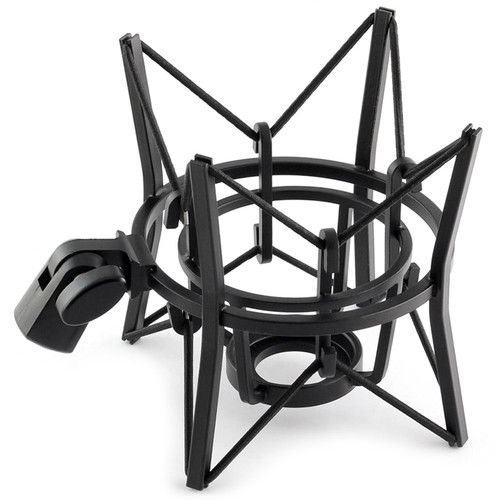

• (1) Spider Shock Mount
• (1) Metal Carrying Case
