AKG Perception Wireless 45 Instrumental Set

The Perception Wireless high performance Instrumental Set delivers brilliant sound for an exceptionally wide range of applications. The included PT45 body-pack transmitter is the smallest and lightest transmitter in its class. It provides a professional three-pin mini XLR connector and can be used with the included guitar cable or one of the optionally available AKG miniature microphones.

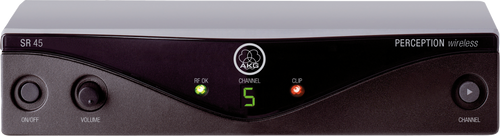

SR 45 Stationary Receiver:

• Carrier frequency range: 500 - 560 MHz
• Modulation: FM
• Audio bandwidth: 40 - 20,000 Hz
• T.H.D. at 1 kHz: typ. 0.8%
• Signal/noise ratio: typ. 105 dB(A)
• Squelch threshold: 100 to -70 dBm adjustable
• Audio outputs: Balanced XLR and unbalanced 1/4" (6.3 mm) jack: adjustable from mic to line level. Output level at rated deviation: 500 mV RMS
• Dimensions: 7.87" x 7.48" x 1.73", (200 x 190 x 44 mm)
• Net weight: 12.69 oz, (360 g)

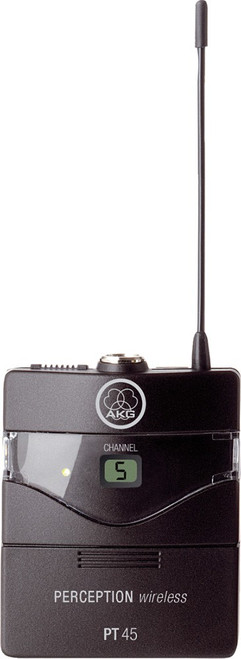

PT 45 Bodypack Transmitter:

• Carrier frequency range: 500 - 560 MHz
• Modulation: FM
• Audio bandwidth: 40 - 20,000 Hz
• T.H.D. at 1 kHz: typ. 0.8%
• Signal/noise ratio: typ. 105 dB(A)
• RF output: 10 mW
• Power requirement: 1x 1.5 V AA size battery
• Battery life: 10 hours
• Dimensions: 2.36 " x 2.91" x 1.18", (60 x 74 x 30 mm)
• Net weight: 2.11 oz, (60 g)

User Manual

Quick Setup Guide

Frequency Chart

Service Documentation

• (1) SR45 Receiver
• (1) PT45 Body-Pack Transmitter
• (1) MKG L Instrument Cable
• (1) Universal Power Supply with US
